Removal Procedure

Remove the console trim Plate. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE in Instrument Panel, Gages and Console.
If equipped with RPO Code (T1A), remove the anti-theft plate and tamper proof fastener from the shifter using the J 43146 .

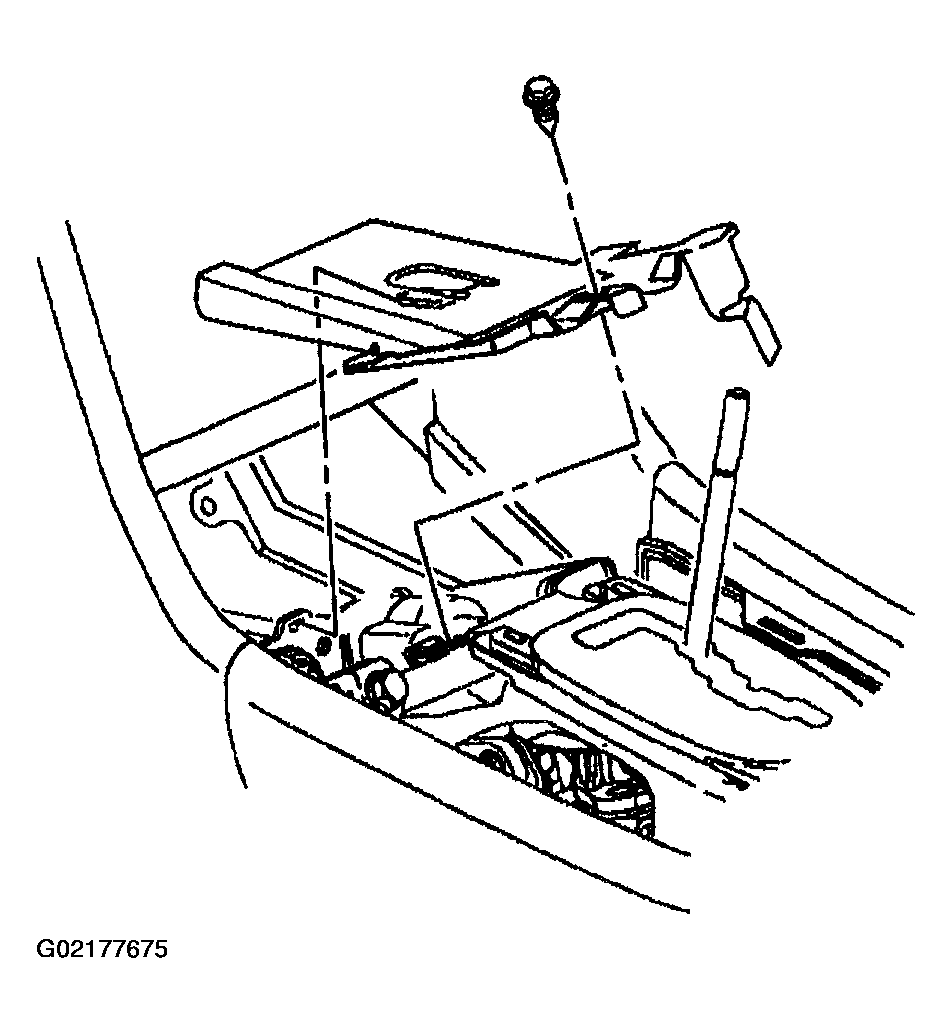

Fig 1: Removing Console Trim Plate & Fastener
Courtesy of GENERAL MOTORS CORP.
Disconnect the automatic transmission shift lock actuator wire harness connector, from the automatic transmission shift lock actuator solenoid.

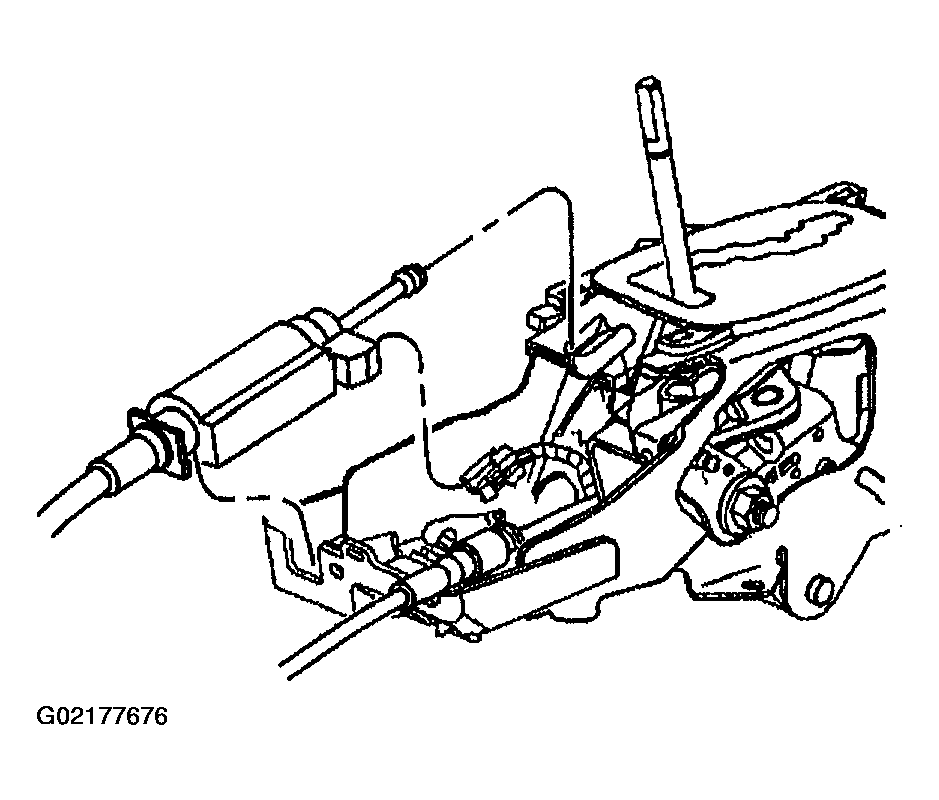

Fig 2: Disconnecting Automatic Transmission Shift Lock Actuator Wire Harness Connector
Courtesy of GENERAL MOTORS CORP.
Disengage the locking tab on the park lock cable and lift the cable out of the slot in the shifter.
Unhook the park lock cable from the park lock cam on the shifter.
Lower steering column Refer to STEERING COLUMN REPLACEMENT in Steering Wheel and Column.
Turn the ignition switch to the run position.
Depress the locking tab (1) on the cable and pull the cable out of the back of the ignition switch. The locking tab is located on the bottom of the ignition switch facing in the 6 o'clock position

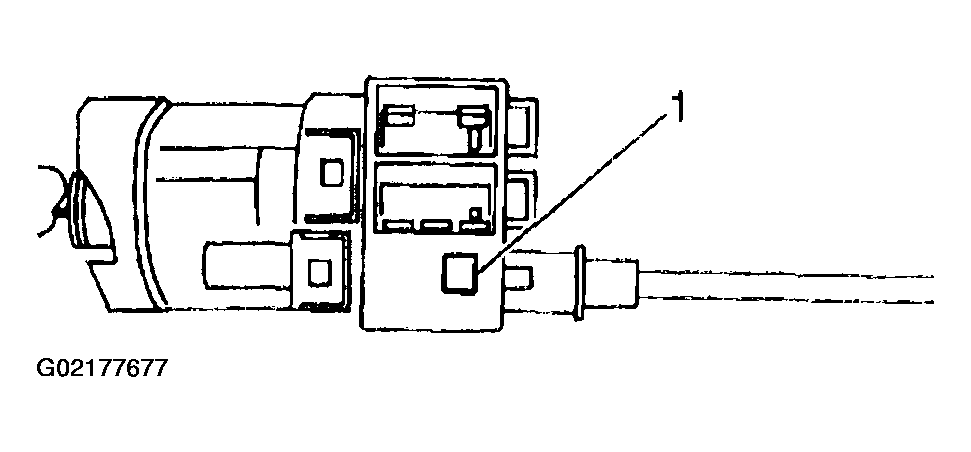

Fig 3: Locating Park Lock Cable Locking Tab
Courtesy of GENERAL MOTORS CORP.
Remove the park lock cable from the vehicle.

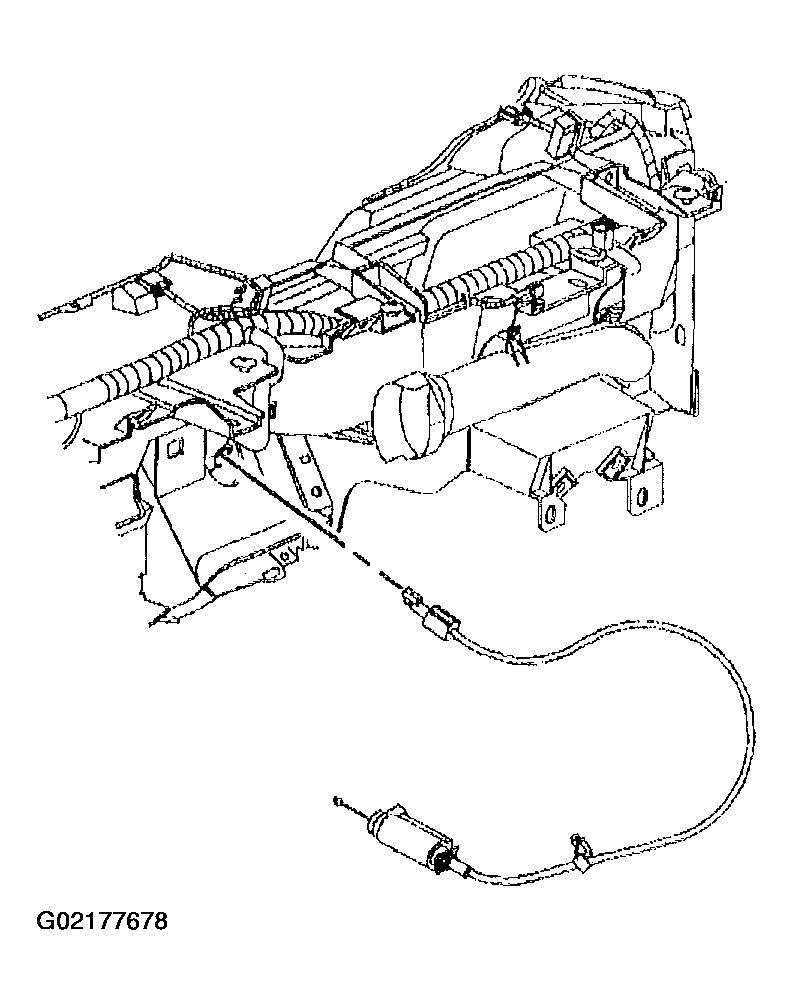

Fig 4: Removing Park Lock Cable
Courtesy of GENERAL MOTORS CORP.
