Installation Procedure

  1. Turn the ignition switch to the run position.

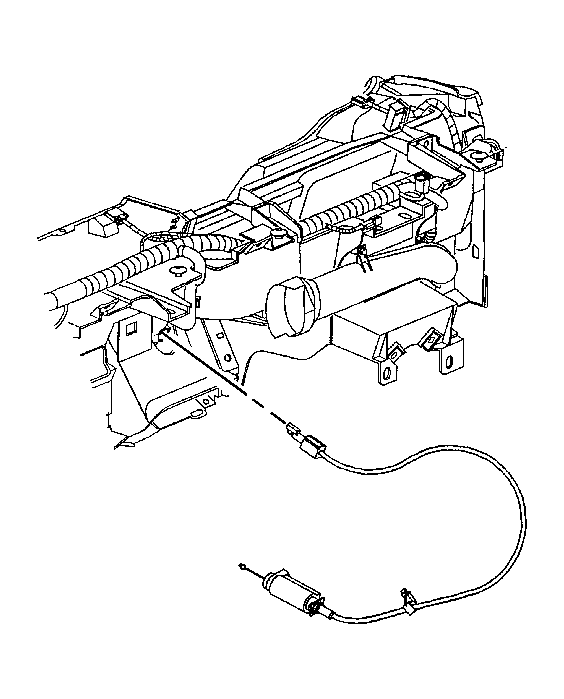

    2. Fig 1: View of Park Lock Cable
    GM291738Courtesy of GENERAL MOTORS CORP.
  2. Install the park lock cable into the back of the I/P.

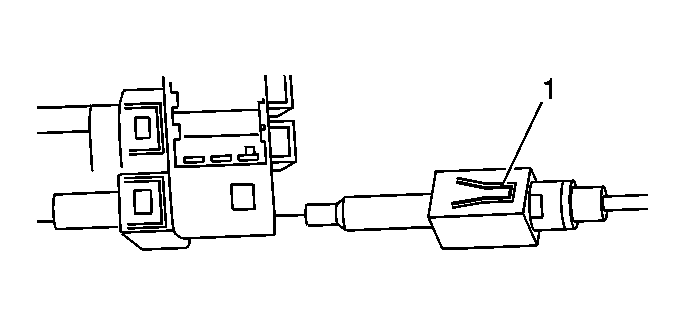

    3. Fig 2: Identifying Park Lock Cable Locking Tab
    GM339237Courtesy of GENERAL MOTORS CORP.
  3. Align the park lock cable locking tab (1) with its slot in the ignition switch and snap the cable into the switch. The locking tab should be facing downward at the 6 o'clock position.
  4. Route the park lock cable back to its original position.
    5. Fig 3: View of Automatic Transmission Shift Lock Actuator Solenoid
    GM291741Courtesy of GENERAL MOTORS CORP.
  5. Connect the park lock cable to the park lock cam on the shifter and slide the cable housing into the shifter.

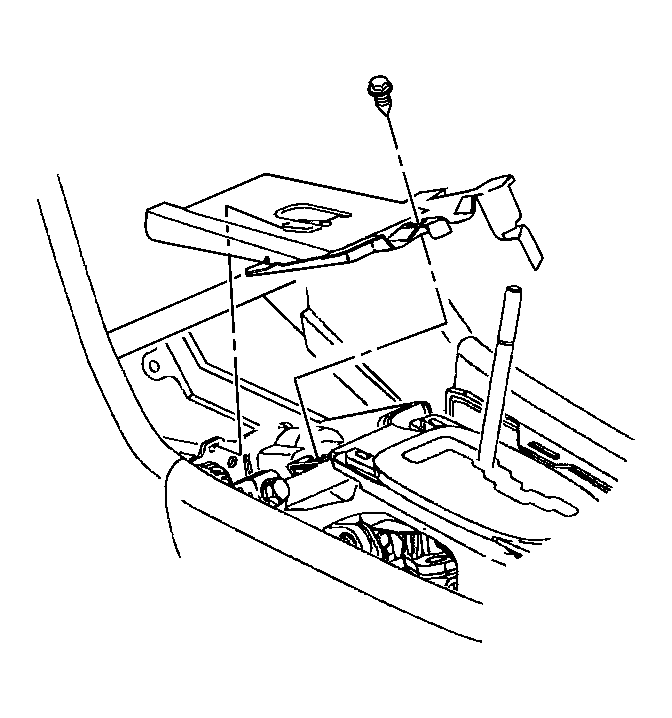

    6. Fig 4: View of Anti-theft Plate
    GM301685Courtesy of GENERAL MOTORS CORP.
  6. If equipped with RPO Code (T1A), install the anti-theft plate and tamper proof fastener to the shifter using the J 43146  . See Special Tools and Equipment .
  7. Install the console trim plate (1). Refer to Trim Plate Replacement - Console in Instrument Panel, Gages and Console.
