Body Control System Schematics

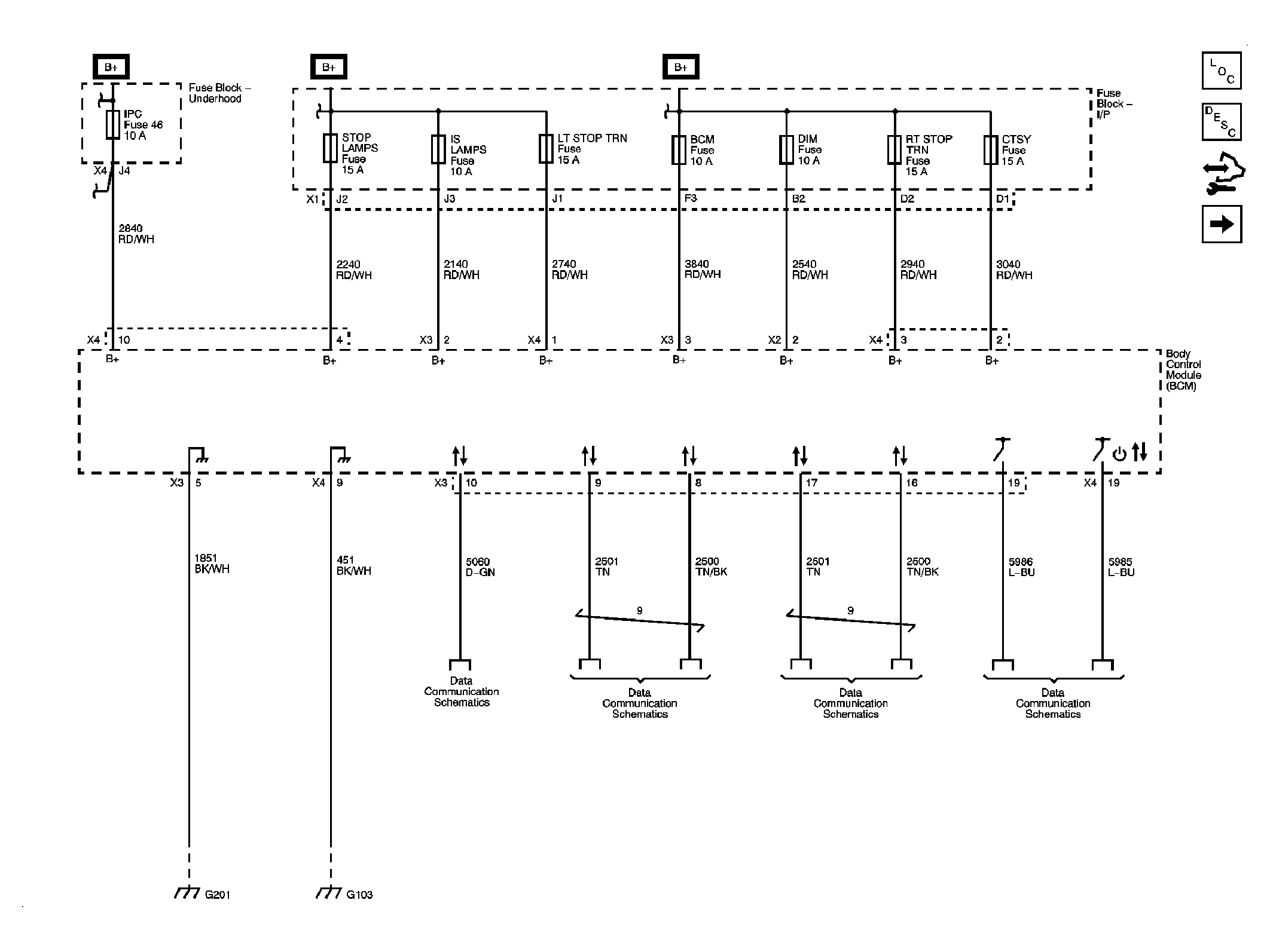

Fig 1: Module Power, Ground, and Serial Data
GM2075564Courtesy of GENERAL MOTORS CORP.

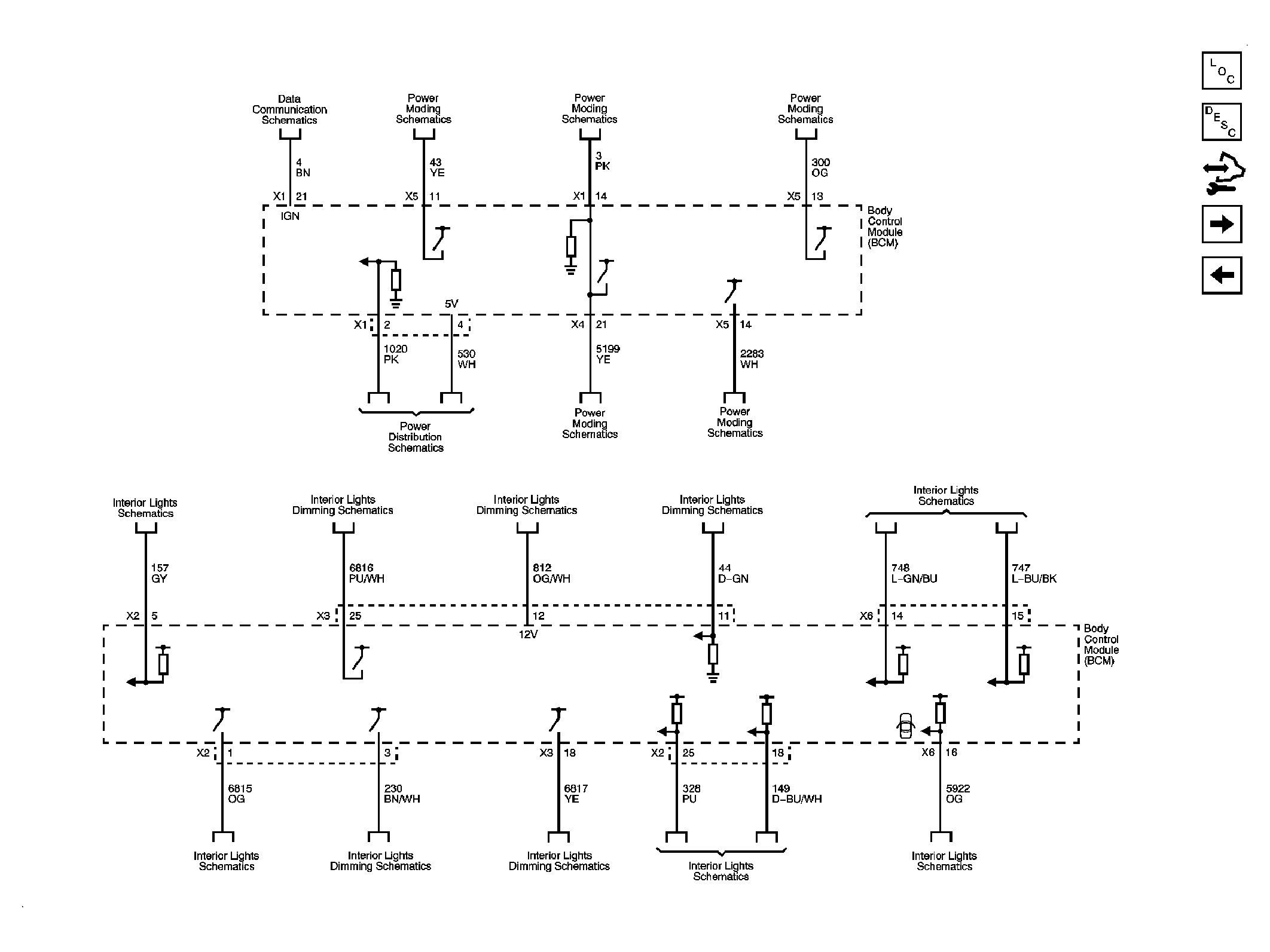

Fig 2: Power Moding and Interior Light References
GM2075566Courtesy of GENERAL MOTORS CORP.

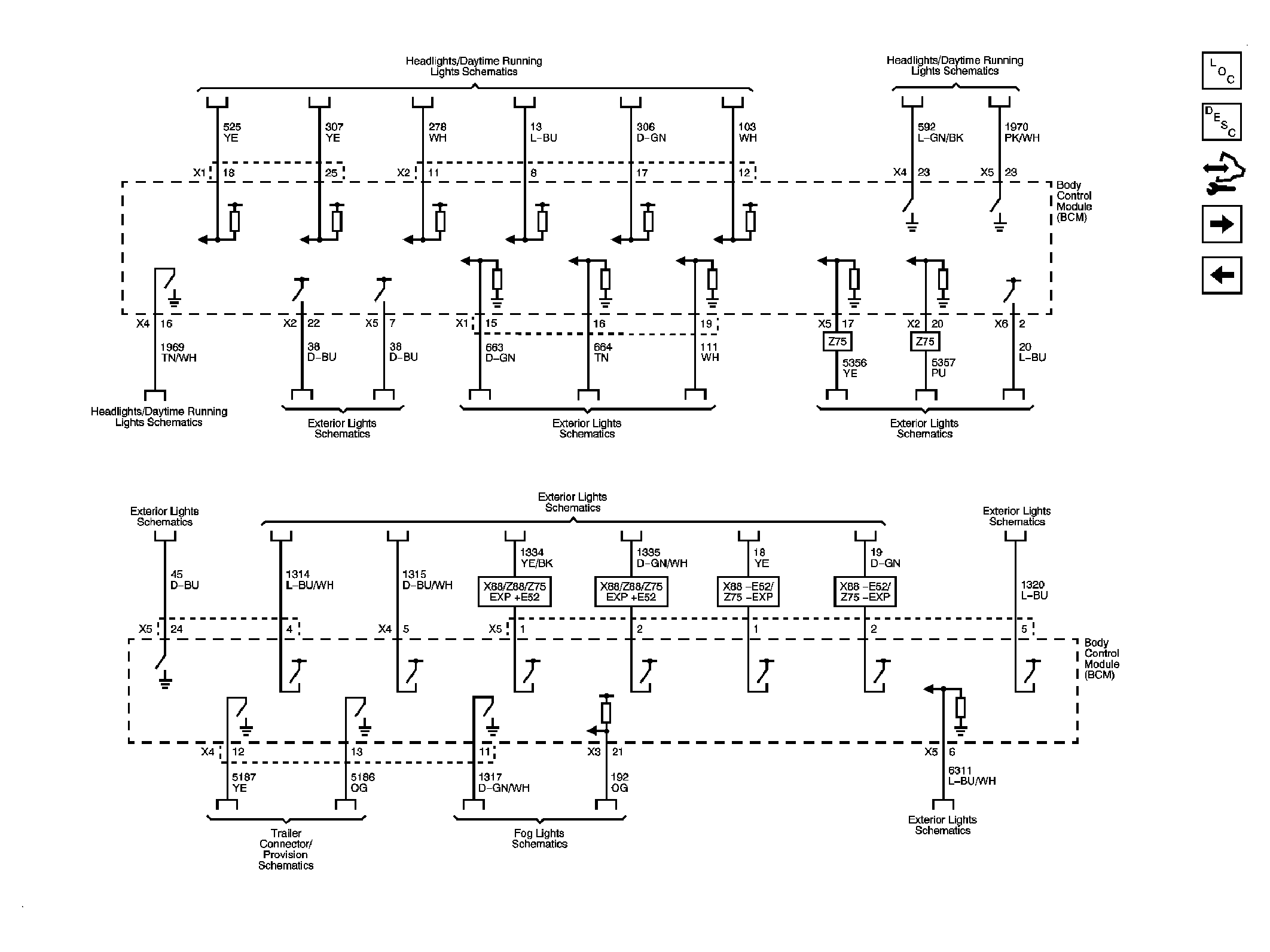

Fig 3: Exterior Light References
GM2075568Courtesy of GENERAL MOTORS CORP.

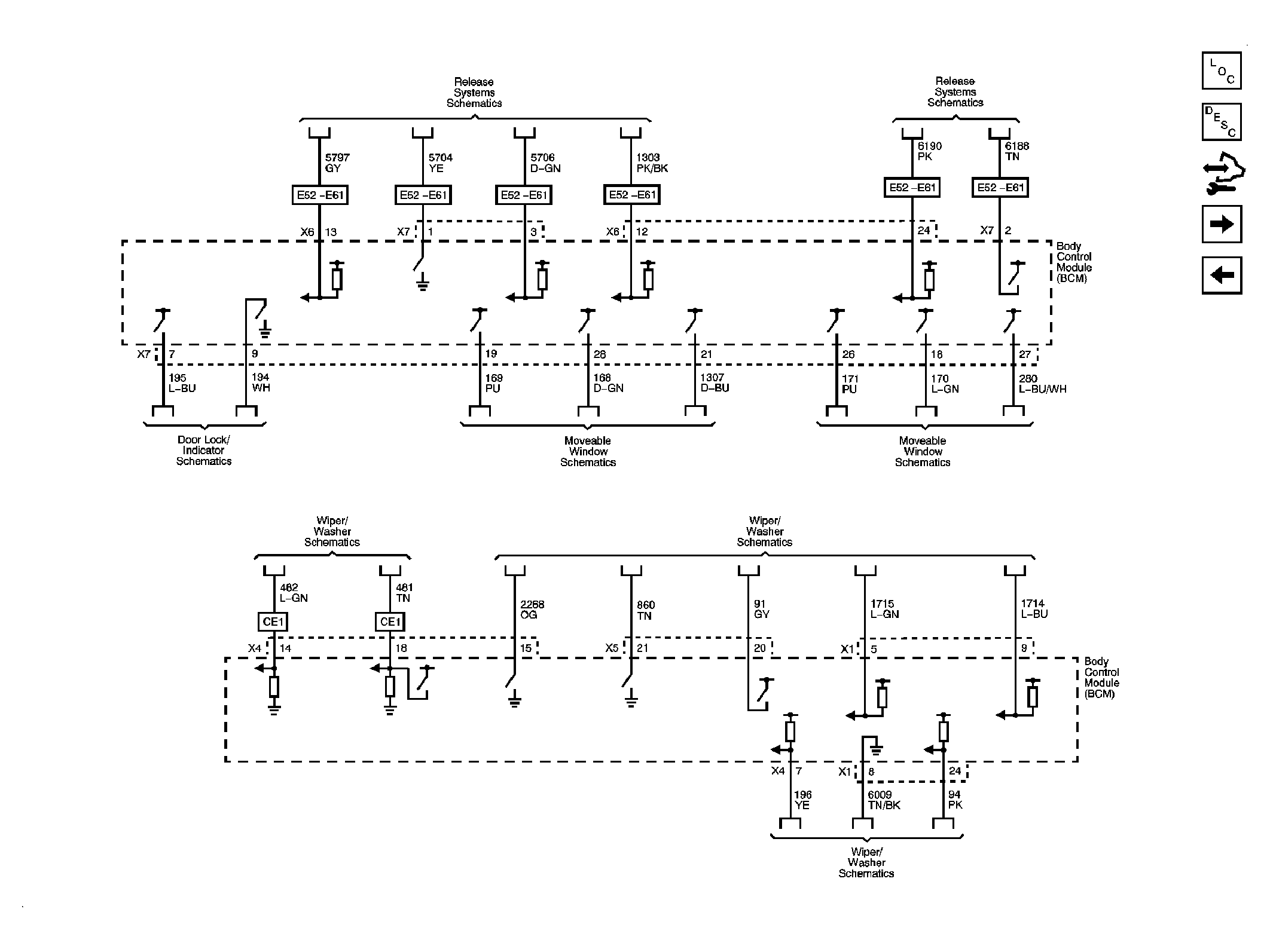

Fig 4: Vehicle Access and Wiper References
GM2075571Courtesy of GENERAL MOTORS CORP.

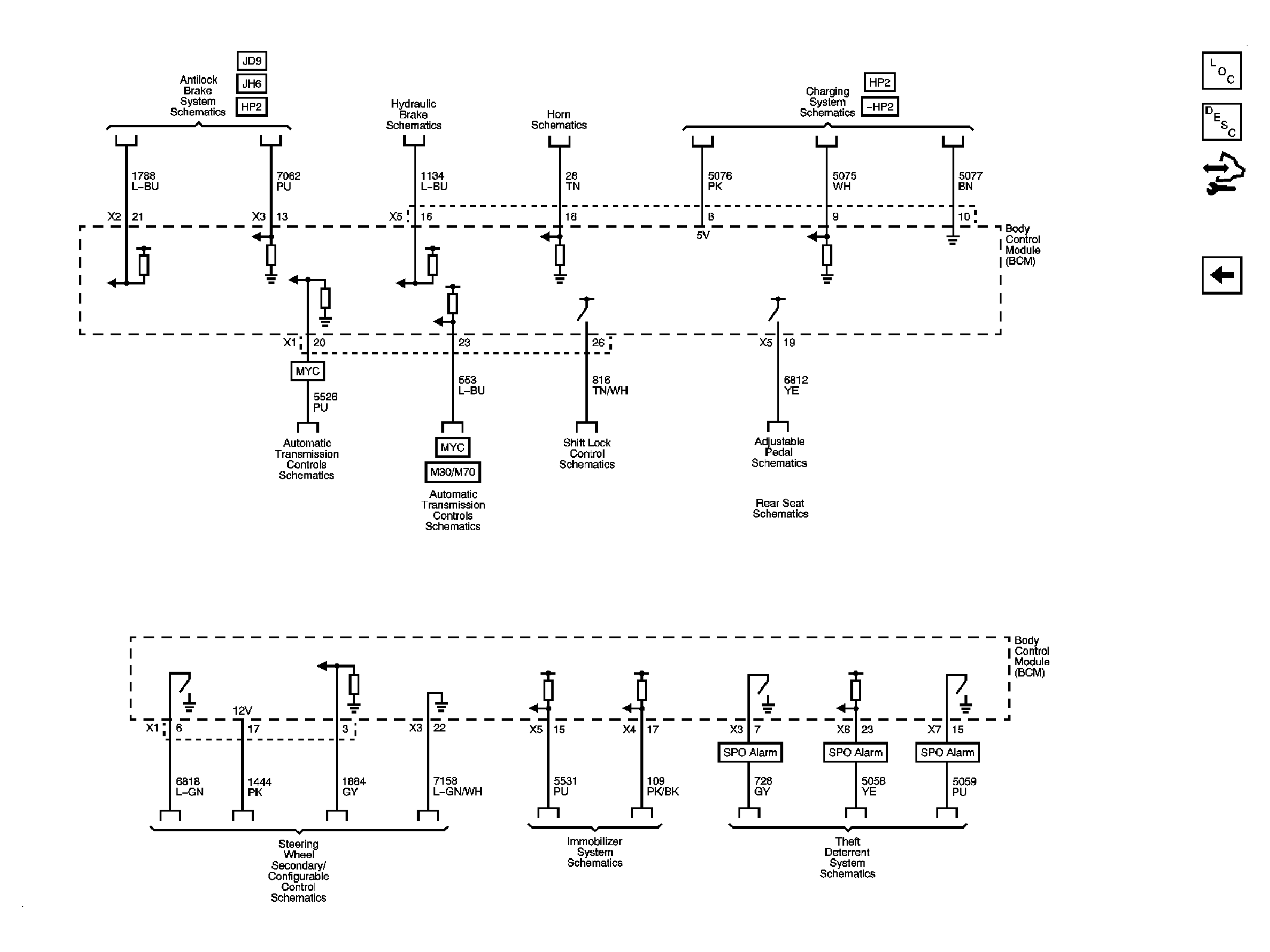

Fig 5: Brake, Horn, Transmission, Theft, and Secondary Configurable Control References
GM2075574Courtesy of GENERAL MOTORS CORP.
