Body Control Module Replacement

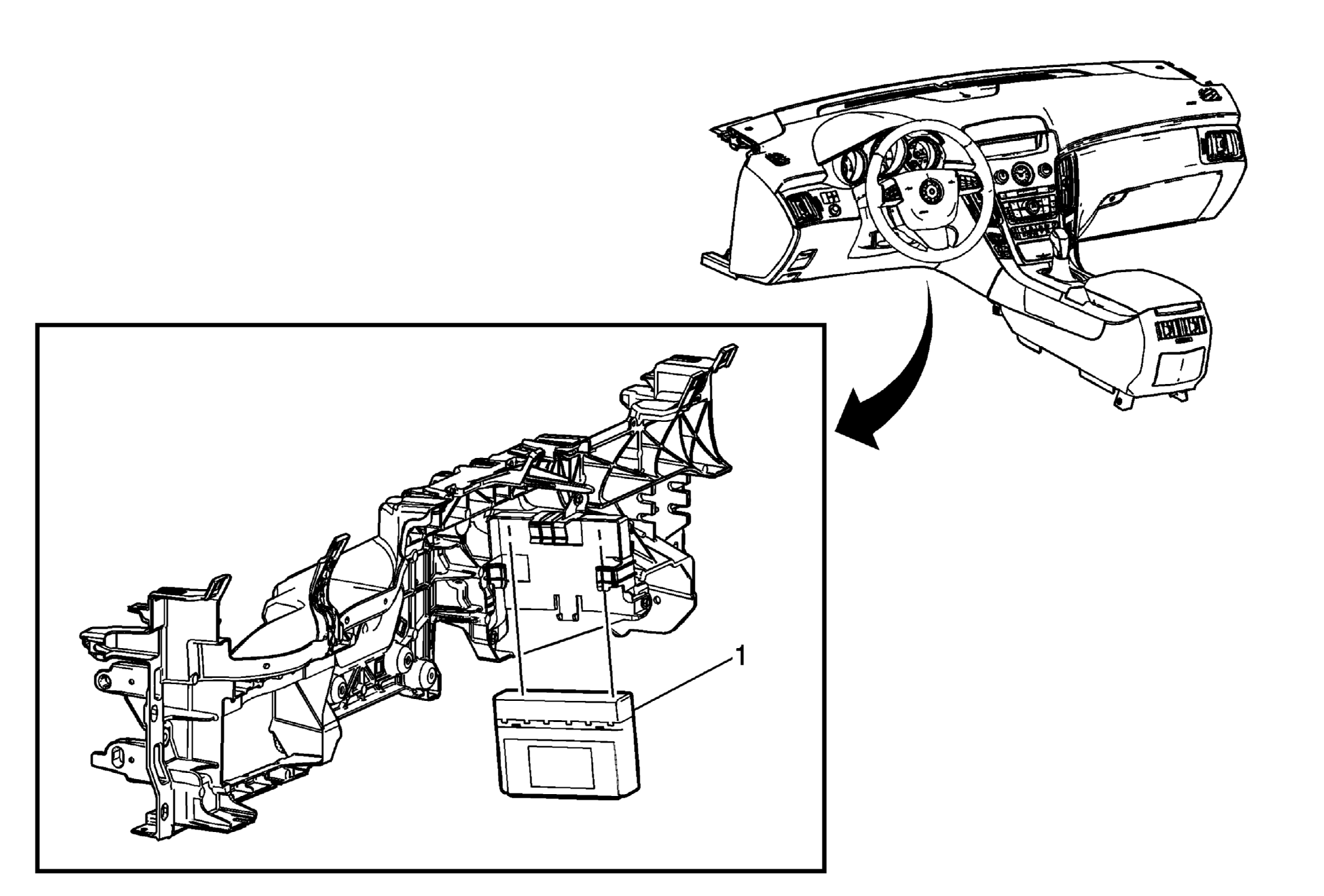

Fig 1: Body Control Module
GM1968574Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel (I/P) insulator. Refer to Instrument Panel Insulator Replacement - Left Side (Left Hand Drive) or Instrument Panel Insulator Replacement - Left Side (Right Hand Drive) .
  2. Remove the driver knee bolster bracket. Refer to Driver Knee Bolster Bracket Replacement (Left Hand Drive) or Driver Knee Bolster Bracket Replacement (Right Hand Drive) .
1 Body Control Module (BCM)

Procedure

  1. Disconnect the electrical connectors.
  2. Refer to Control Module References for programming and set-up information.
