Data Communication Schematics

Fig 1: Low Speed GMLAN

GM2219607

Courtesy of GENERAL MOTORS CORP.

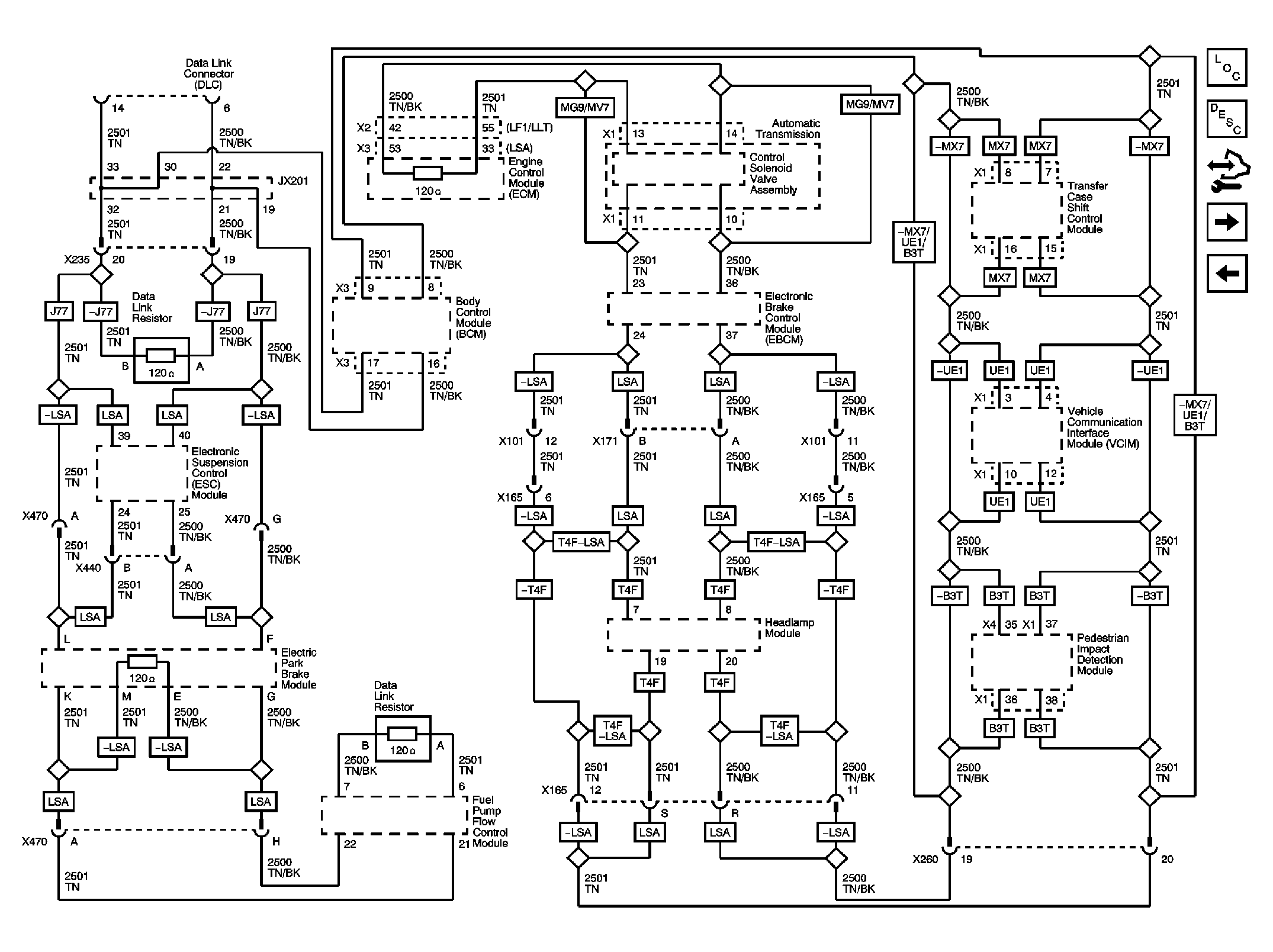

Fig 2: High Speed GMLAN

GM2219610

Courtesy of GENERAL MOTORS CORP.

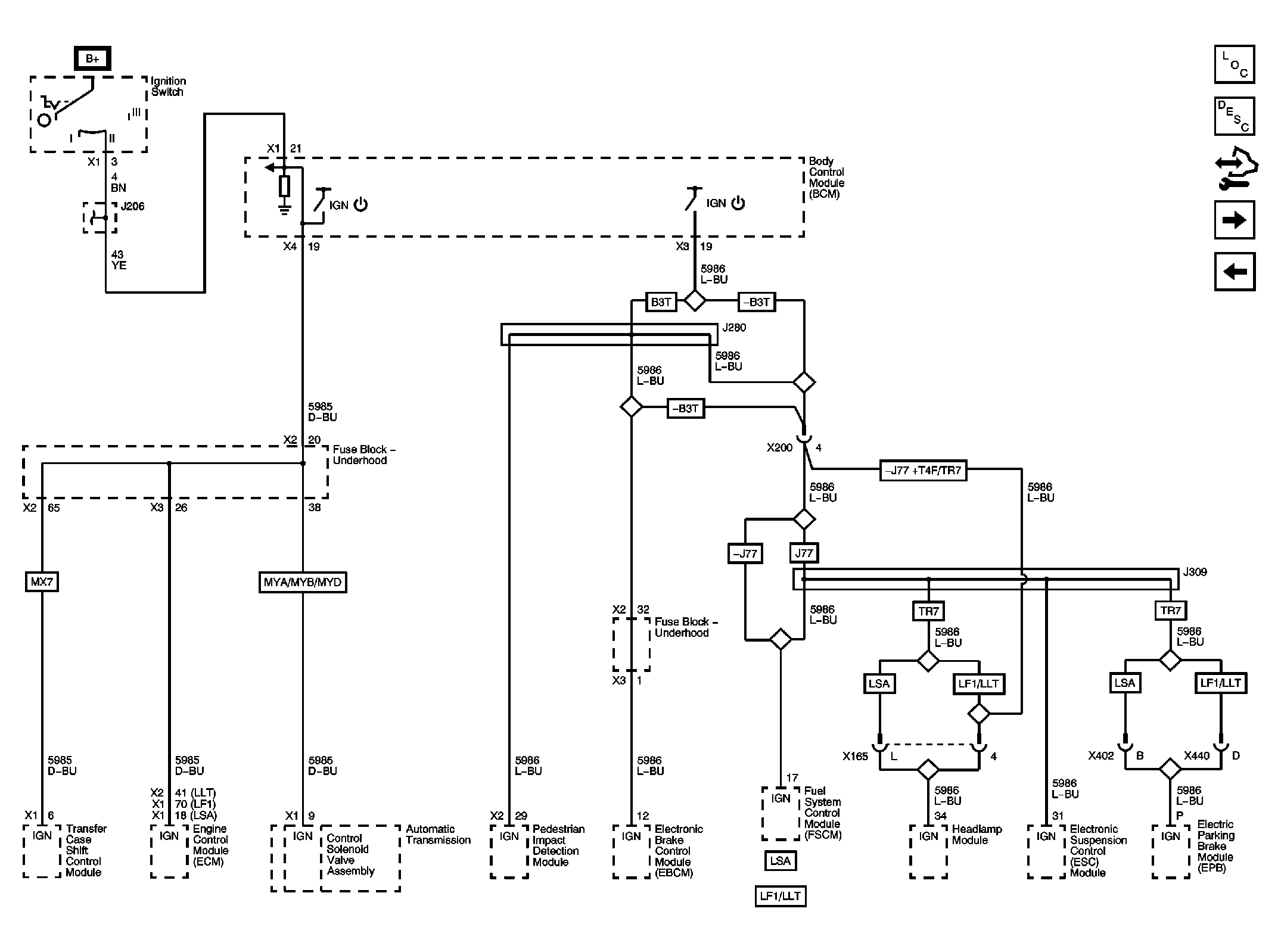

Fig 3: Communications Enable

GM2219615

Courtesy of GENERAL MOTORS CORP.
