Body Control System Schematics

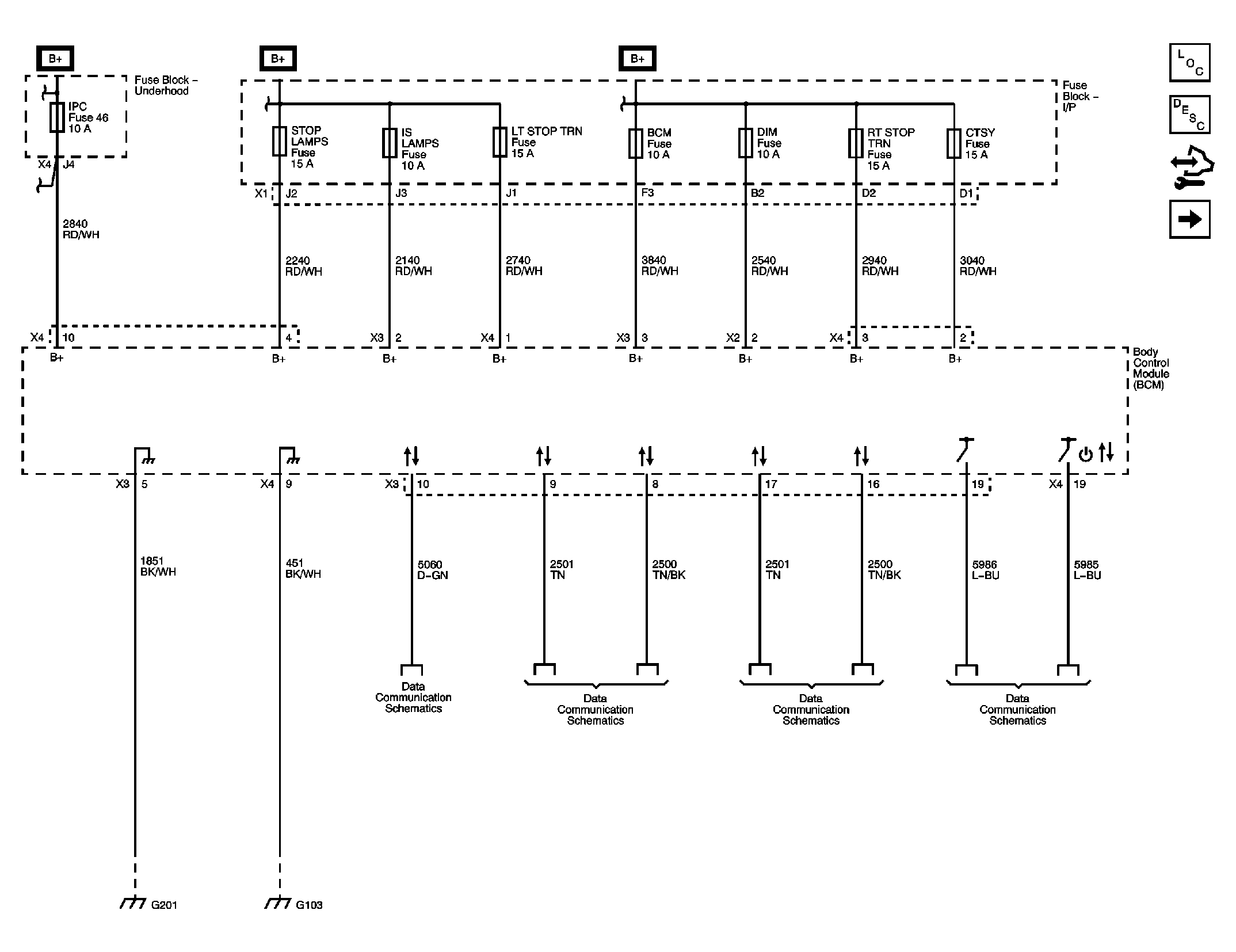

Fig 1: Module Power, Ground, and Serial Data
GM2241678Courtesy of GENERAL MOTORS CORP.

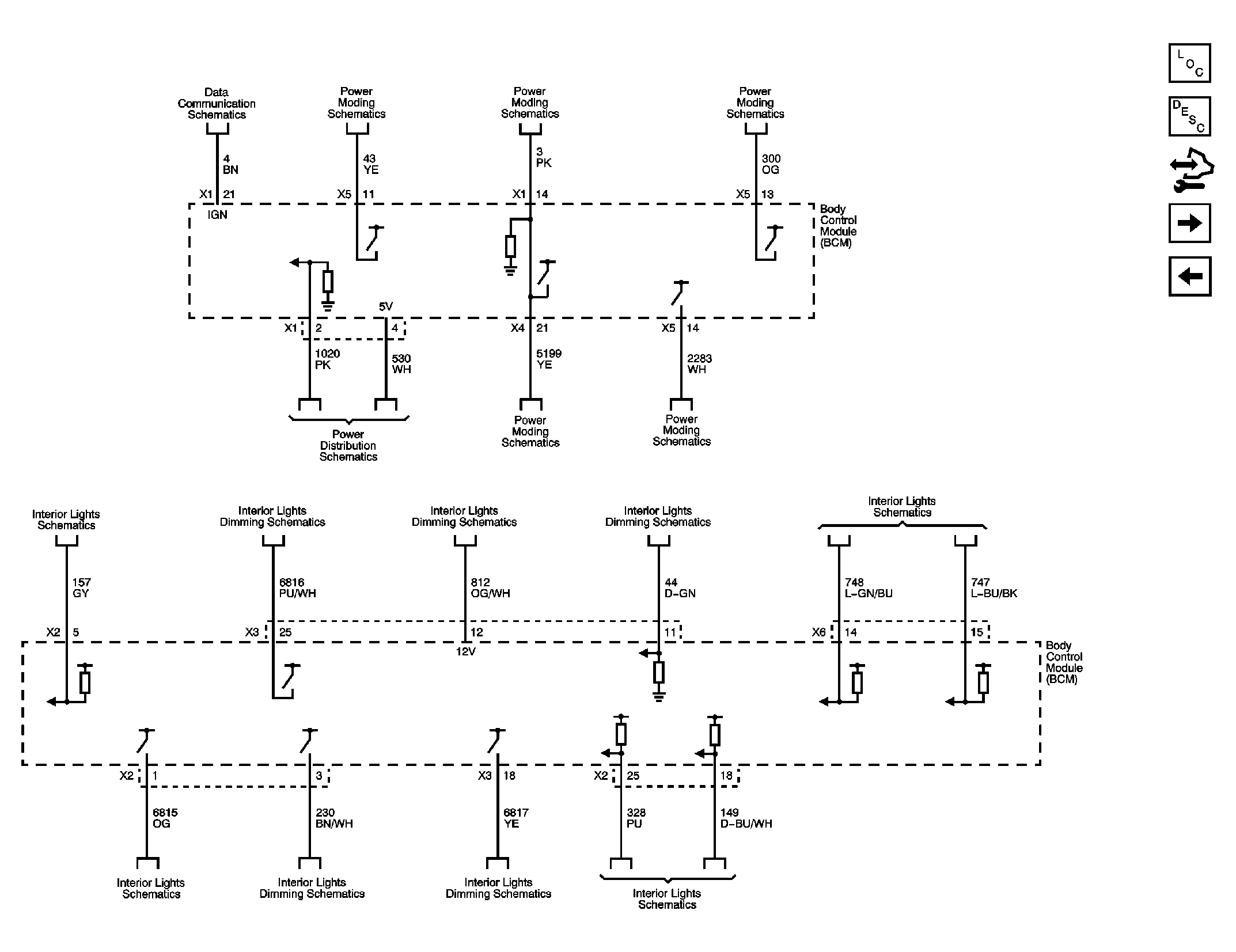

Fig 2: Power Moding and Interior Light References
GM2241667Courtesy of GENERAL MOTORS CORP.

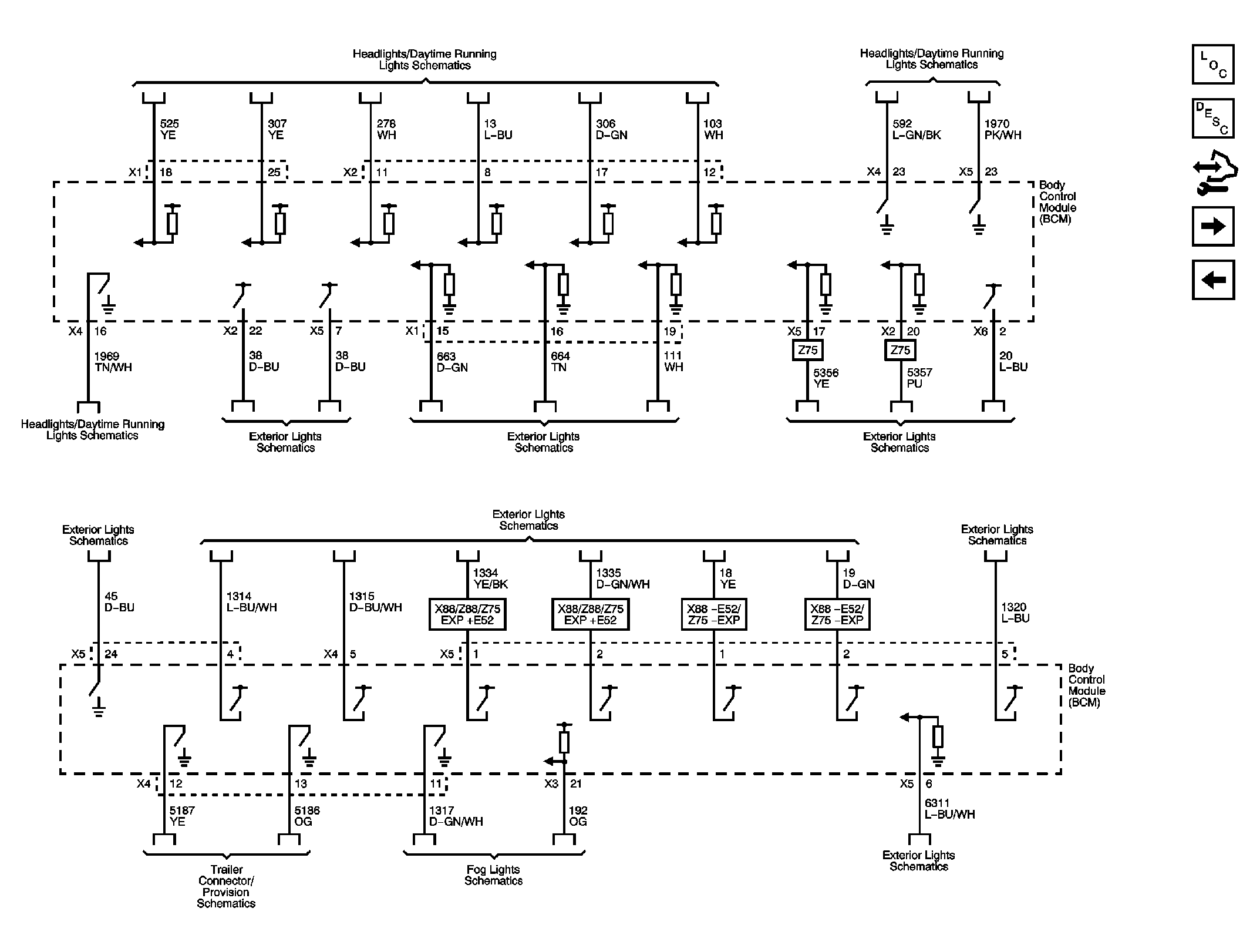

Fig 3: Exterior Light References
GM2241669Courtesy of GENERAL MOTORS CORP.

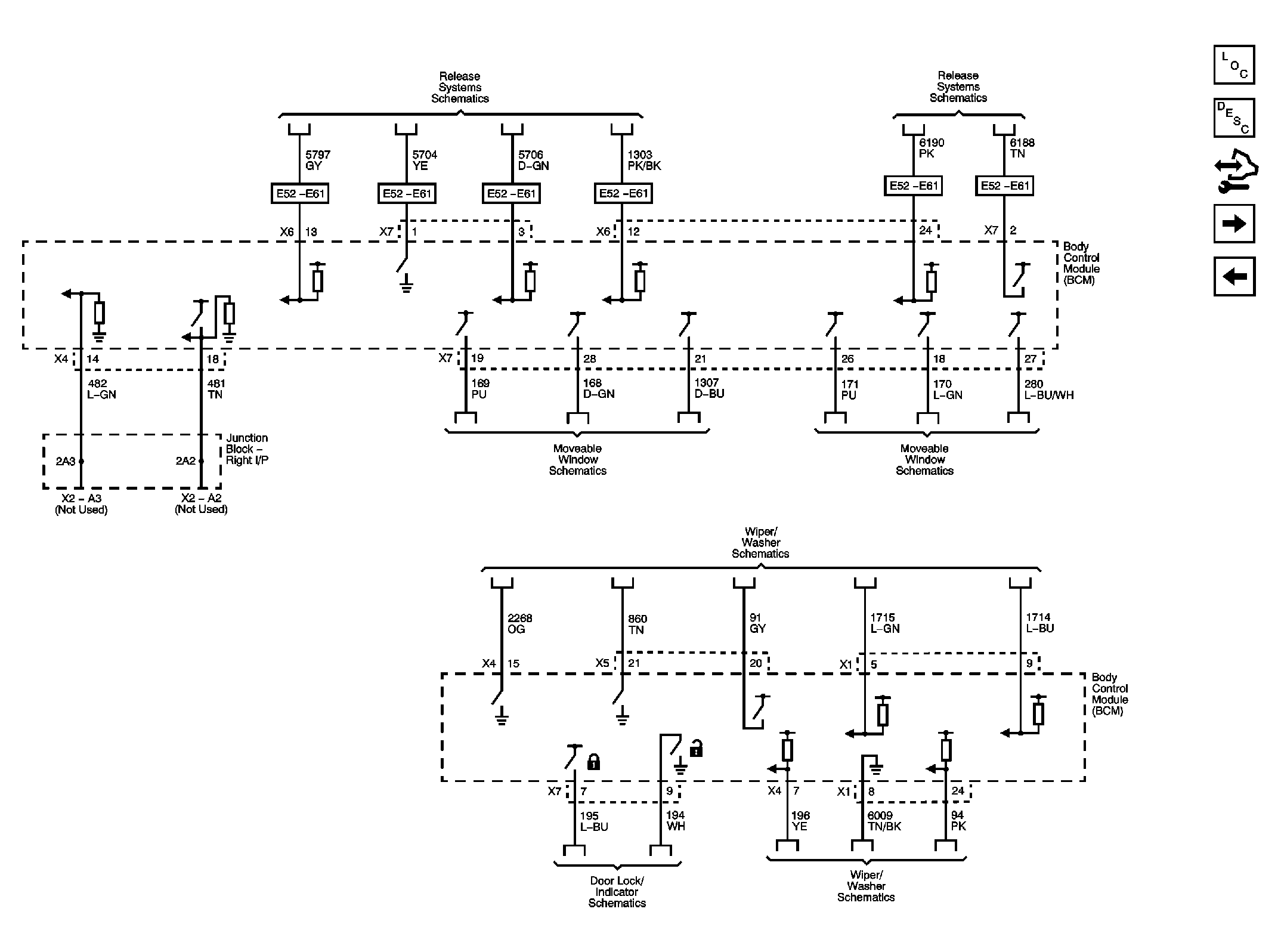

Fig 4: Vehicle Access and Wiper References
GM2241671Courtesy of GENERAL MOTORS CORP.

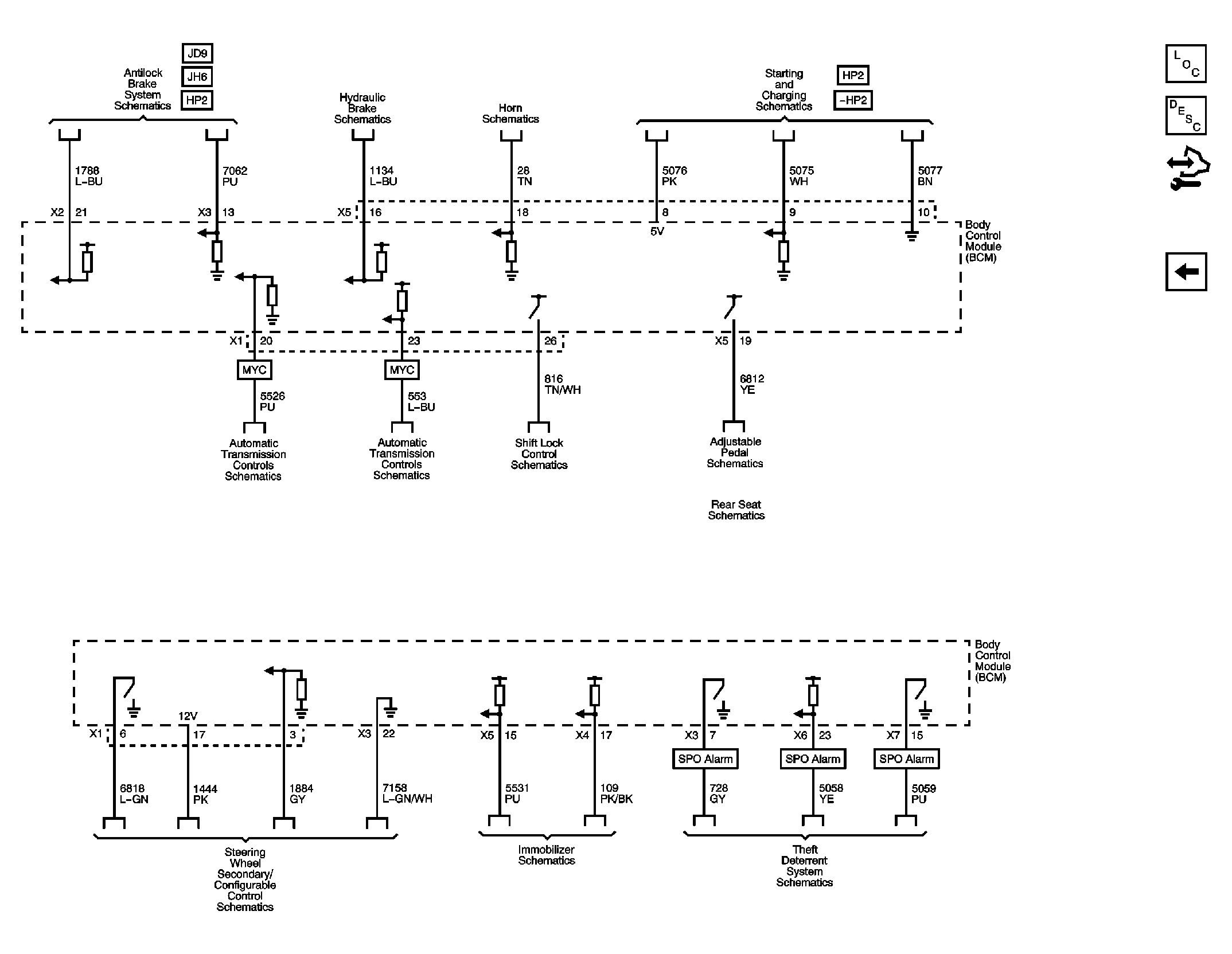

Fig 5: Brake, Horn, Transmission, Theft, and Secondary/Configurable Control References
GM2241672Courtesy of GENERAL MOTORS CORP.
