Escalade EXT
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communications System
>>
Schematic Wiring Diagrams
>>
Data Communication Wiring Schematics
>>
Serial Data Gateway Module (HP2) Wiring Schematics
Serial Data Gateway Module (HP2) Wiring Schematics

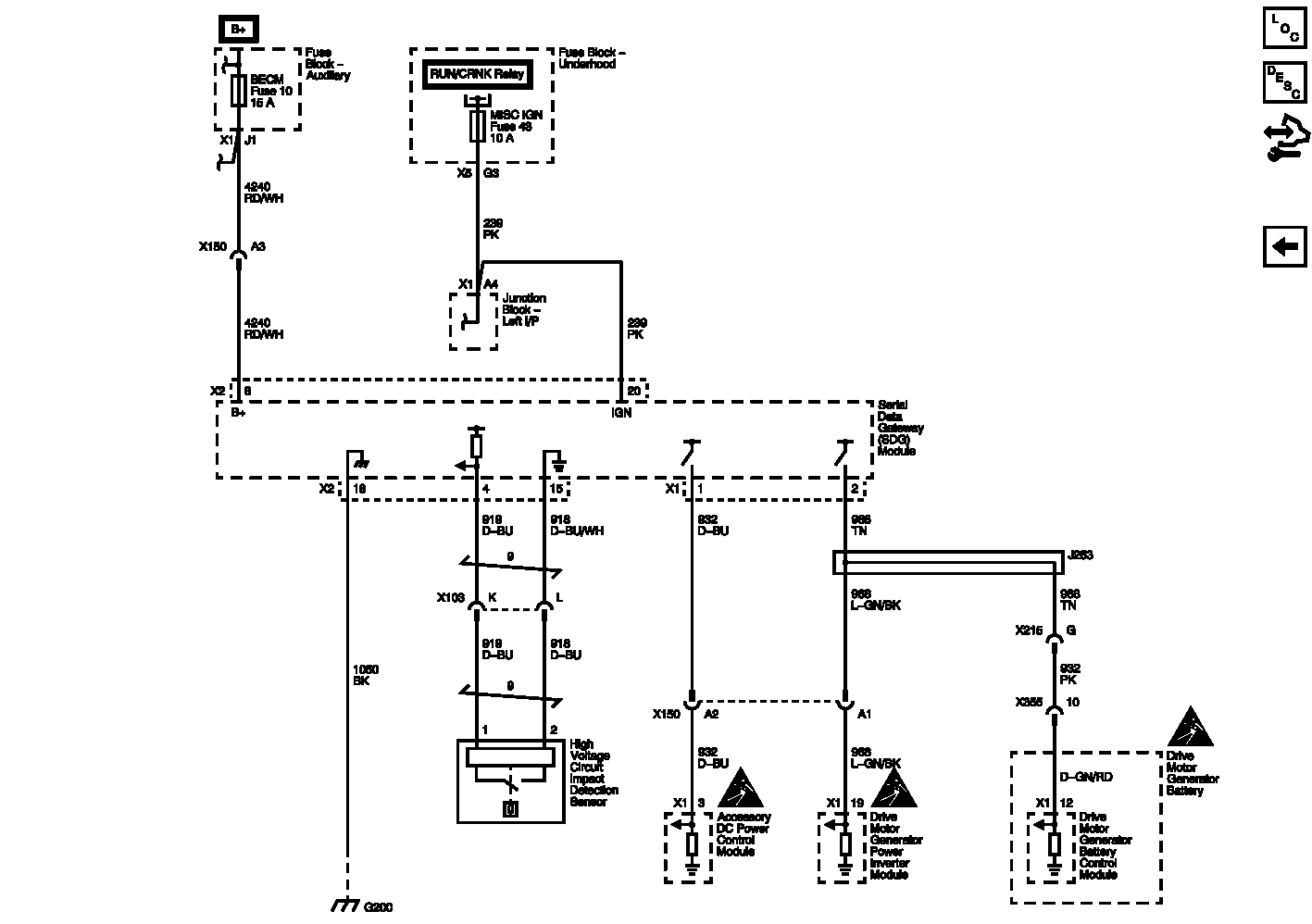

Fig 1: Serial Data Gateway Module (HP2) Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
