Home >> Chevrolet >> 1985 >> Nova CL, Automatic >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Adjustments >> Air Gap

Air Gap

Remove distributor cap. Check air gap between pick-up coil and signal rotor, using a non-magnetic feeler gauge. Air gap should be .007-.015" (.2-.4 mm).

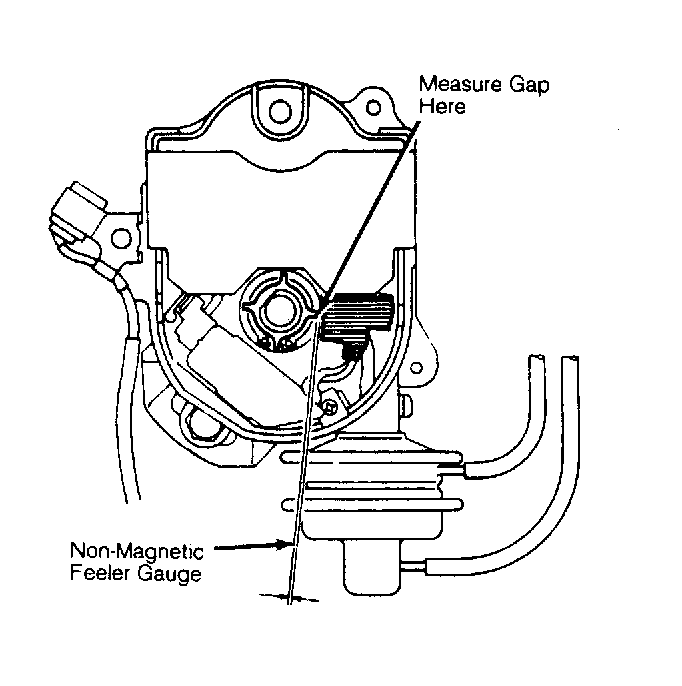

Fig 1: Checking Air Gap
G5444
