Home >> Chevrolet >> 1987 >> Spectrum Express >> Repair and Diagnosis >> Engine Performance >> System >> Feedback Carburetor System >> Diagnosis & Testing >> Chart 1

Chart 1

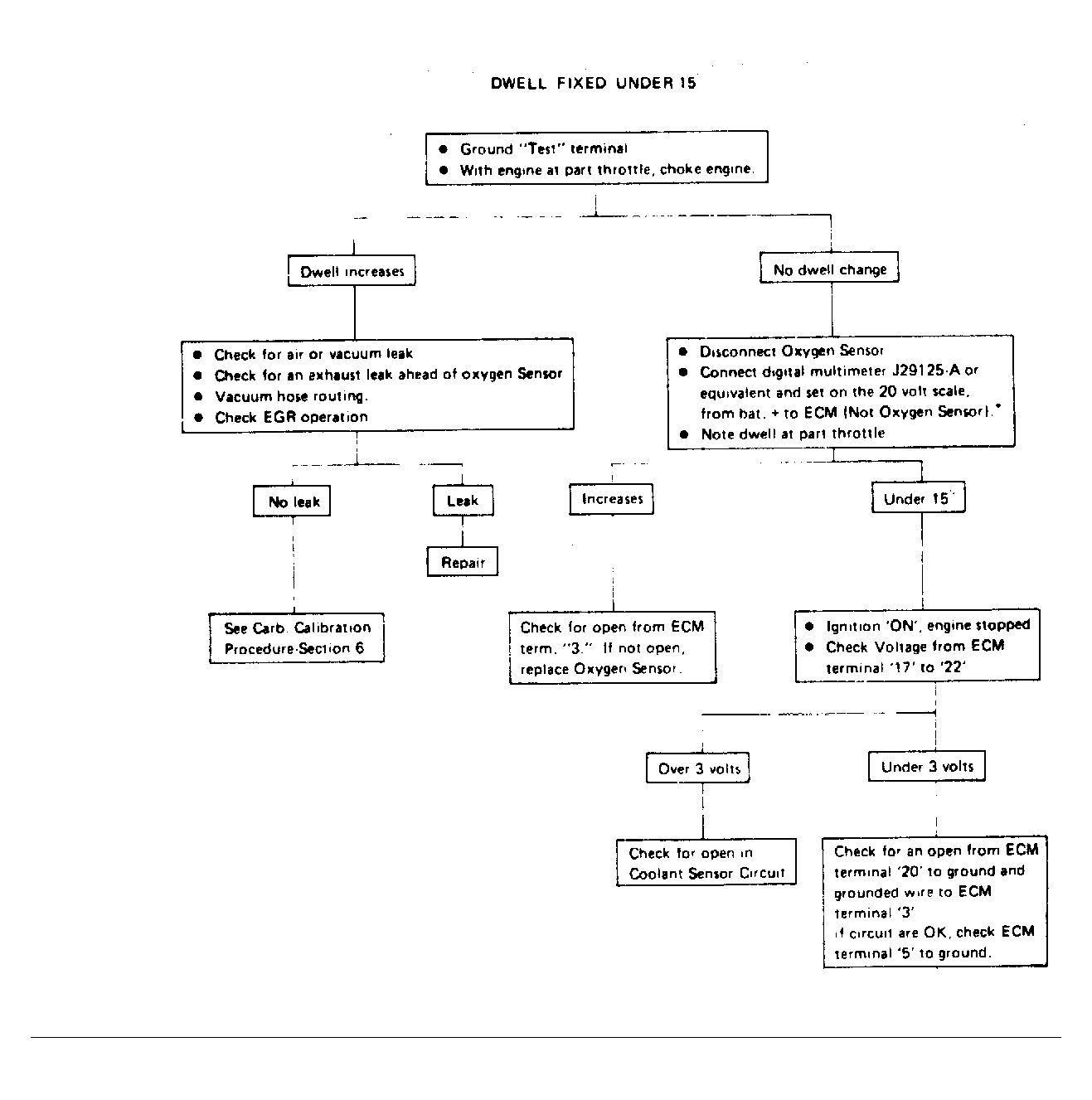

Fig 1: Chart 1 (1 of 1)

G48017

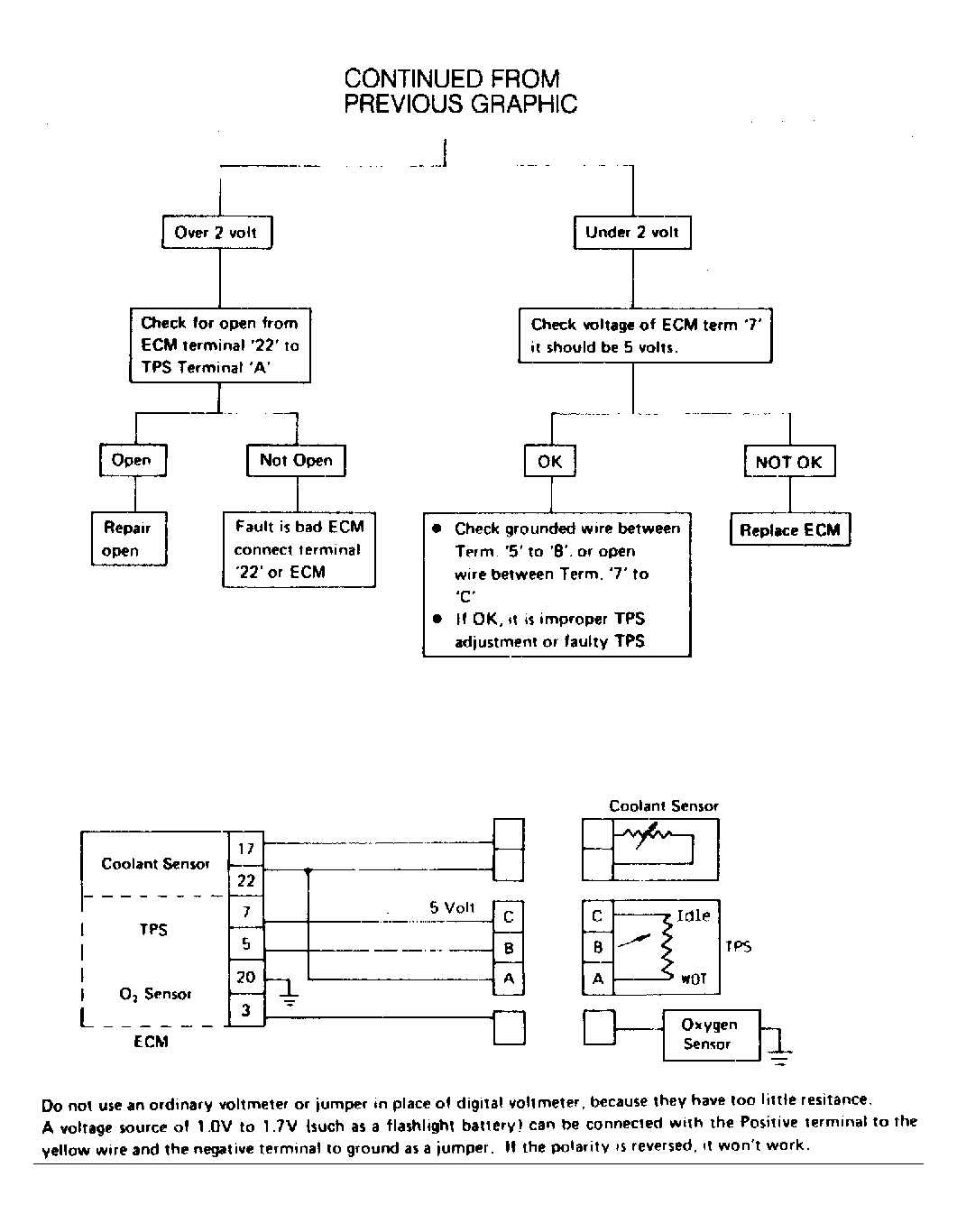

Fig 2: Chart 1 (2 of 1)

G48018
