Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Circuit Breakers | ||

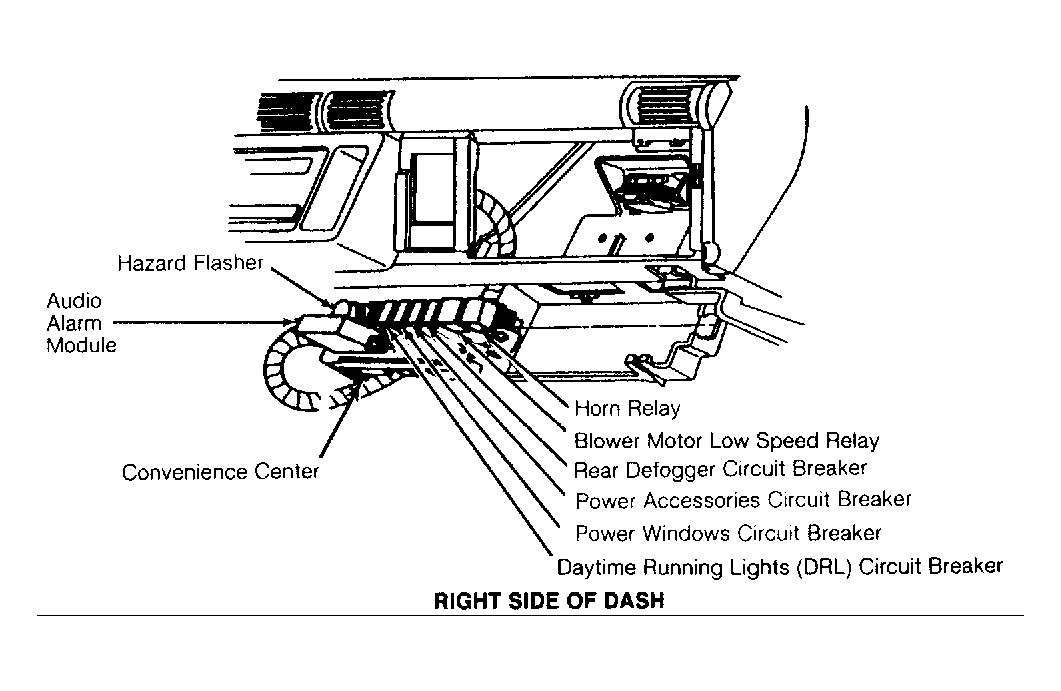

| Daytime Running Lights (DRL) | Under right side of dash, on convenience center. See Figure . | |
| Power Accessories | Under right side of dash, on convenience center. See Figure . | |
| Power Windows | Under right side of dash, on convenience center. See Figure . | |
| Rear Window Defogger | Under right side of dash, on convenience center. See Figure . | |
| ECM/Fuel Pump Fuse | Behind right side of dash, in fuse block. | |
| Fuse Block | On right side of dash, inside glove box. See Figure . | |
| Fusible Links | Bolted to starter solenoid. | |
