Service Point Locations

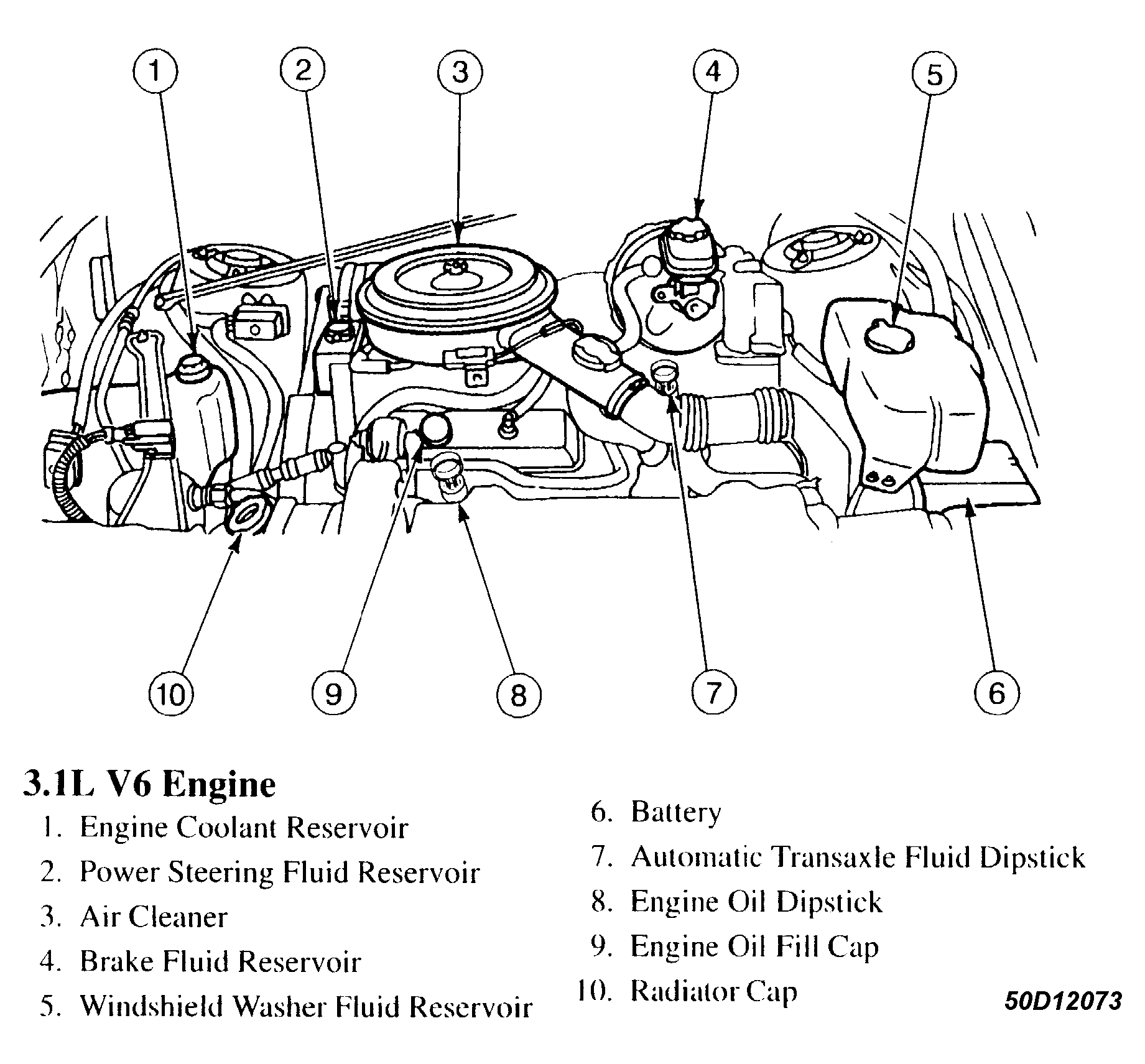

Fig 1: Service Point Locations (3.1L V-6)
G50D12073Courtesy of GENERAL MOTORS CORP.

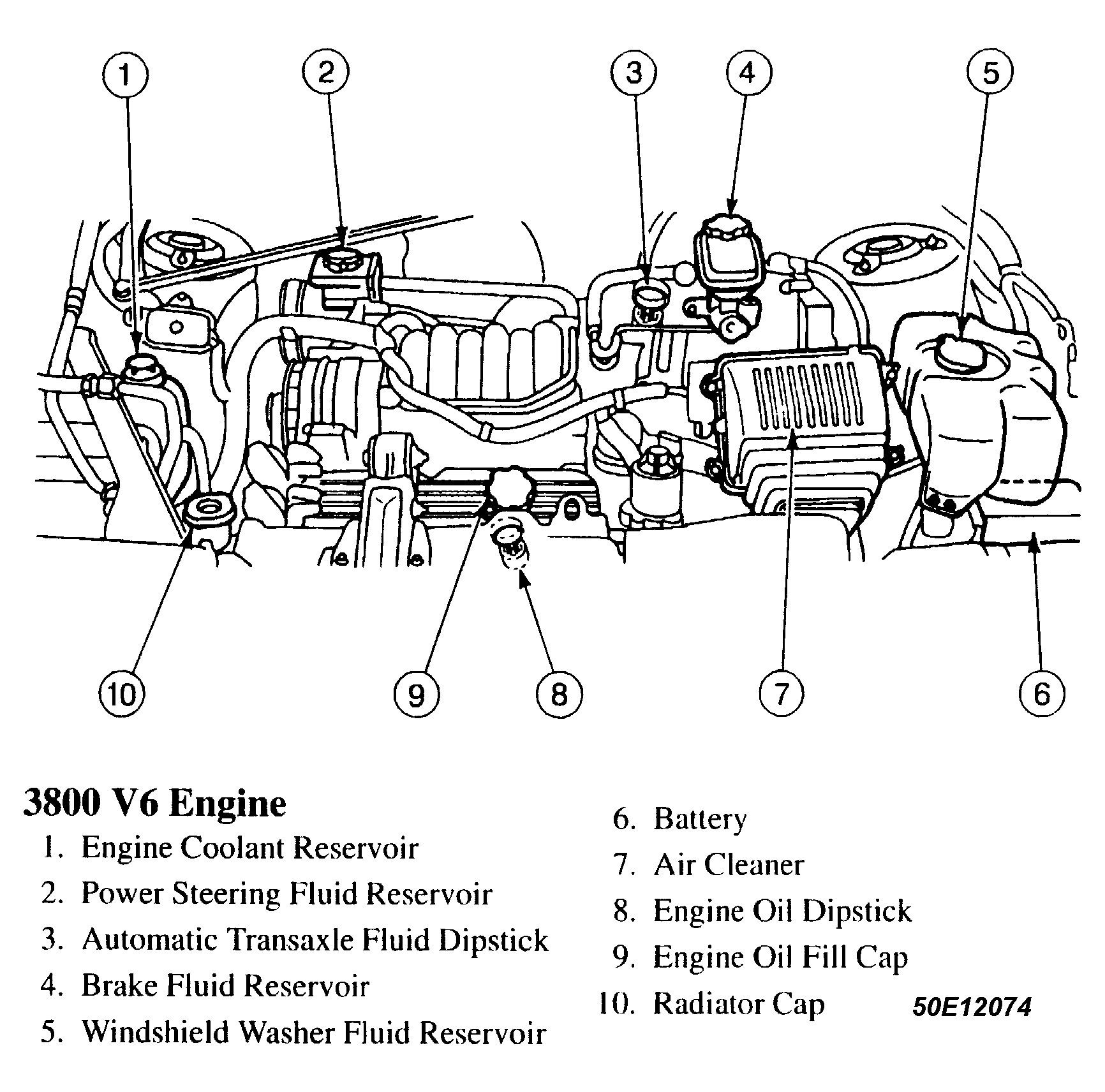

Fig 2: Service Point Locations (3.8L V-6)
G50E12074Courtesy of GENERAL MOTORS CORP.

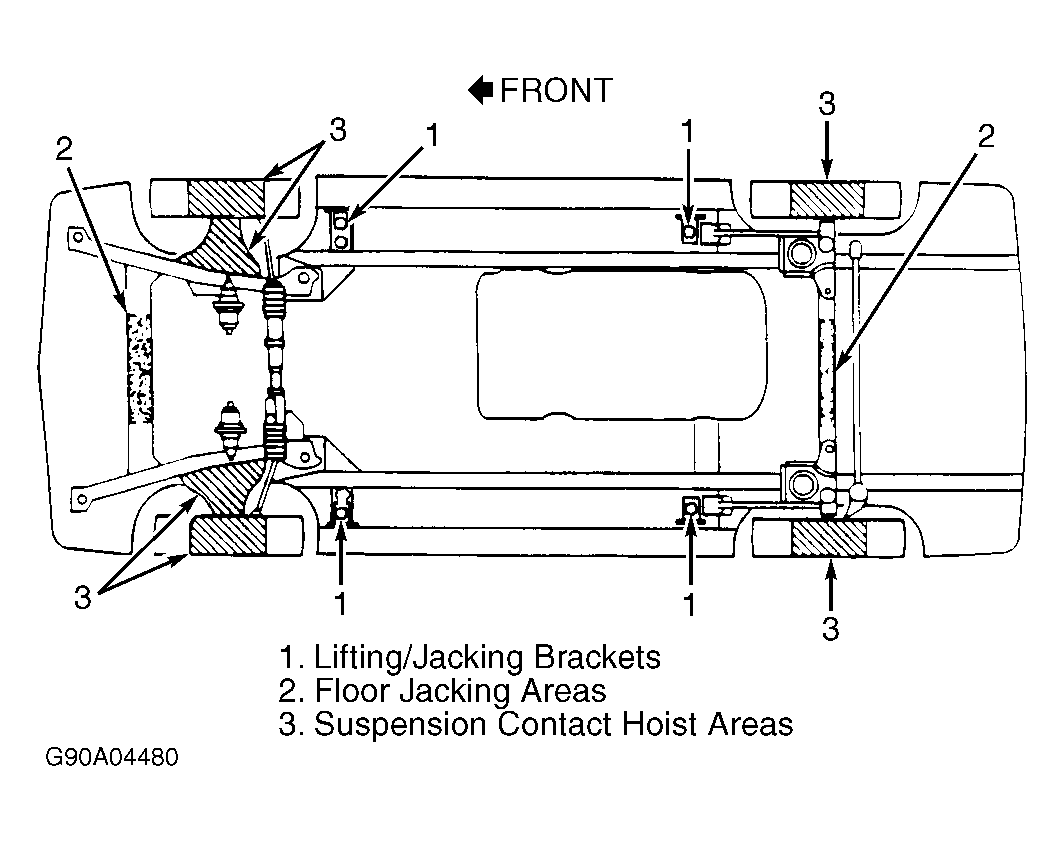

Fig 3: Lift Point Locations
G90A04480Courtesy of GENERAL MOTORS CORP.
