Engine Coolant Level Indicator Switch

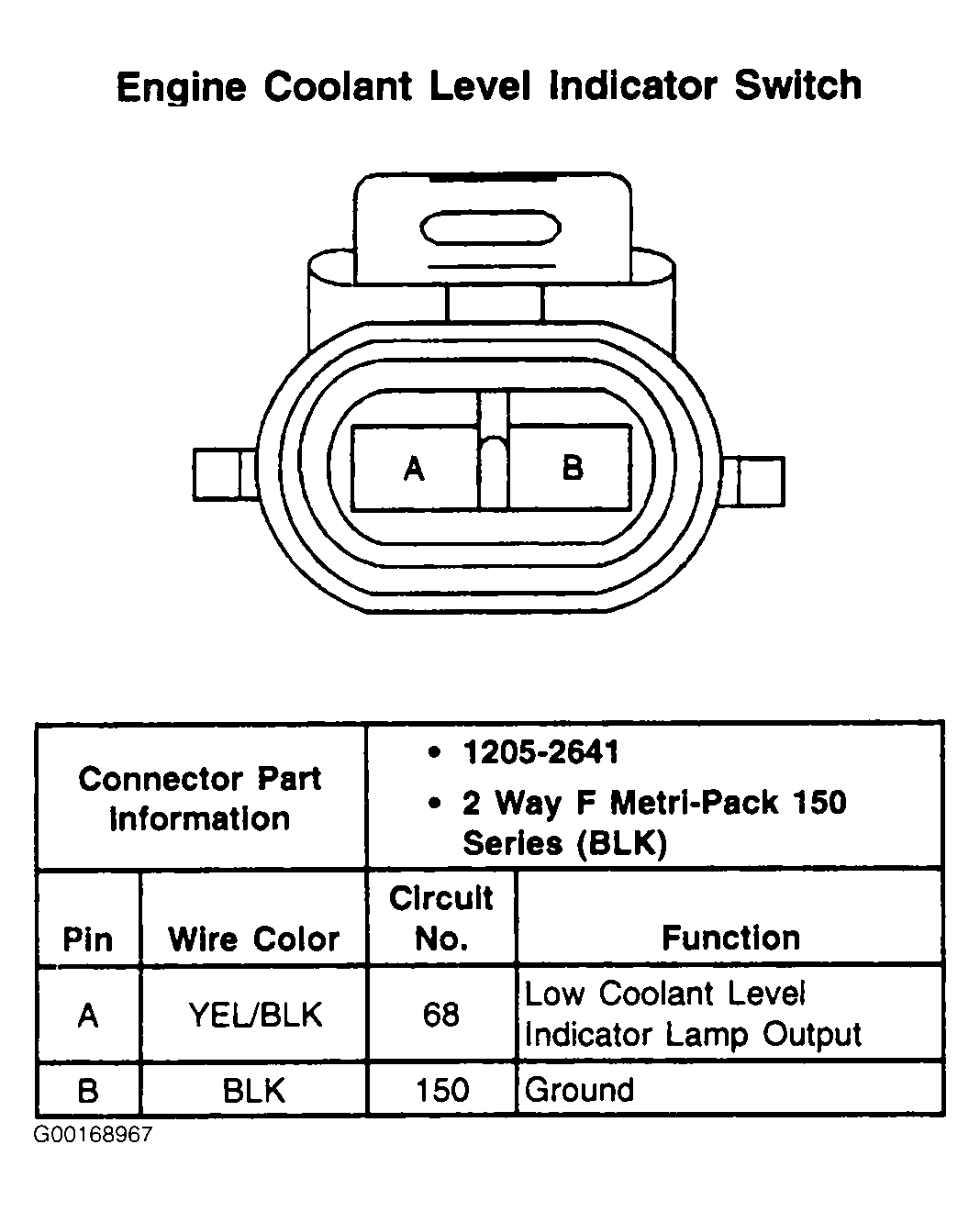

Fig 1: Engine Coolant Level Indicator Switch - 2-Pin Connector (Black)

G00168967

Courtesy of GENERAL MOTORS CORP.
