Connector Terminal Identification
>>
Engine Oil Pressure Sensor
Engine Oil Pressure Sensor

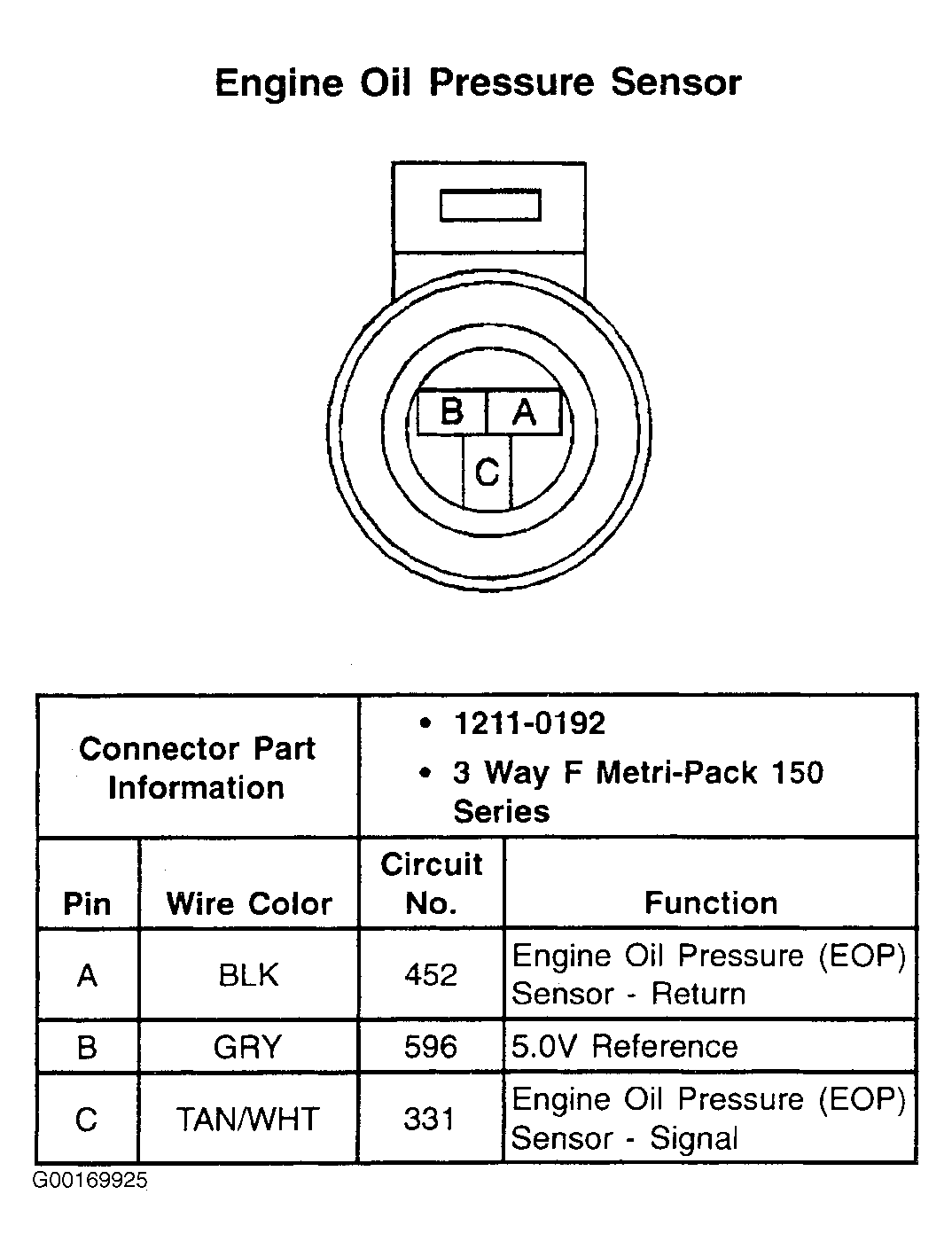

Fig 1: Engine Oil Pressure Sensor - 3-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
