Connector Terminal Identification: Generator

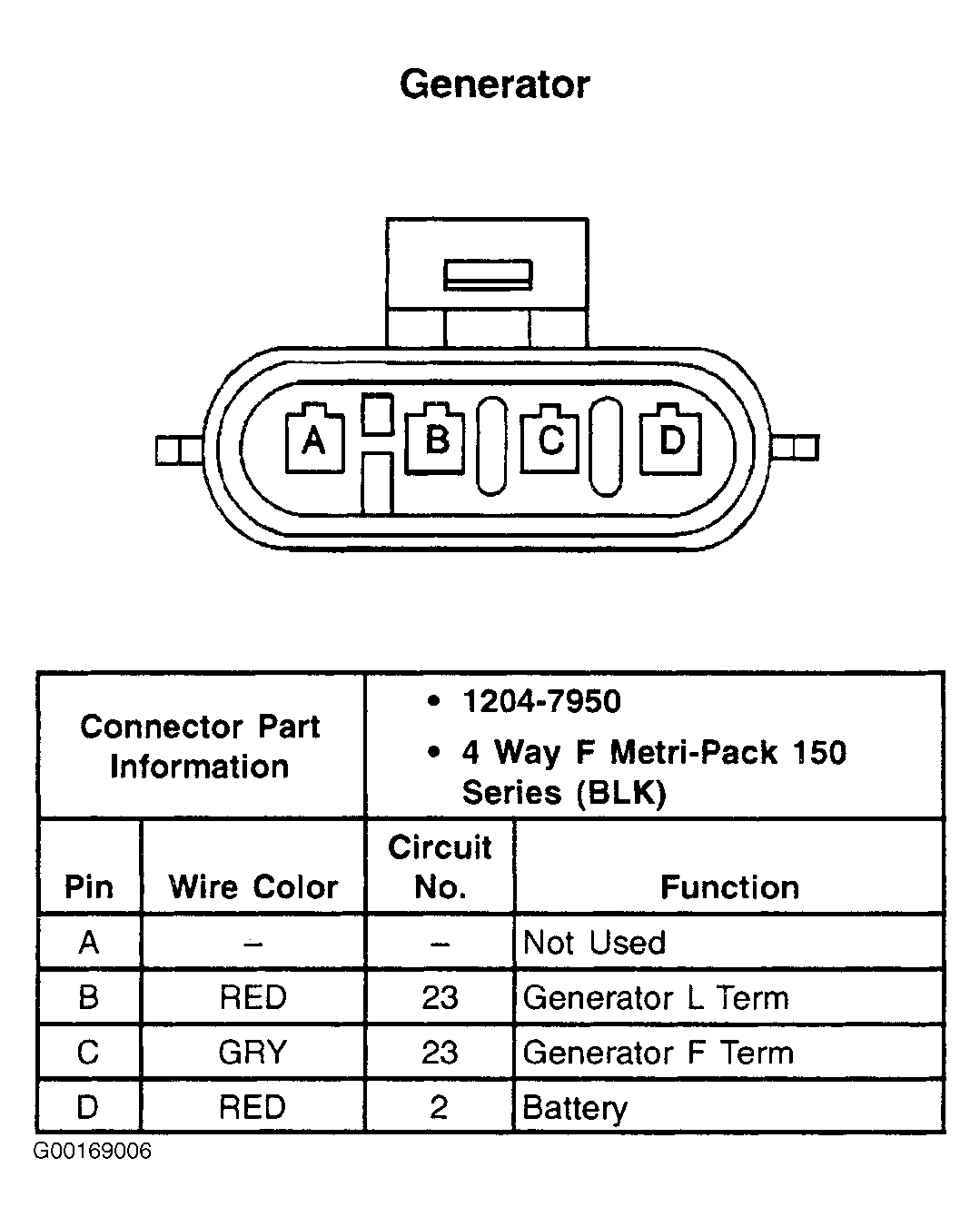

Fig 1: Generator - 4-Pin Connector (Black)

G00169006

Courtesy of GENERAL MOTORS CORP.
