Connector Terminal Identification
>>
Inflatable Restraint Instrument Panel Module
Inflatable Restraint Instrument Panel Module

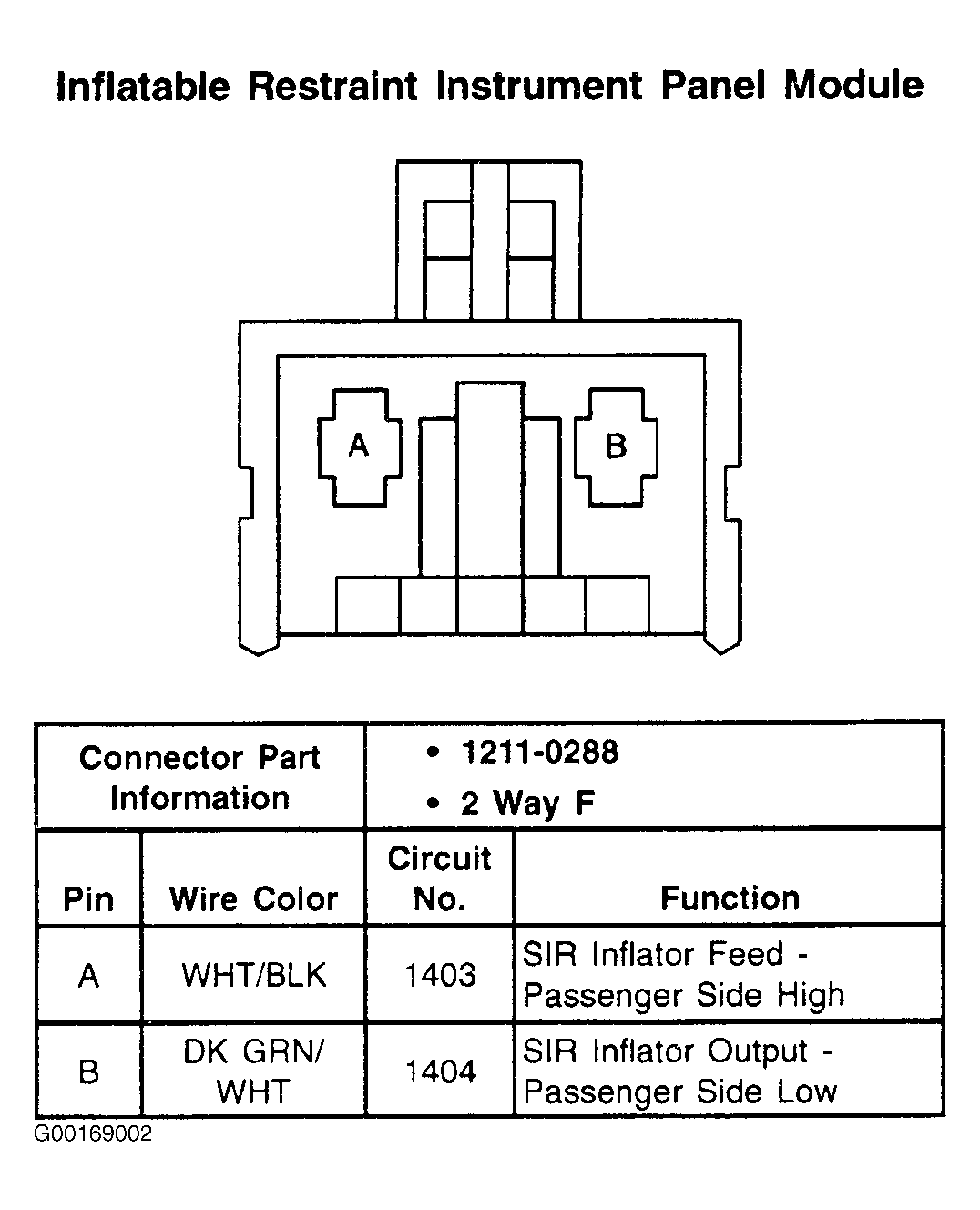

Fig 1: Inflatable Restraint Instrument Panel Module - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
