Instrument Panel Compartment Lamp

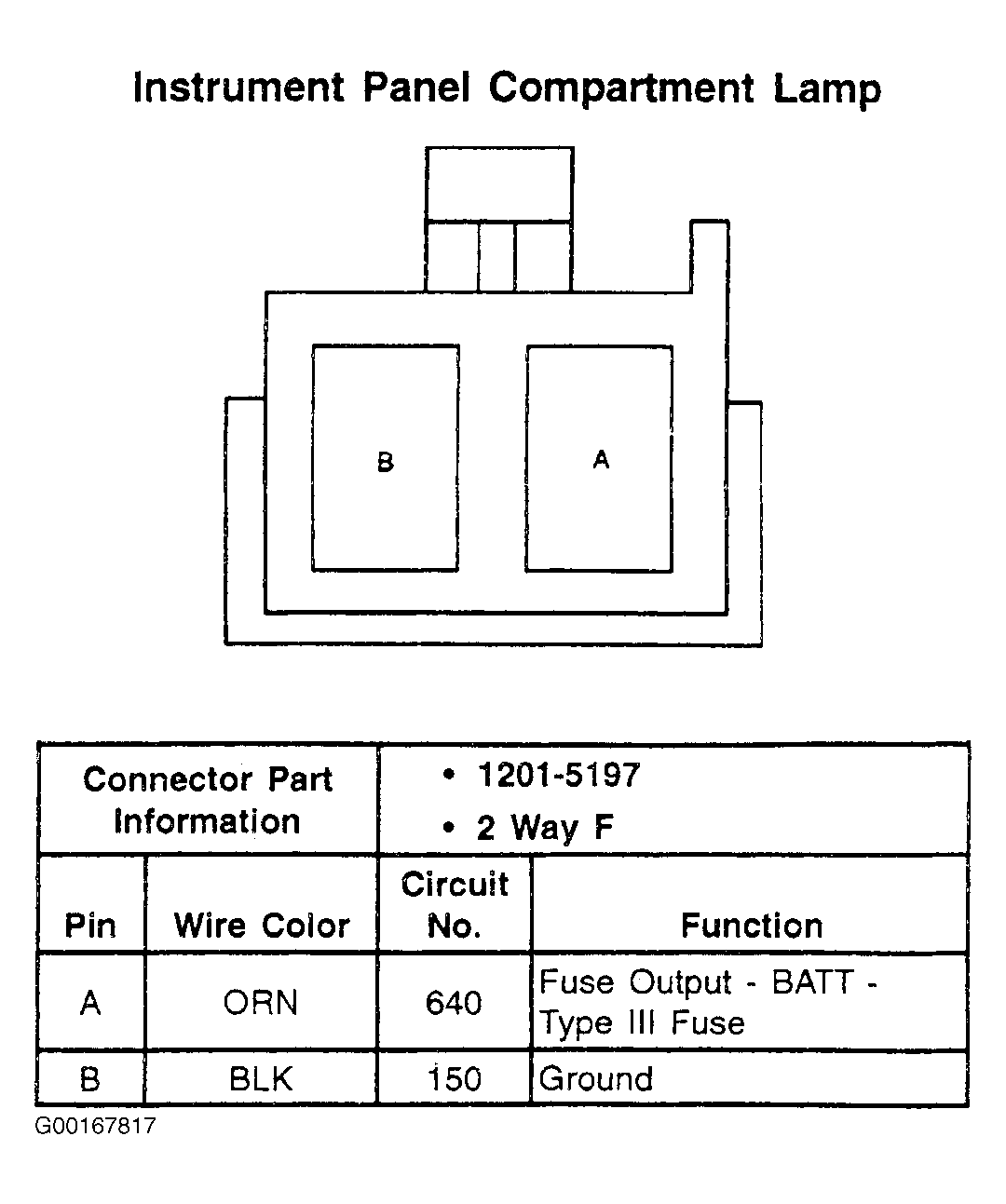

Fig 1: Instrument Panel Compartment Lamp - 2-Pin Connector

G00167817

Courtesy of GENERAL MOTORS CORP.
