Instrument Panel Courtesy Lamp (RH)

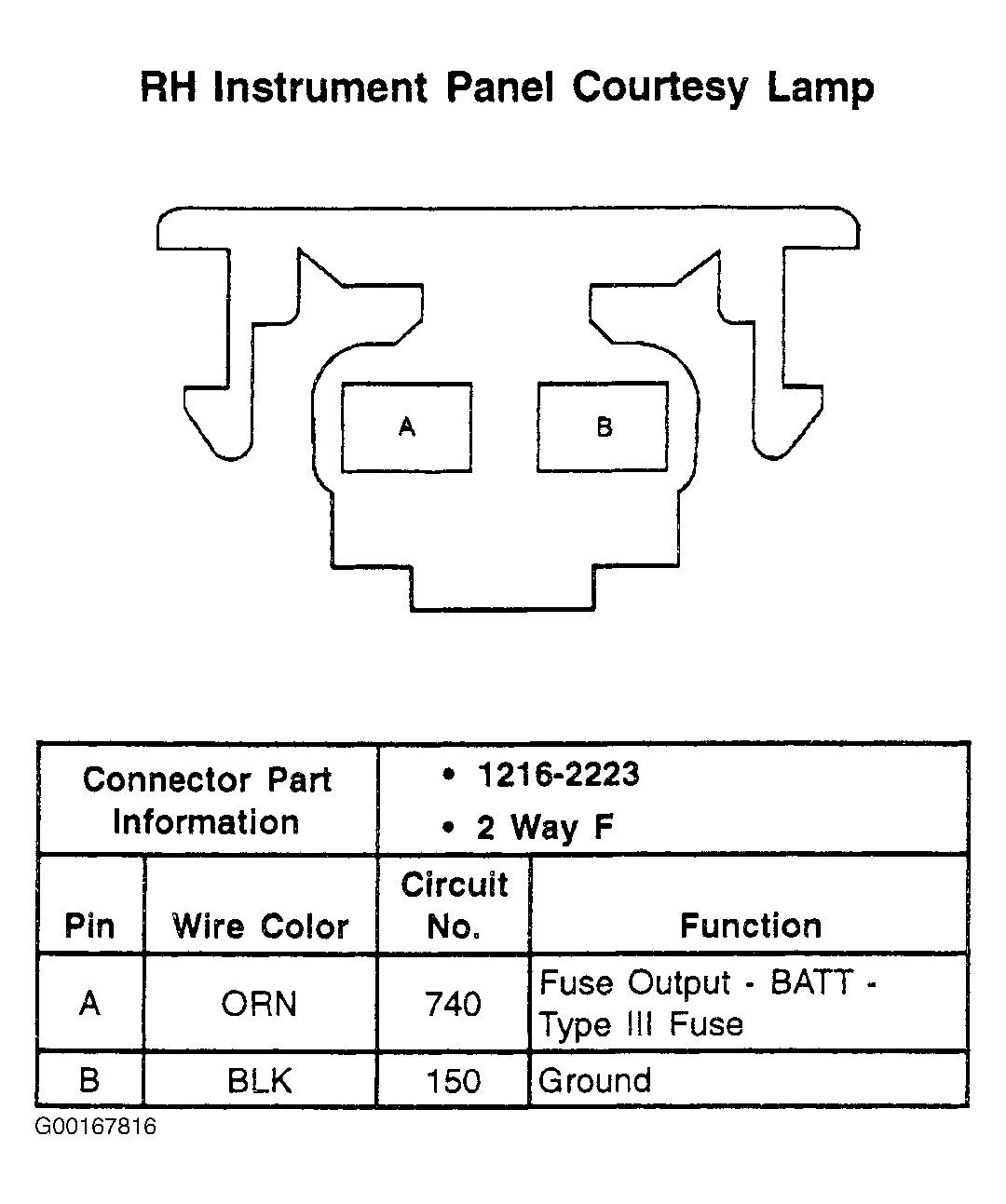

Fig 1: Instrument Panel Courtesy Lamp (RH) - 2-Pin Connector

G00167816

Courtesy of GENERAL MOTORS CORP.
