Chevrolet
>>
1997
>>
Corvette Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification
>>
Park/Neutral Position Switch C2
Park/Neutral Position Switch C2

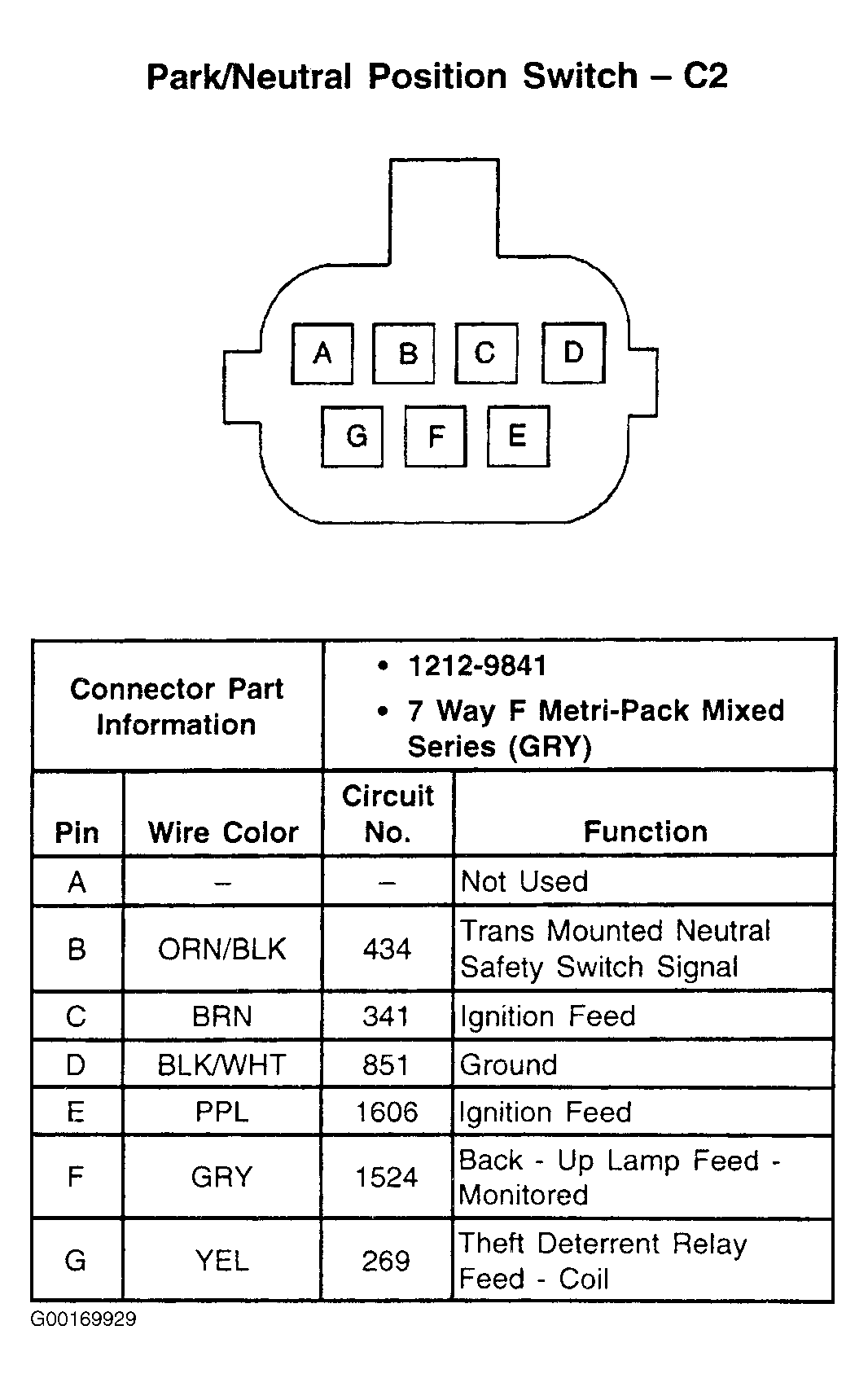

Fig 1: Park/Neutral Position Switch C2 - 7-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
