Connector Terminal Identification
>>
STOPLAMP Switch
STOPLAMP Switch

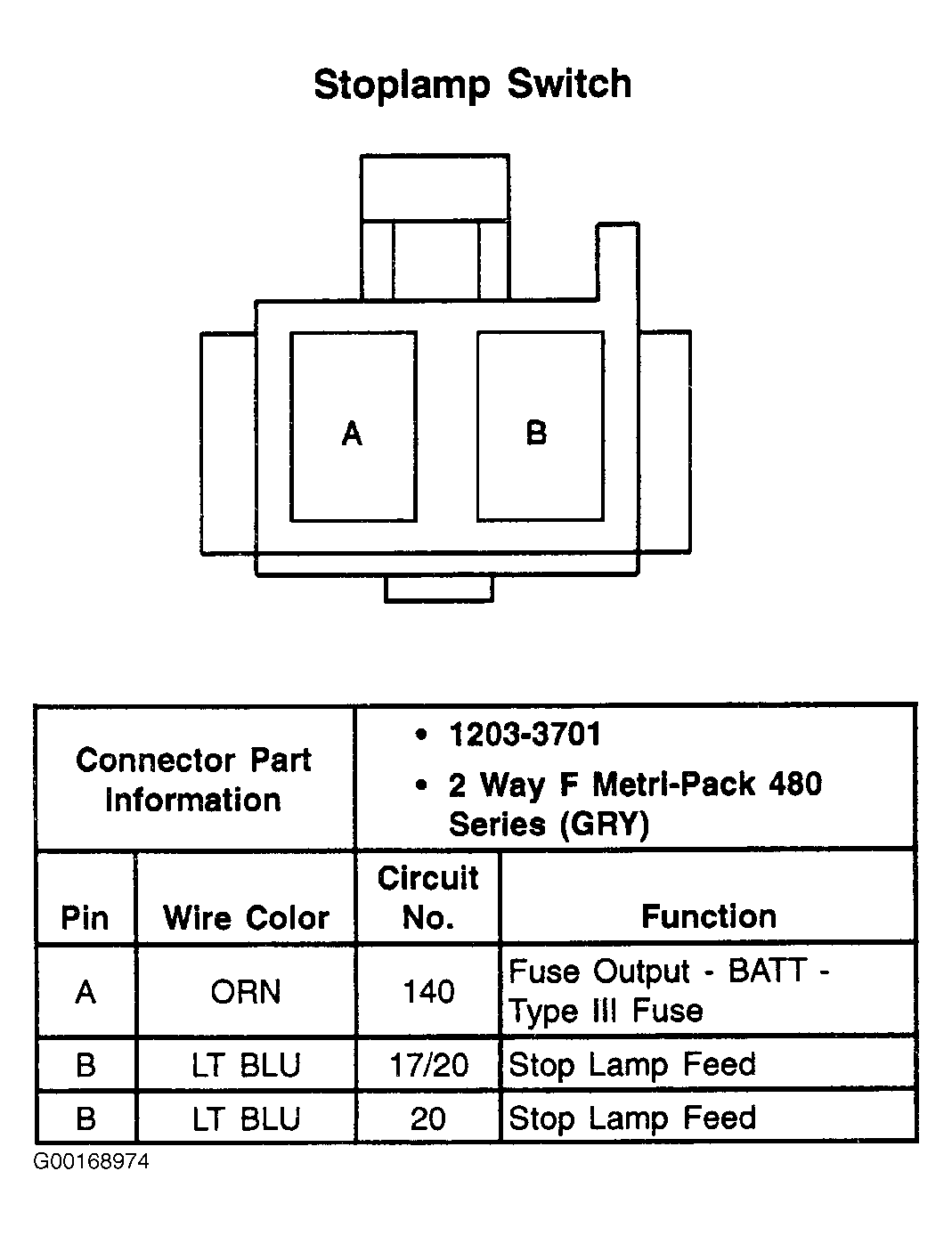

Fig 1: Stoplamp Switch - 2-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
