Throttle Position (TP) Sensor

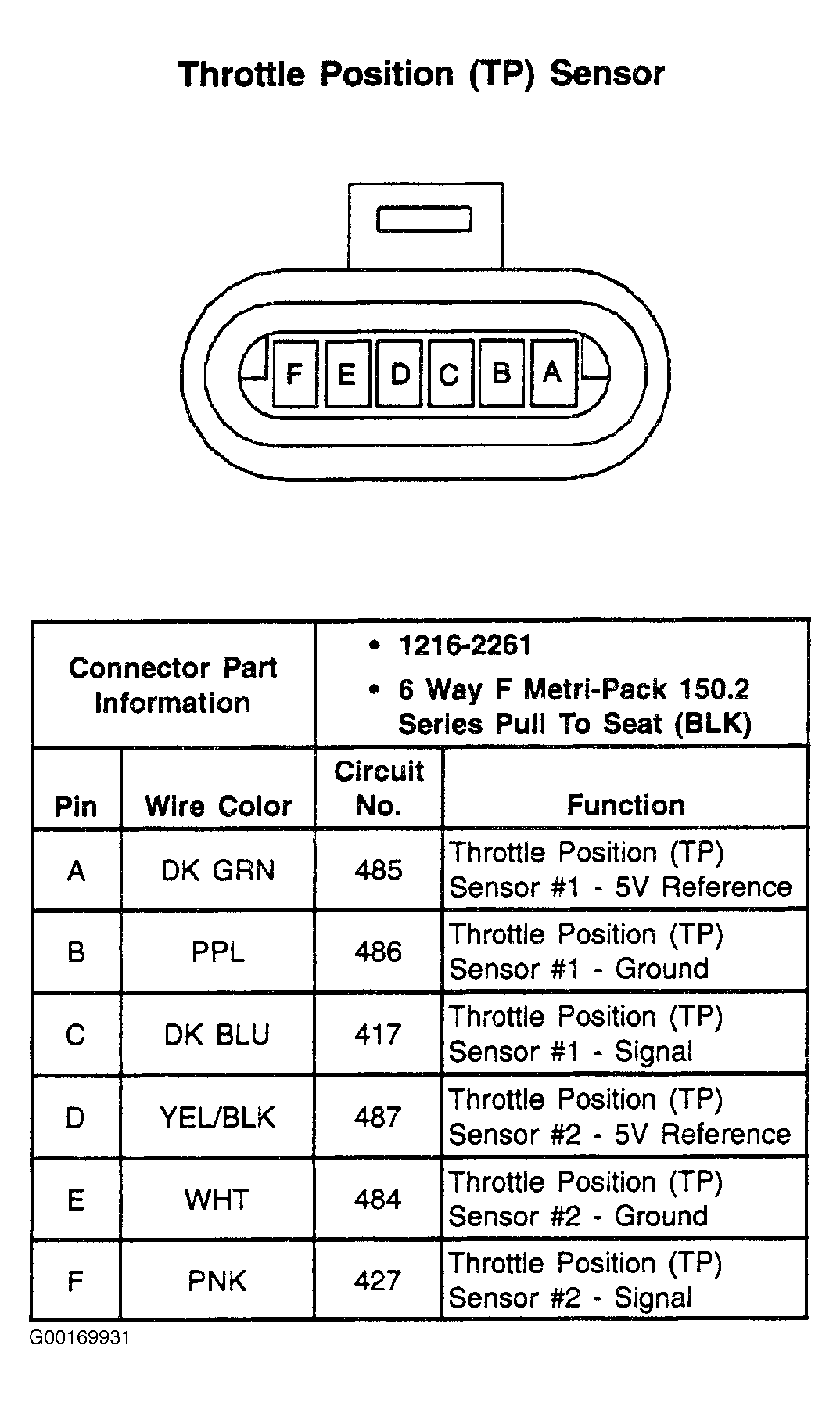

Fig 1: Throttle Position (TP) Sensor - 6-Pin Connector (Black)

G00169931

Courtesy of GENERAL MOTORS CORP.
