Home >> Chevrolet >> 1997 >> Venture LS >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Auto Level Control (ALC) Air Compressor

Auto Level Control (ALC) Air Compressor

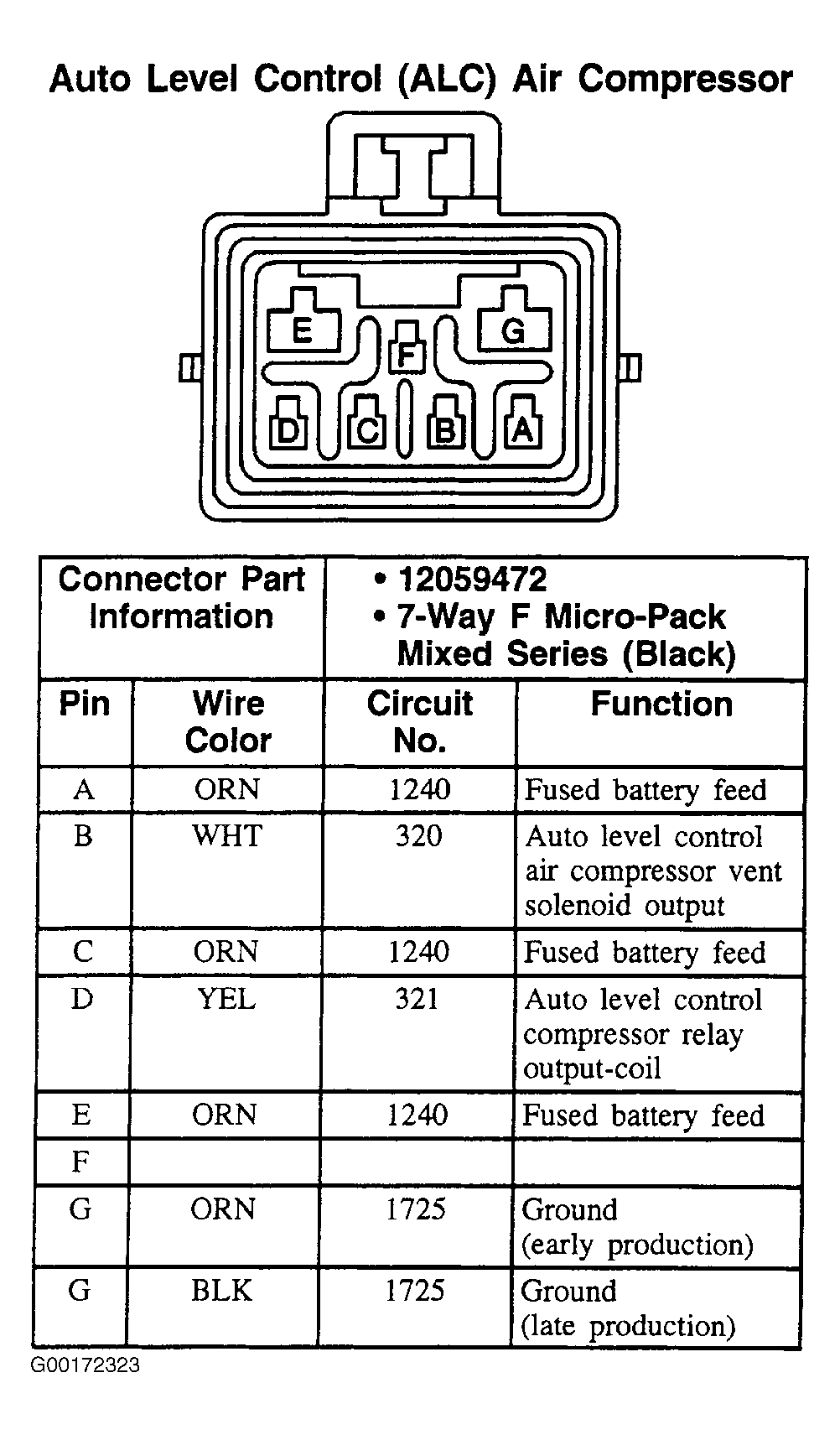

Fig 1: Auto Level Control (ALC) Air Compressor - 7-Pin Connector (Black)

G00172323

Courtesy of GENERAL MOTORS CORP.
