Home >> Chevrolet >> 1997 >> Venture LS >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Auto Level Control (ALC) Inflator Relay

Auto Level Control (ALC) Inflator Relay

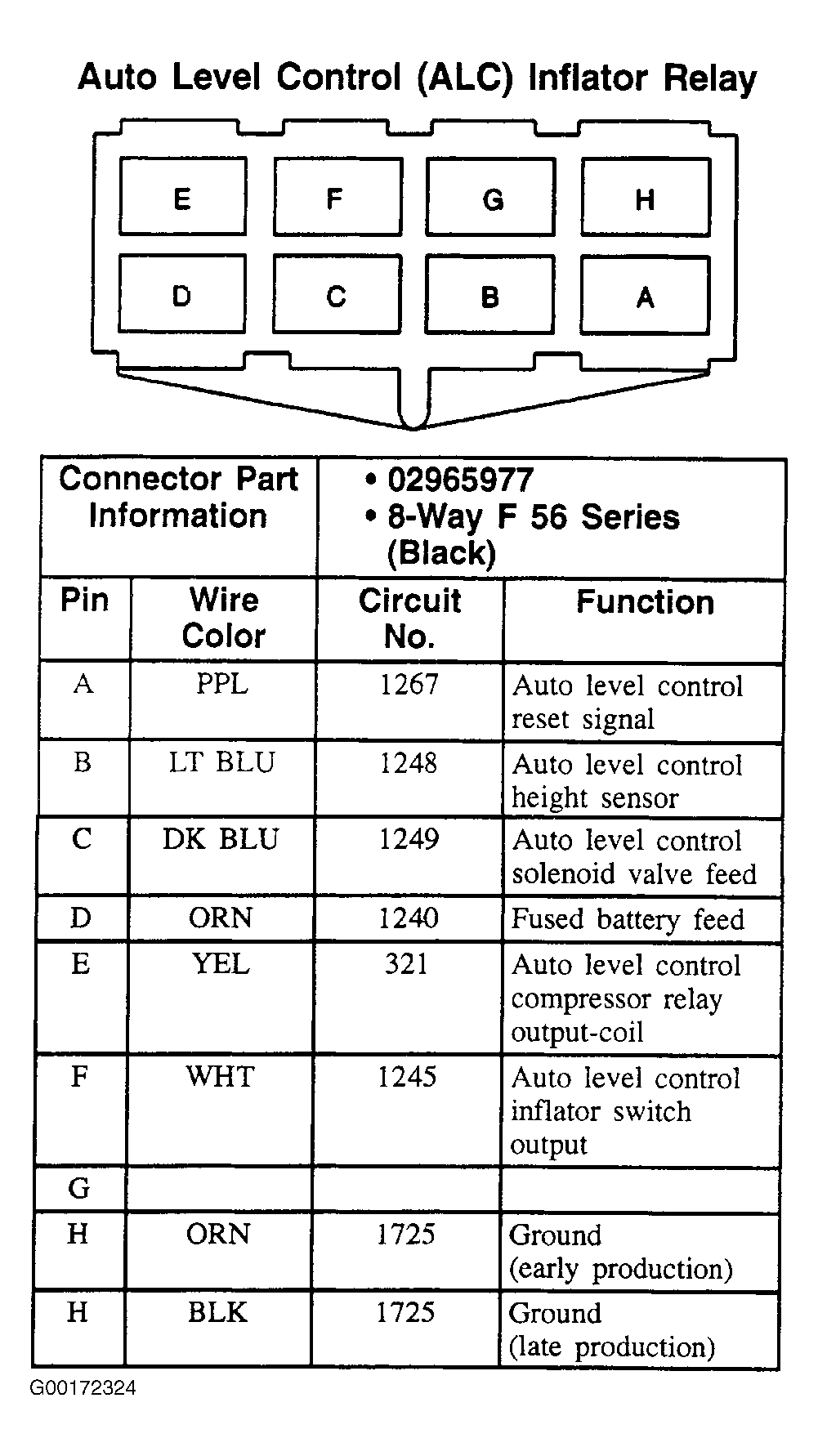

Fig 1: Auto Level Control (ALC) Inflator Relay - 8-Pin Connector (Black)

G00172324

Courtesy of GENERAL MOTORS CORP.
