Connector Terminal Identification
>>
Auxiliary Temperature Valve Actuator
Auxiliary Temperature Valve Actuator

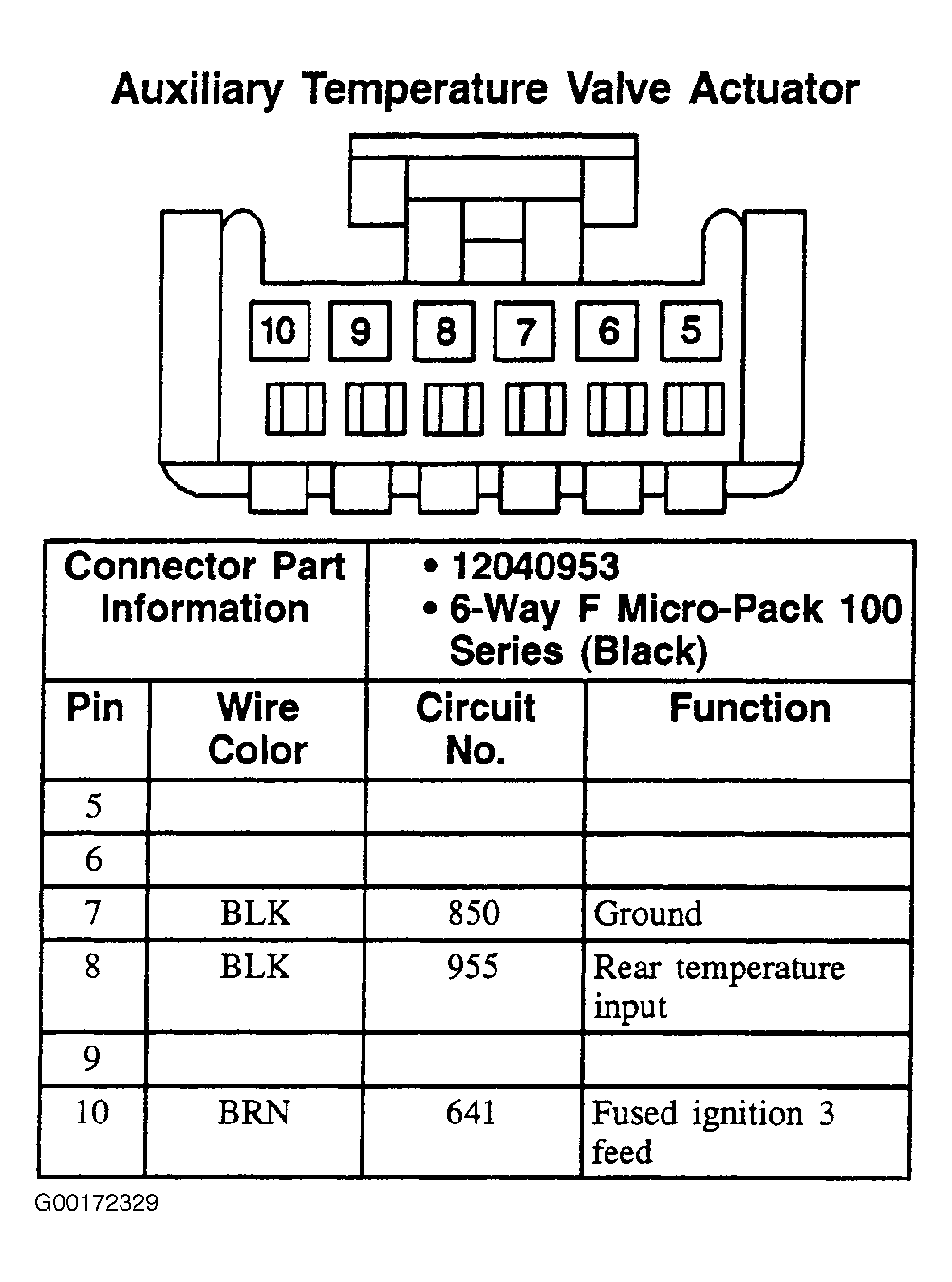

Fig 1: Auxiliary Temperature Valve Actuator - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
