Home >> Chevrolet >> 1997 >> Venture LS >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Connectors C101 To C407 >> C111

Connectors C101 To C407: C111

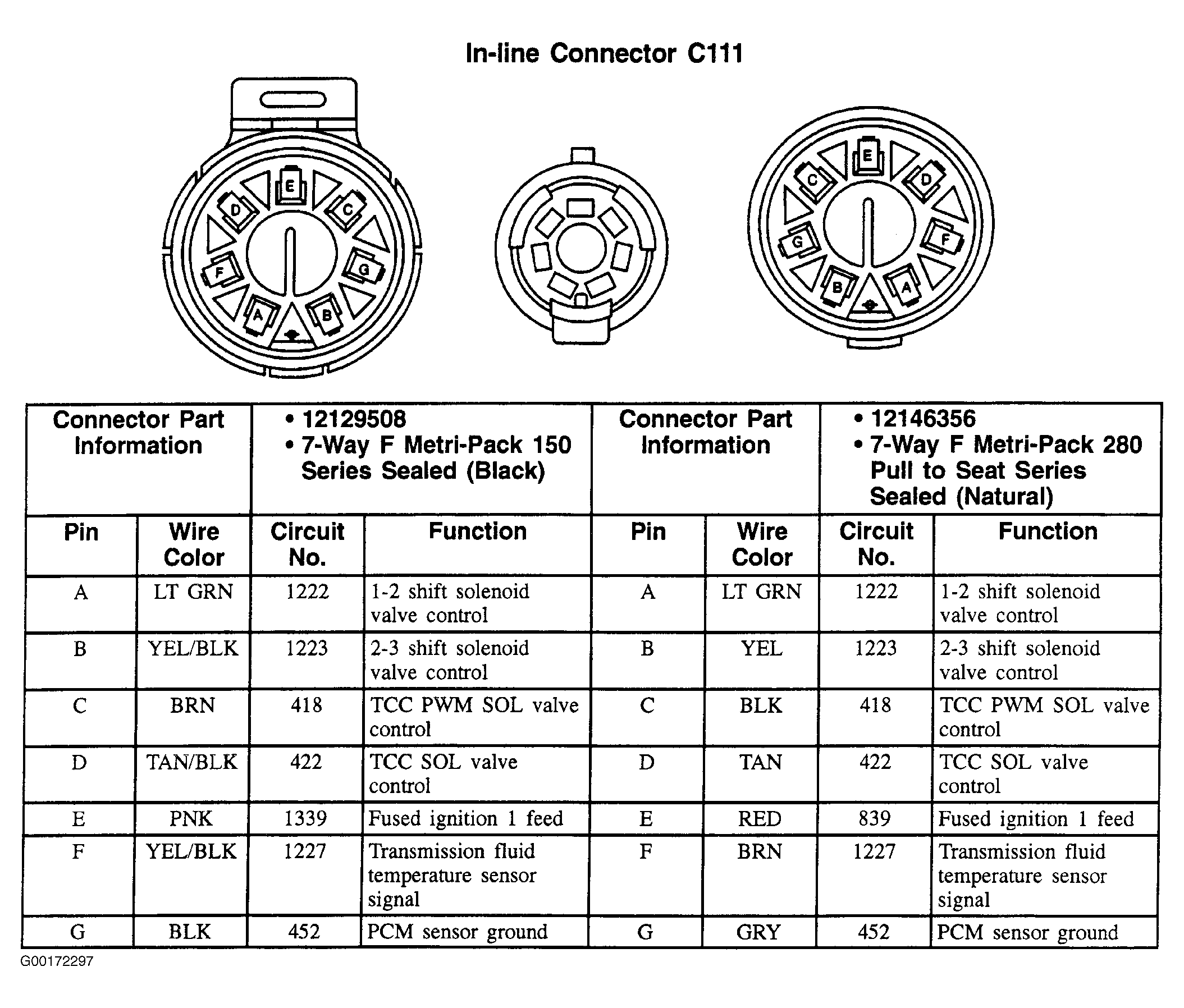

Fig 1: C111 - 7-Pin Connector (Black/Natural)

G00172297

Courtesy of GENERAL MOTORS CORP.
