Home >> Chevrolet >> 1997 >> Venture LS >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Connectors C101 To C407 >> C201

Connectors C101 To C407: C201

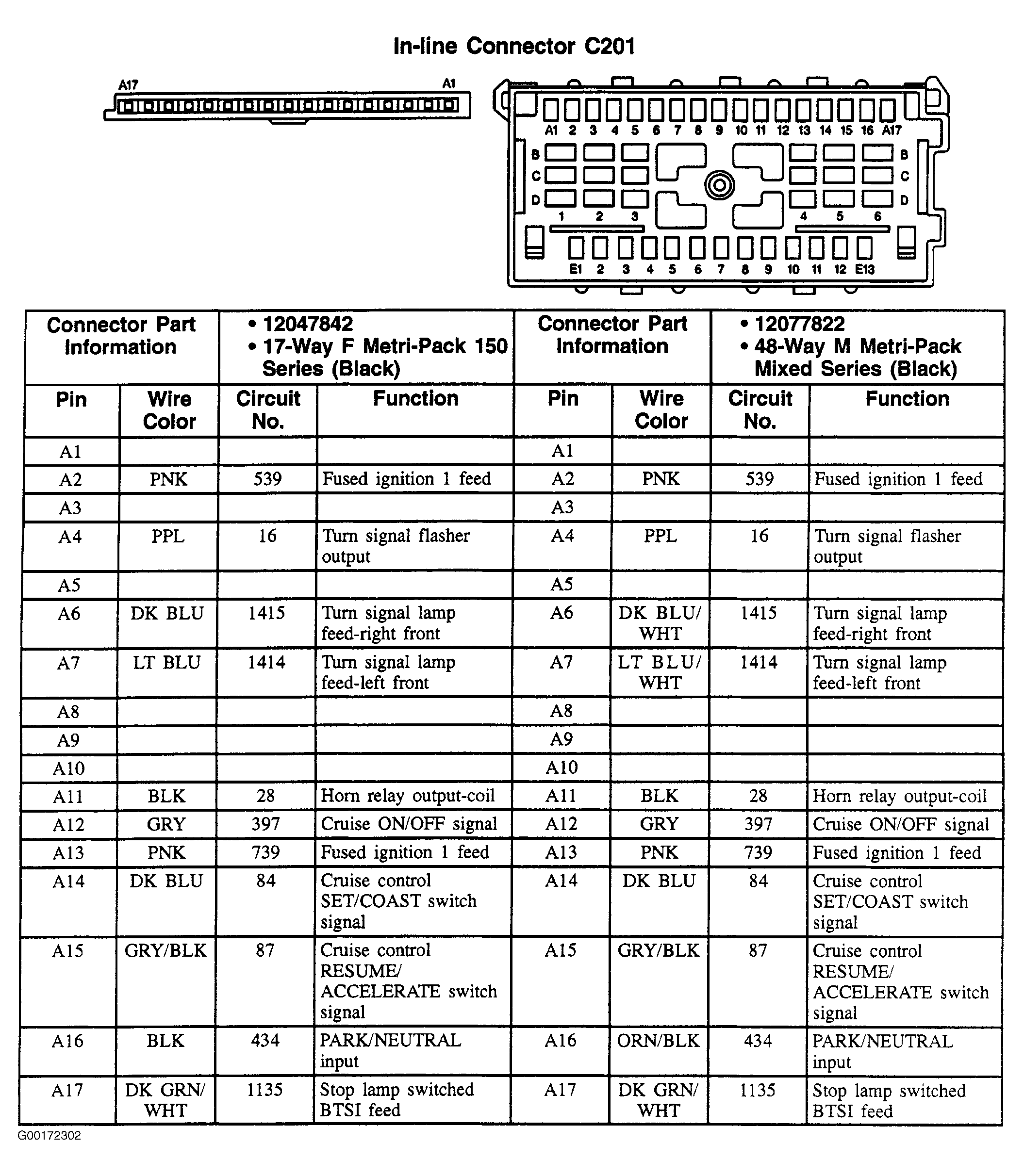

Fig 1: C201 - 17-Pin Connector (Black)/48-Pin Connector (Black) - (1 Of 3)
G00172302Courtesy of GENERAL MOTORS CORP.

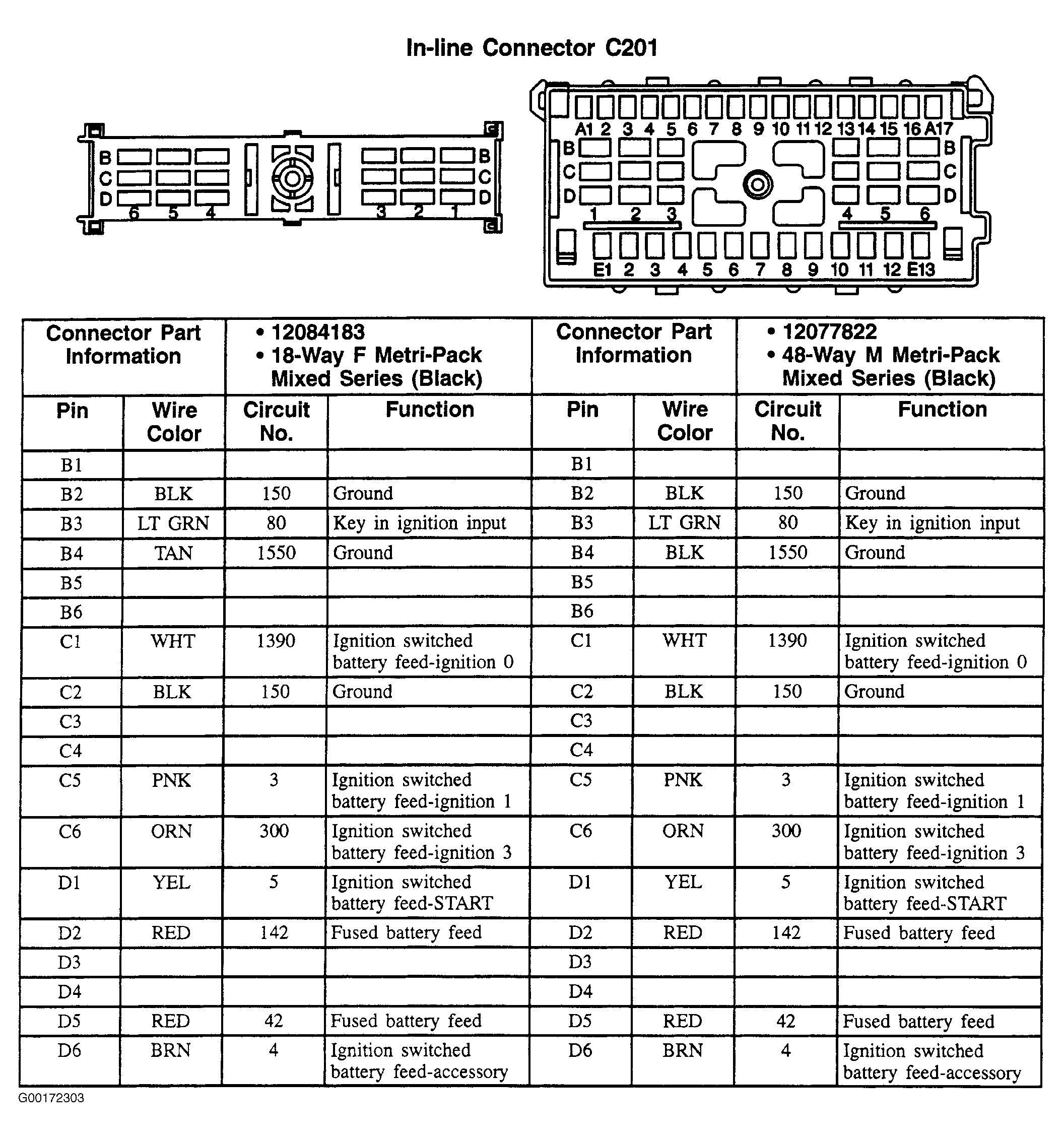

Fig 2: C201 - 18-Pin Connector (Black)/48-Pin Connector (Black) - (2 Of 3)
G00172303Courtesy of GENERAL MOTORS CORP.

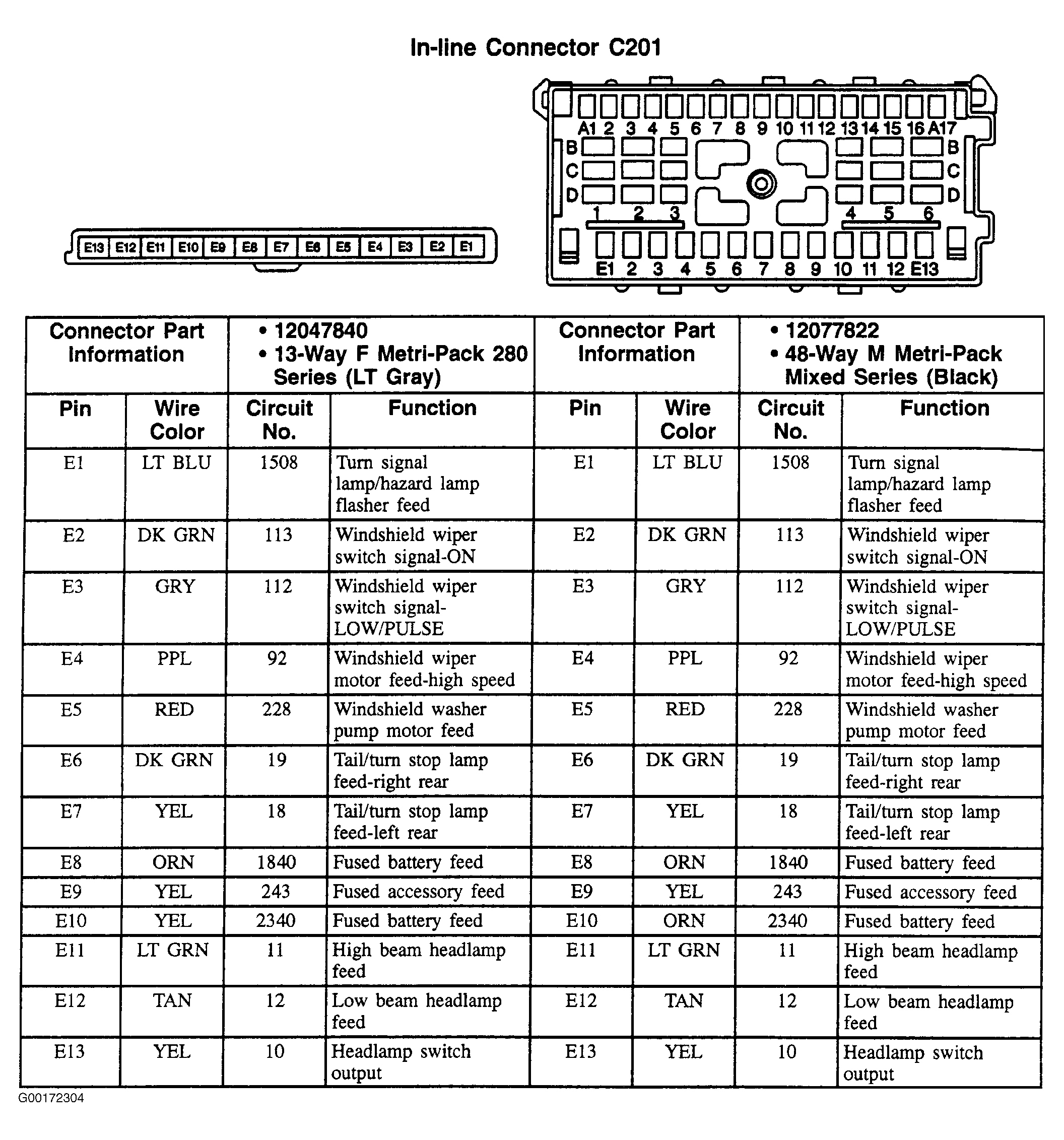

Fig 3: C201 - 13-Pin Connector (Light Gray)/48-Pin Connector (Black) - (3 Of 3)
G00172304Courtesy of GENERAL MOTORS CORP.
