C203
Connectors C101 To C407: C203

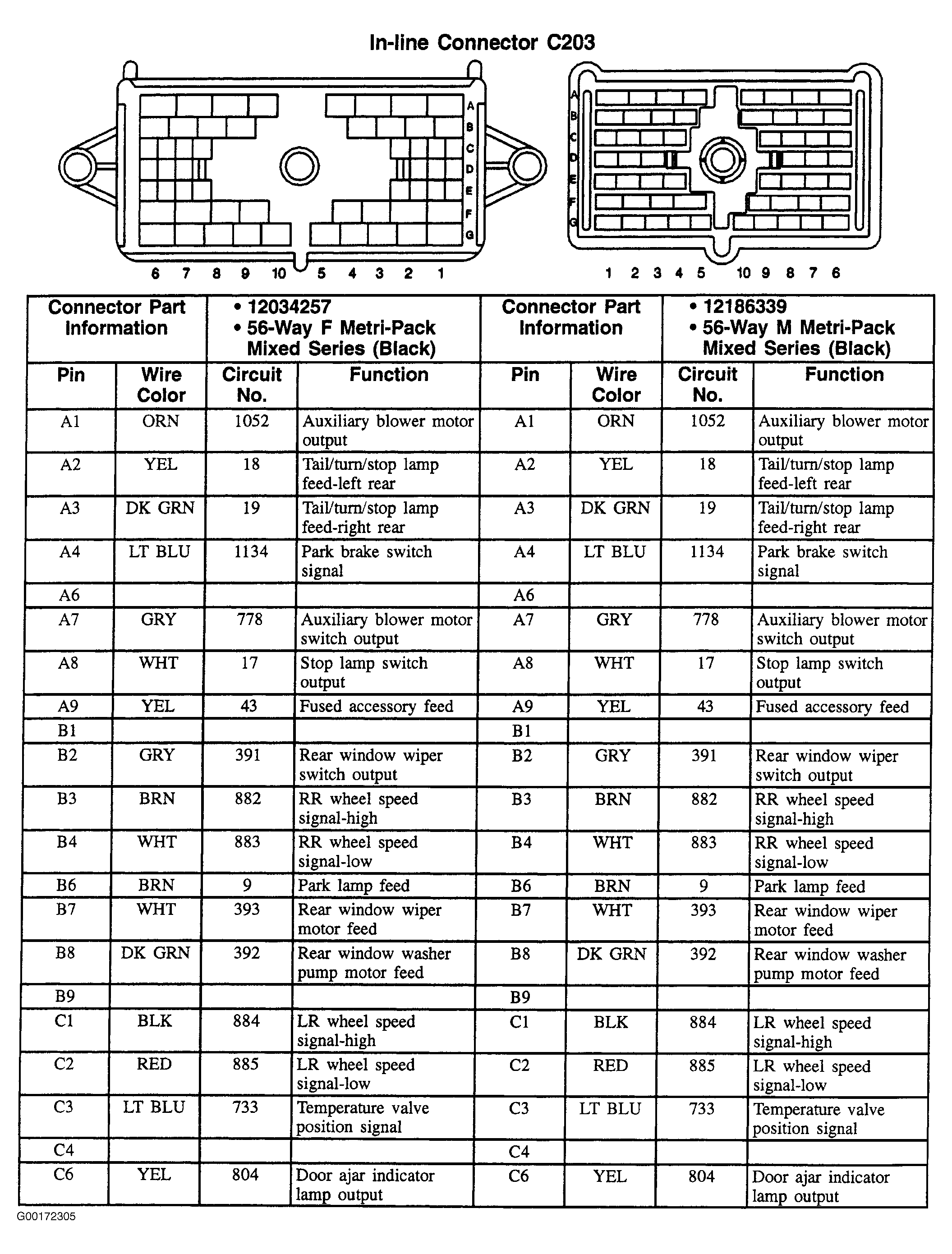

Fig 1: C203 - 56-Pin Connector (Black) - (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

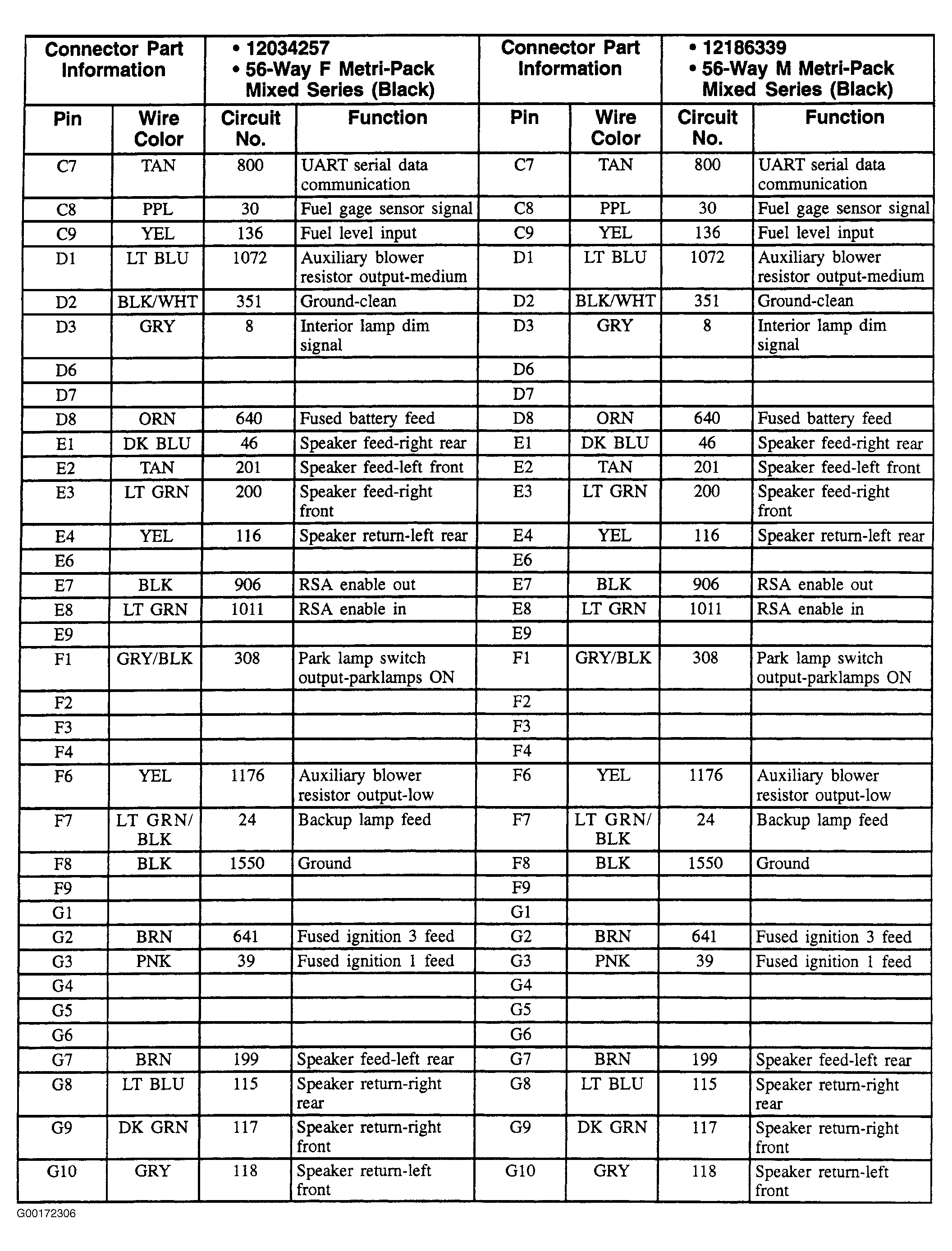

Fig 2: C203 - 56-Pin Connector (Black) - (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
