Home >> Chevrolet >> 1997 >> Venture LS >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Connectors C101 To C407 >> C400

Connectors C101 To C407: C400

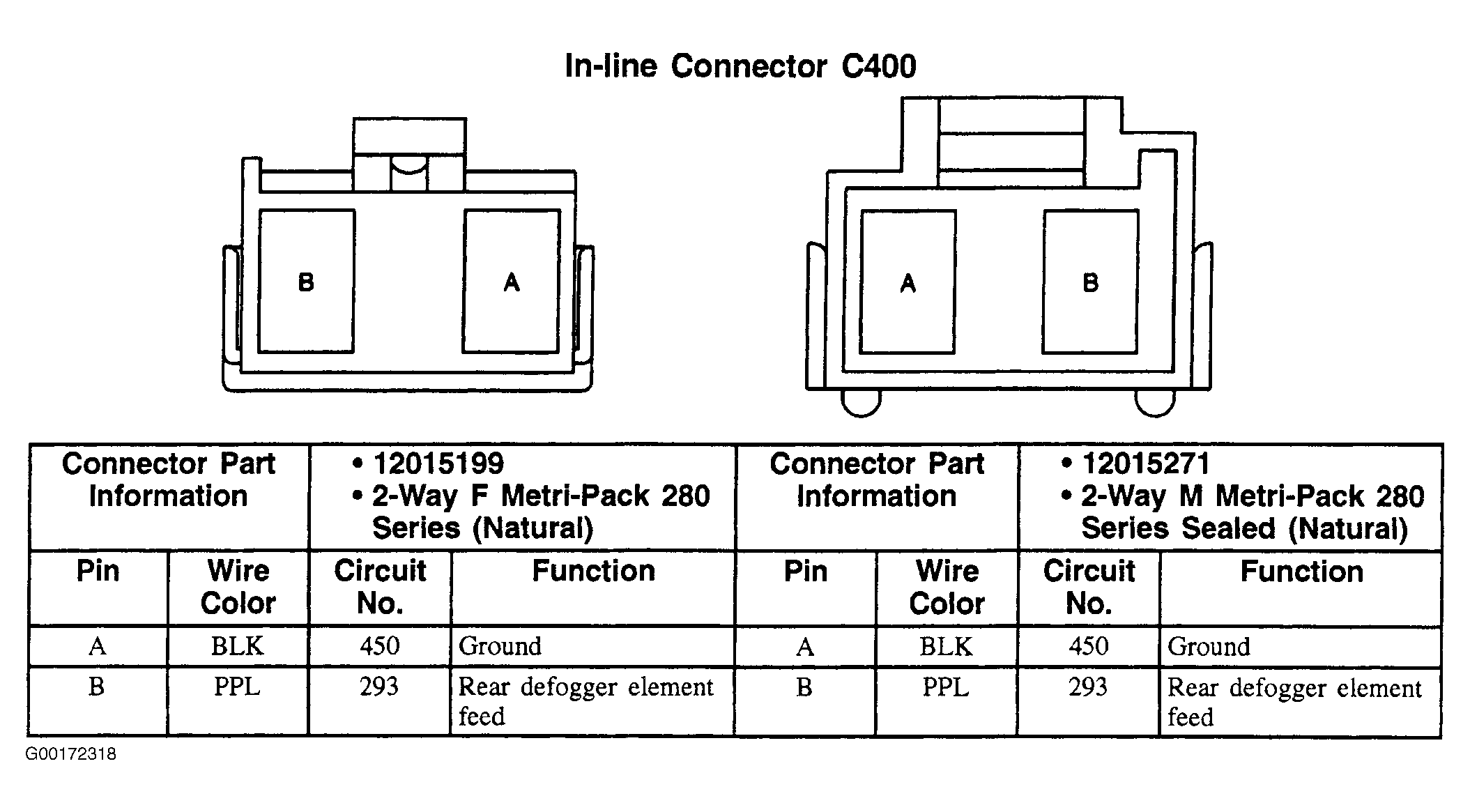

Fig 1: C400 - 2-Pin Connector (Natural)
G00172318Courtesy of GENERAL MOTORS CORP.
