Daytime Running Lamps (DRL) Control Module C2

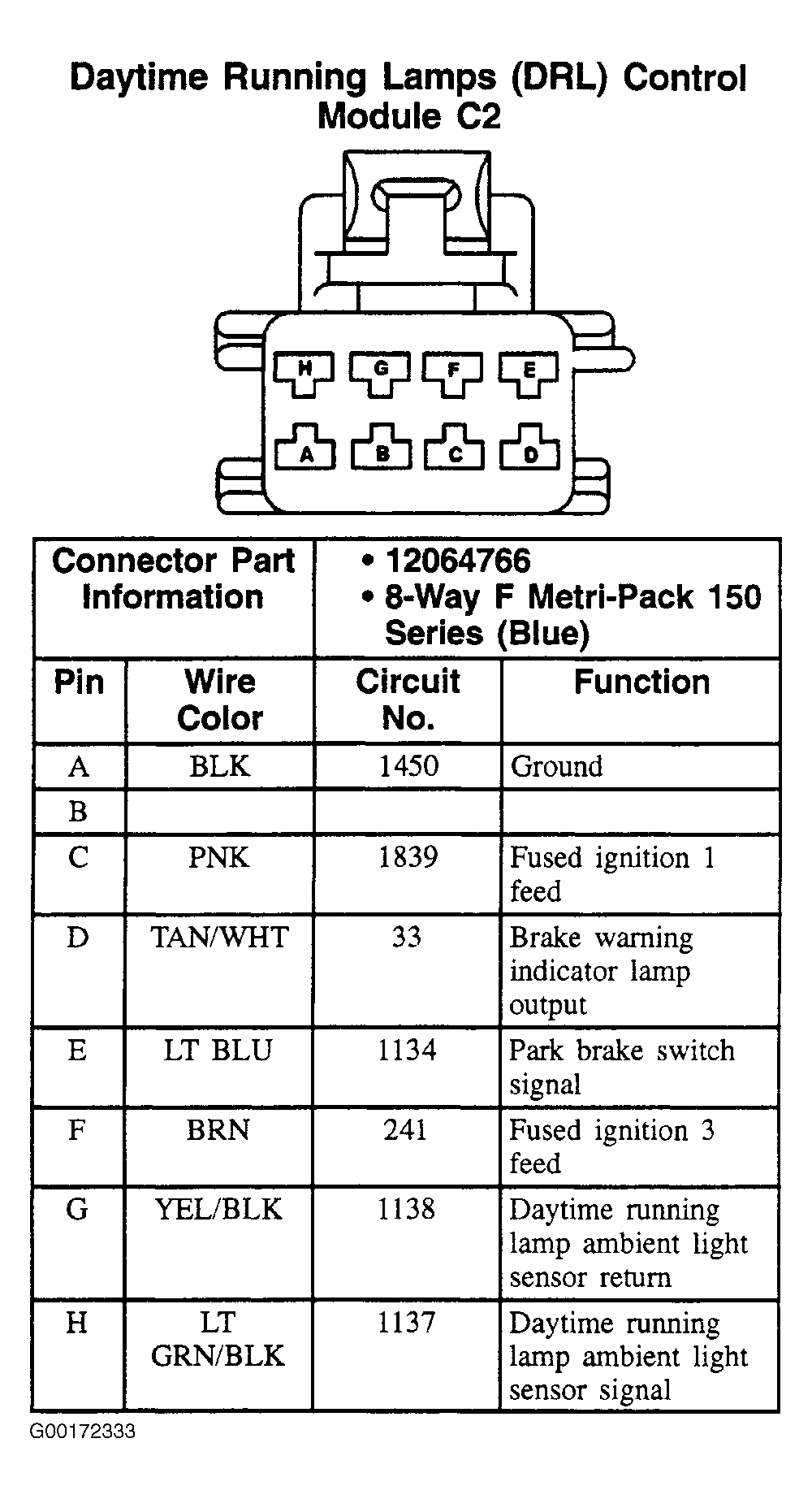

Fig 1: Daytime Running Lamps (DRL) Control Module C2 - 8-Pin Connector (Blue)

G00172333

Courtesy of GENERAL MOTORS CORP.
