Door Lock Switch (LH & RH)

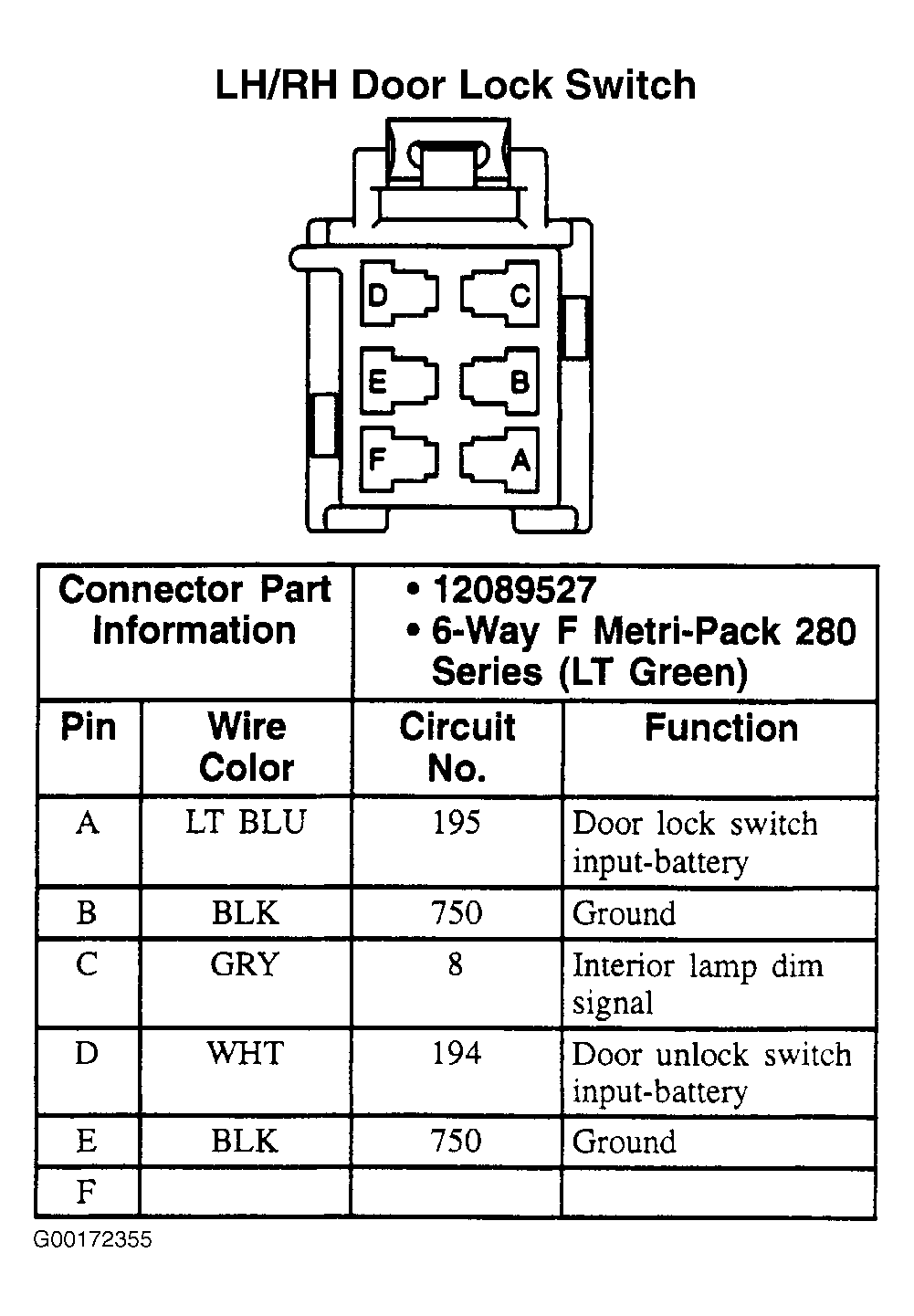

Fig 1: Door Lock Switch (LH & RH) - 6-Pin Connector (Light Green)
G00172355Courtesy of GENERAL MOTORS CORP.
