Electronic Brake Control Module/Electronic Brake & Traction Control Module C2 & C3

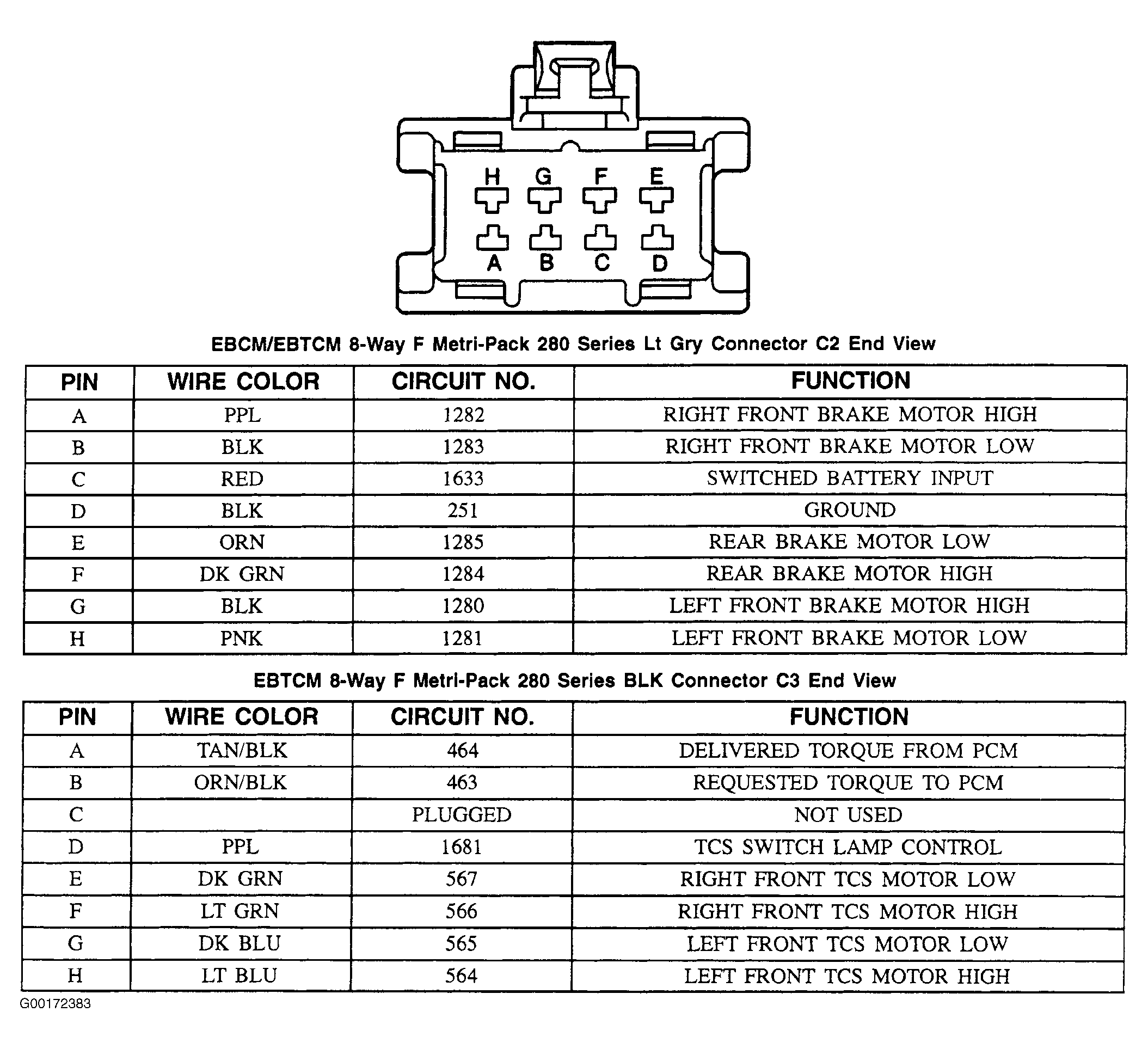

Fig 1: Electronic Brake Control Module/Electronic Brake & Traction Control Module C2 & C3 - 8-Pin Connector (Light Gray) & 8-Pin Connector (Black)
G00172383Courtesy of GENERAL MOTORS CORP.
