Home >> Chevrolet >> 1997 >> Venture LS >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Outside Rearview Mirror Remote Control Switch

Outside Rearview Mirror Remote Control Switch

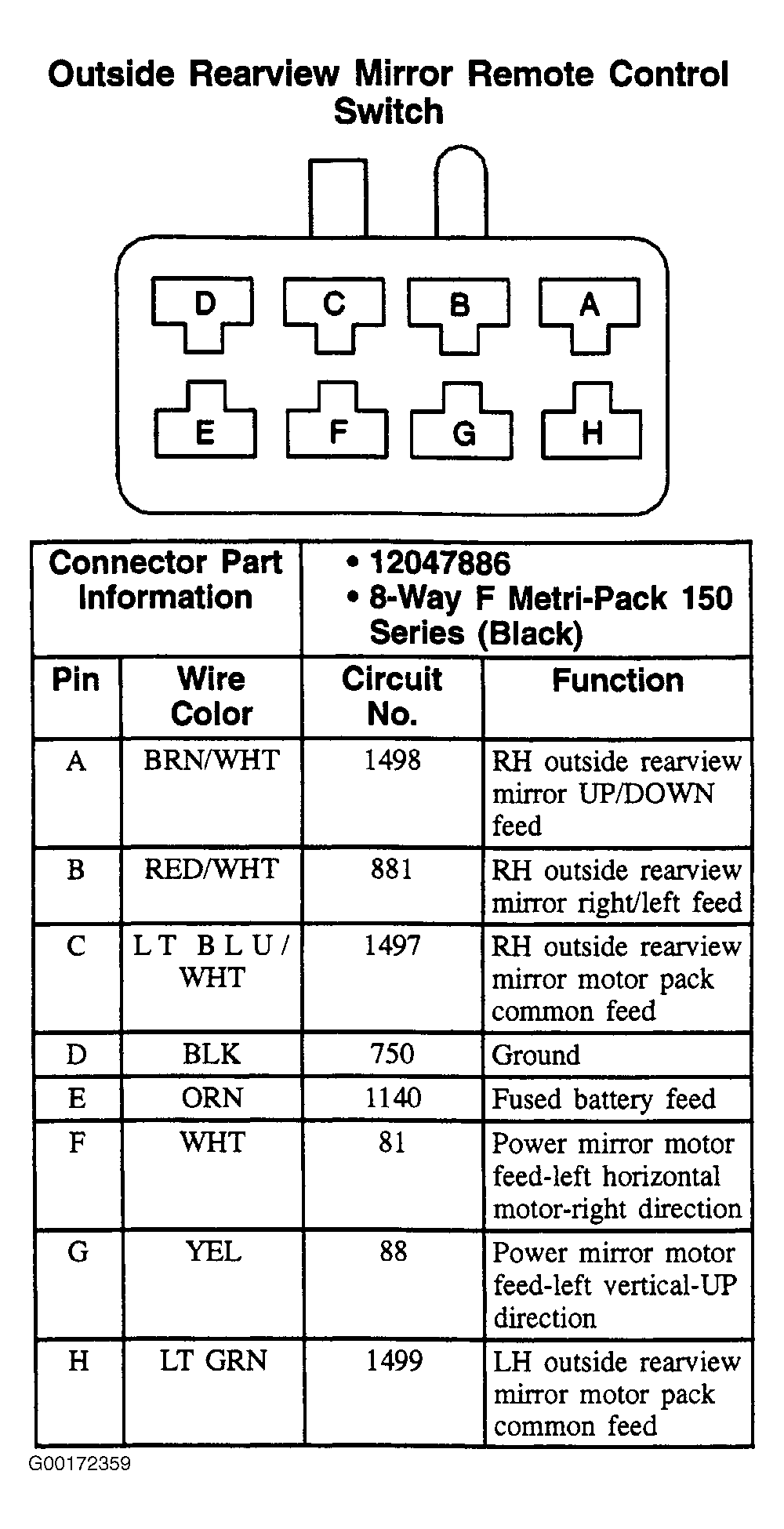

Fig 1: Outside Rearview Mirror Remote Control Switch - 8-Pin Connector (Black)

G00172359

Courtesy of GENERAL MOTORS CORP.
