Home >> Chevrolet >> 1997 >> Venture LS >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Rear Window Wiper Motor

Rear Window Wiper Motor

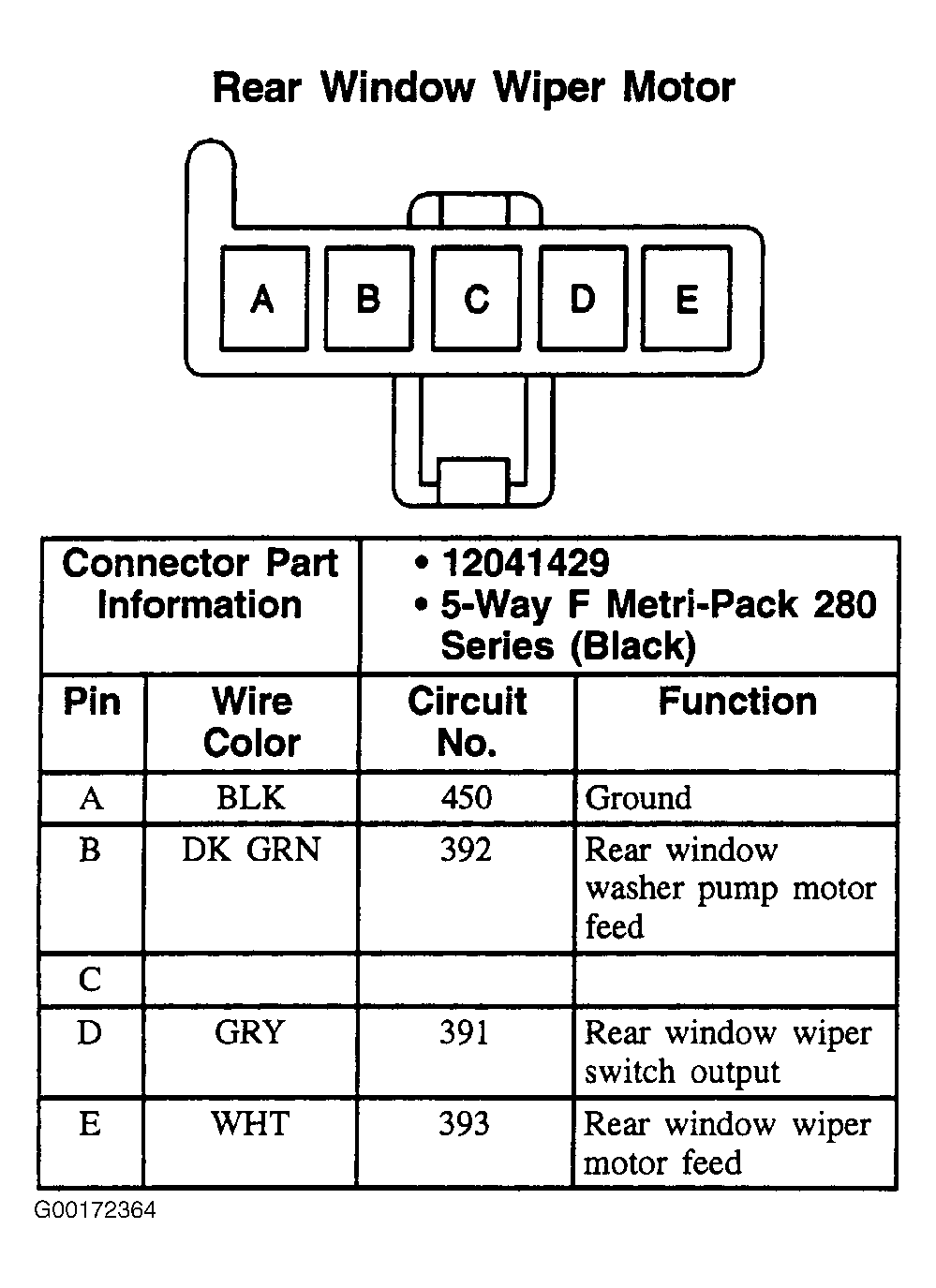

Fig 1: Rear Window Wiper Motor - 5-Pin Connector (Black)

G00172364

Courtesy of GENERAL MOTORS CORP.
