Connector Terminal Identification
>>
Stop Lamp Switch C1
Stop Lamp Switch C1

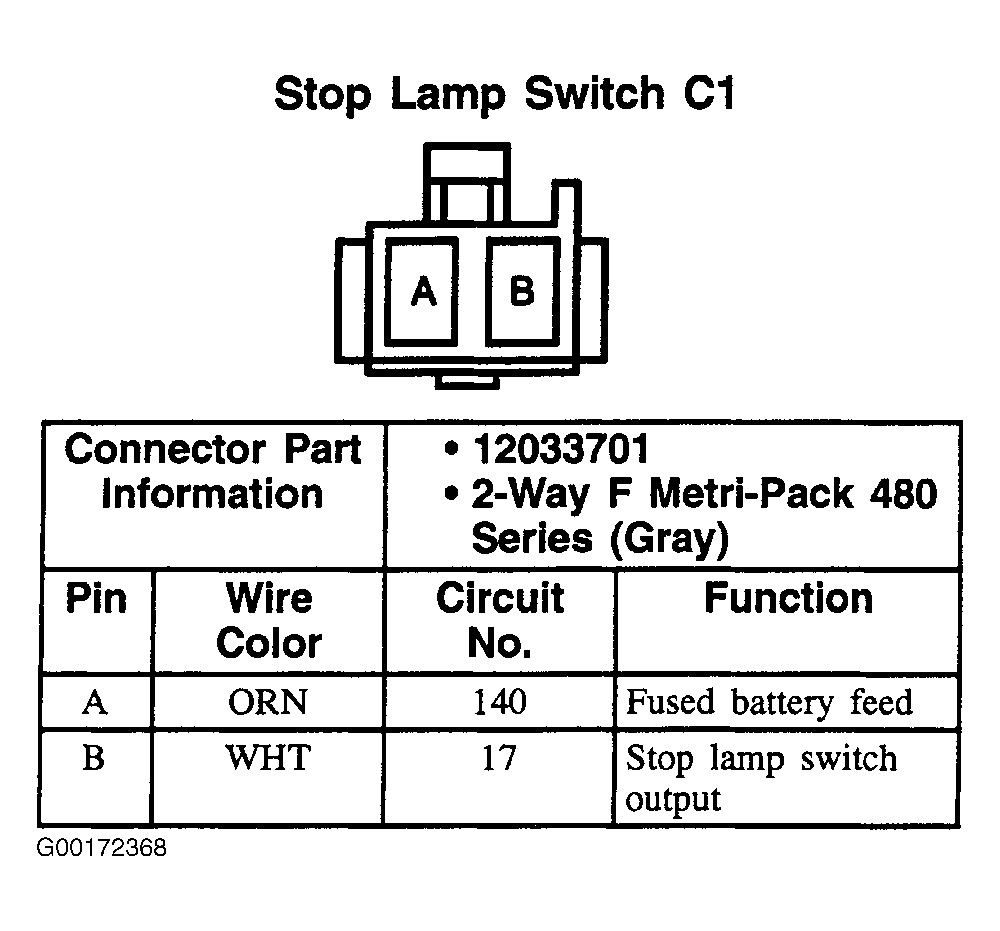

Fig 1: Stop Lamp Switch C1 - 2-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
