Transaxle Range Switch C2

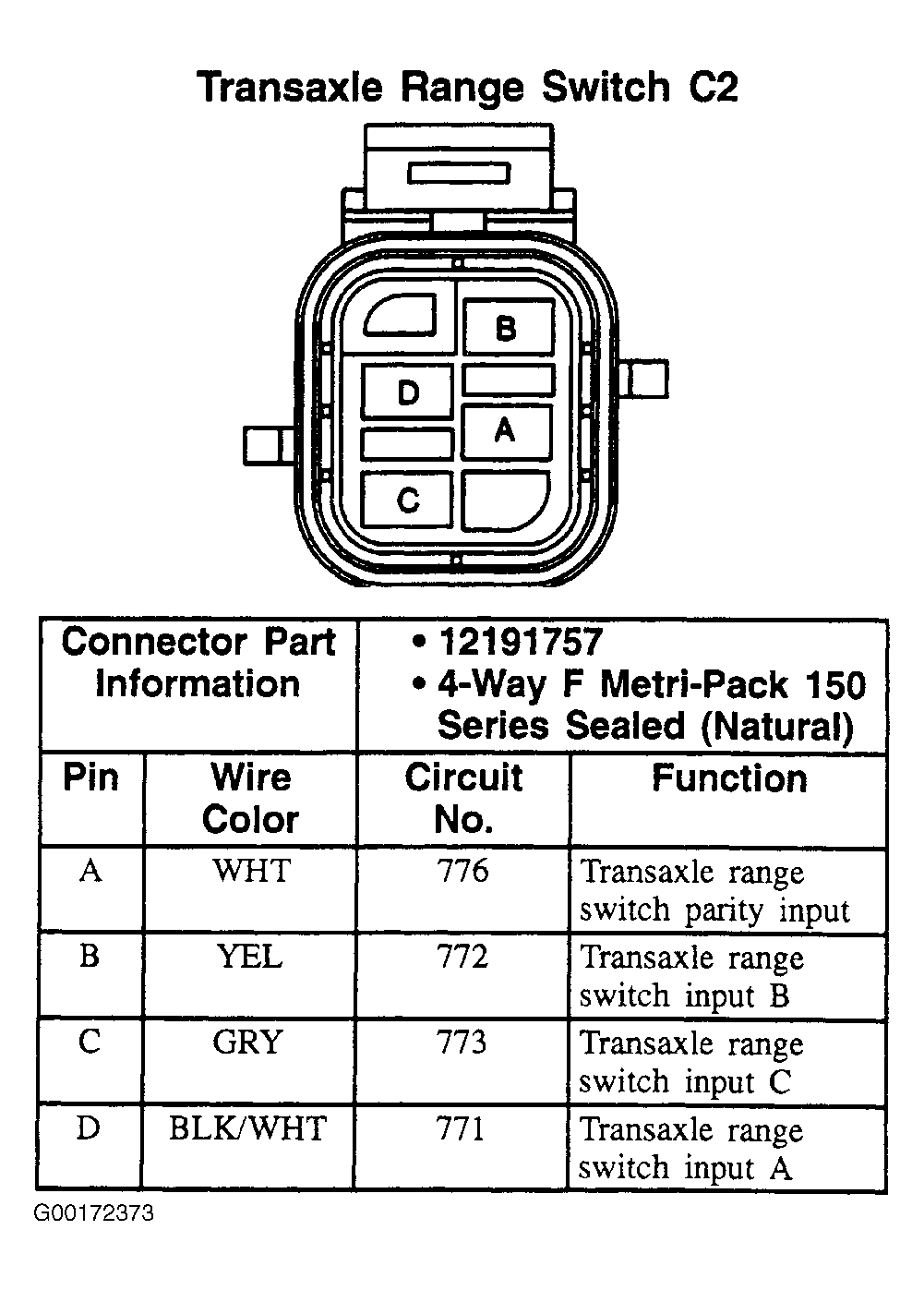

Fig 1: Transaxle Range Switch C2 - 4-Pin Connector (Natural)
G00172373Courtesy of GENERAL MOTORS CORP.
