PCM Connector C1

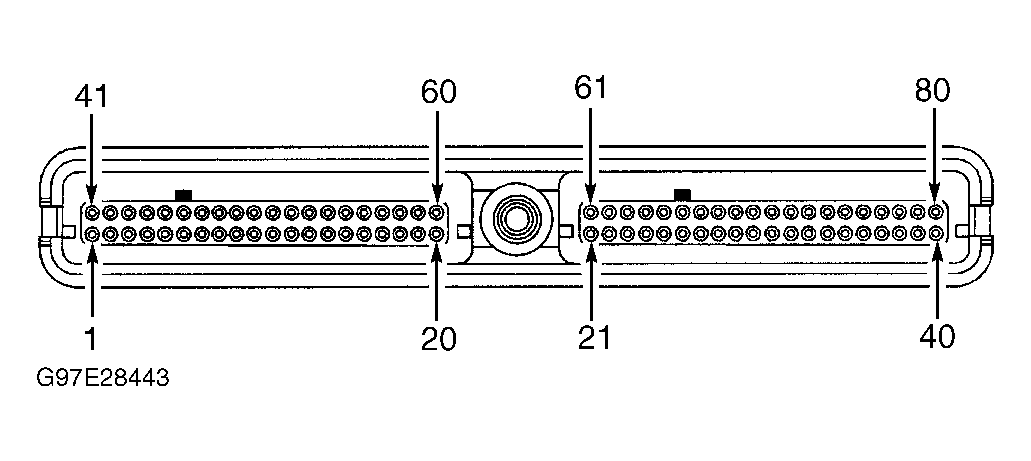

Fig 1: PCM 80-Pin Connector C1 - Terminal Identification
G97E28443Courtesy of GENERAL MOTORS CORP.

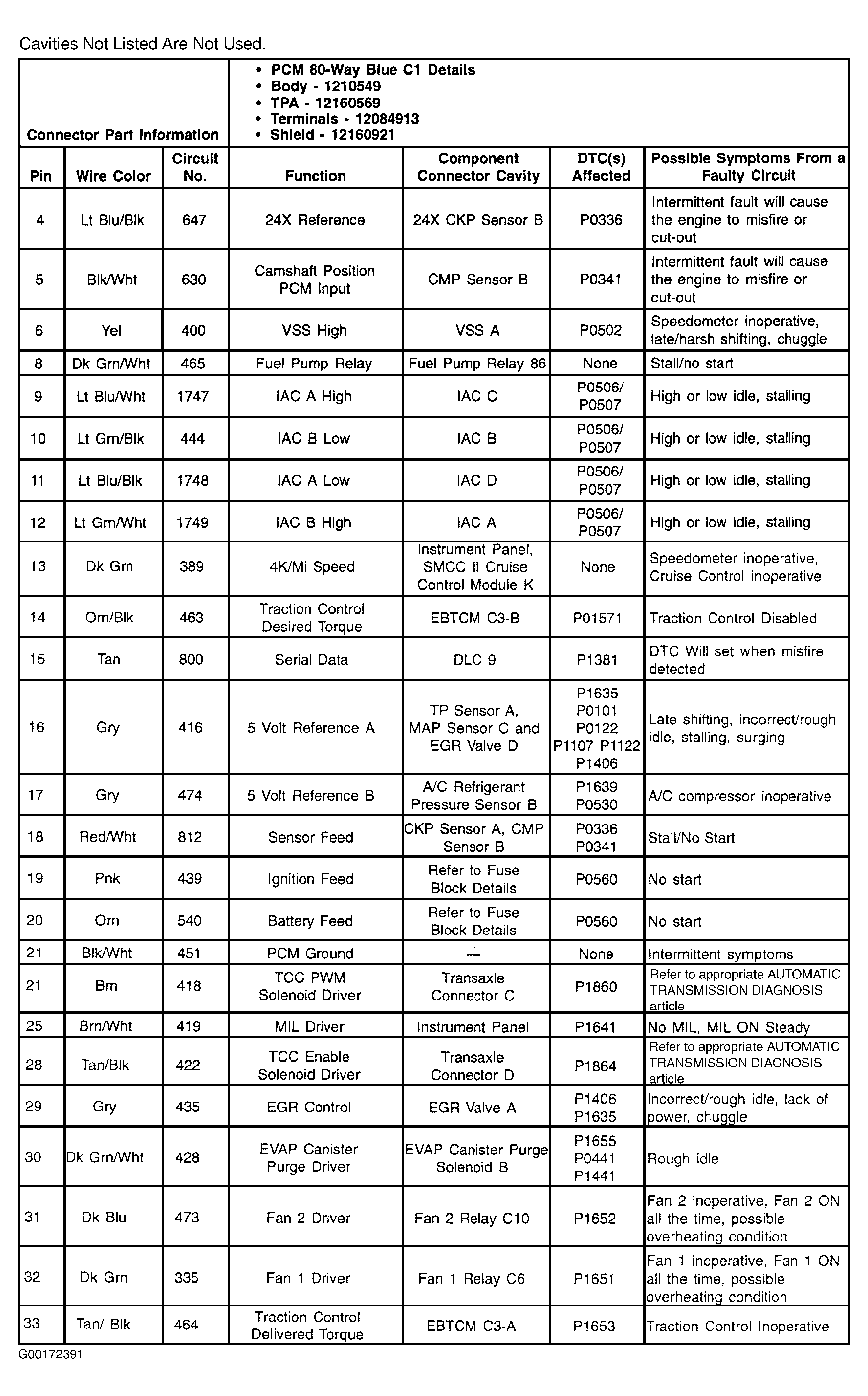

Fig 2: PCM 80-Pin Connector C1 (Blue) - Legend (1 Of 2)
G00172391Courtesy of GENERAL MOTORS CORP.

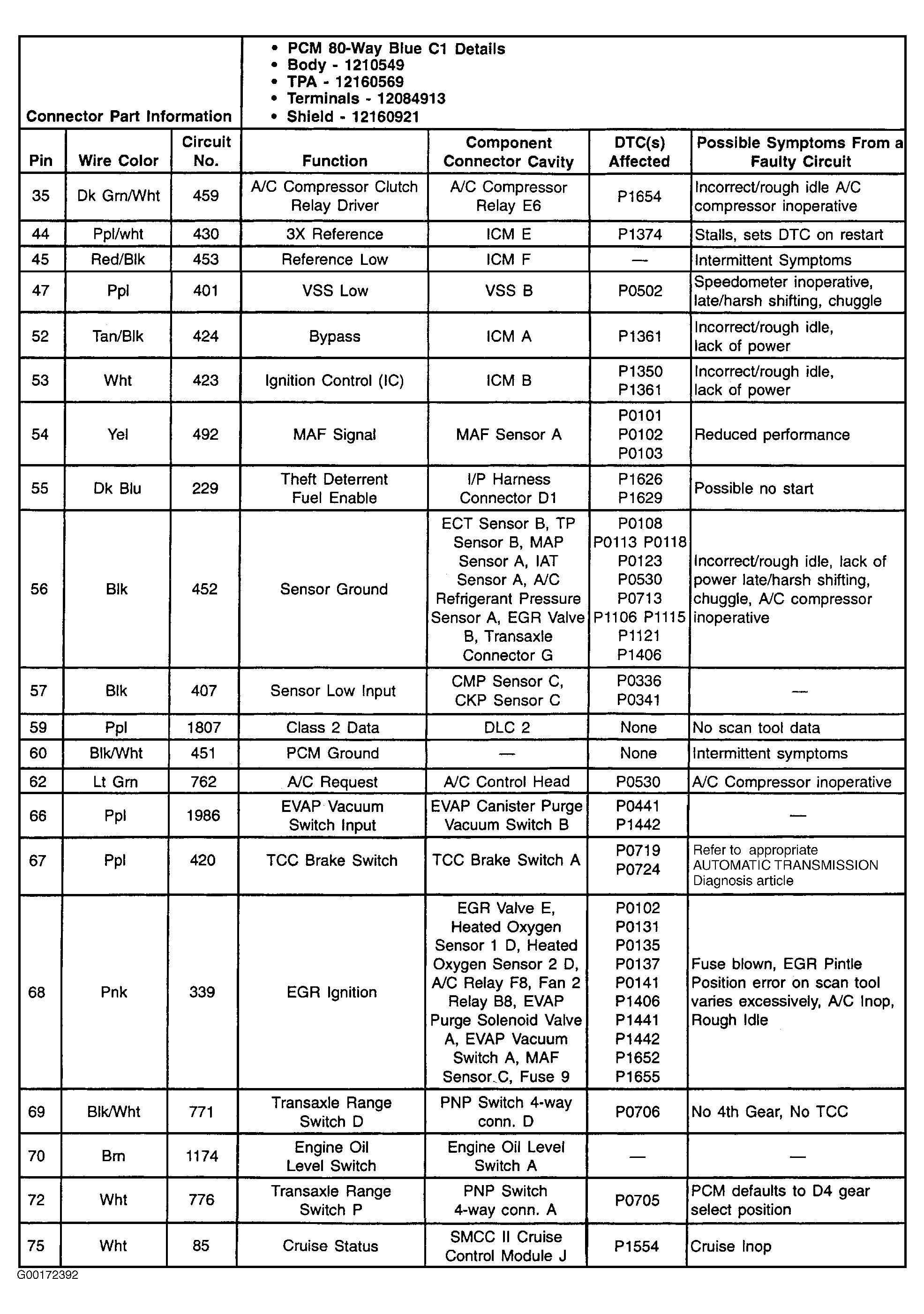

Fig 3: PCM 80-Pin Connector C1 (Blue) - Legend (2 Of 2)
G00172392Courtesy of GENERAL MOTORS CORP.
