PCM Connector C2
PCM Connector C2

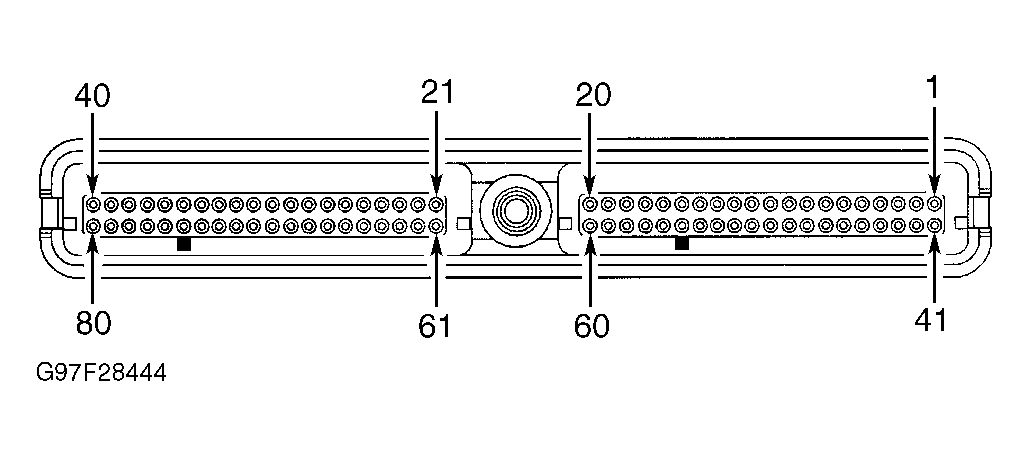

Fig 1: PCM 80-Pin Connector C2 - Terminal Identification
Courtesy of GENERAL MOTORS CORP.

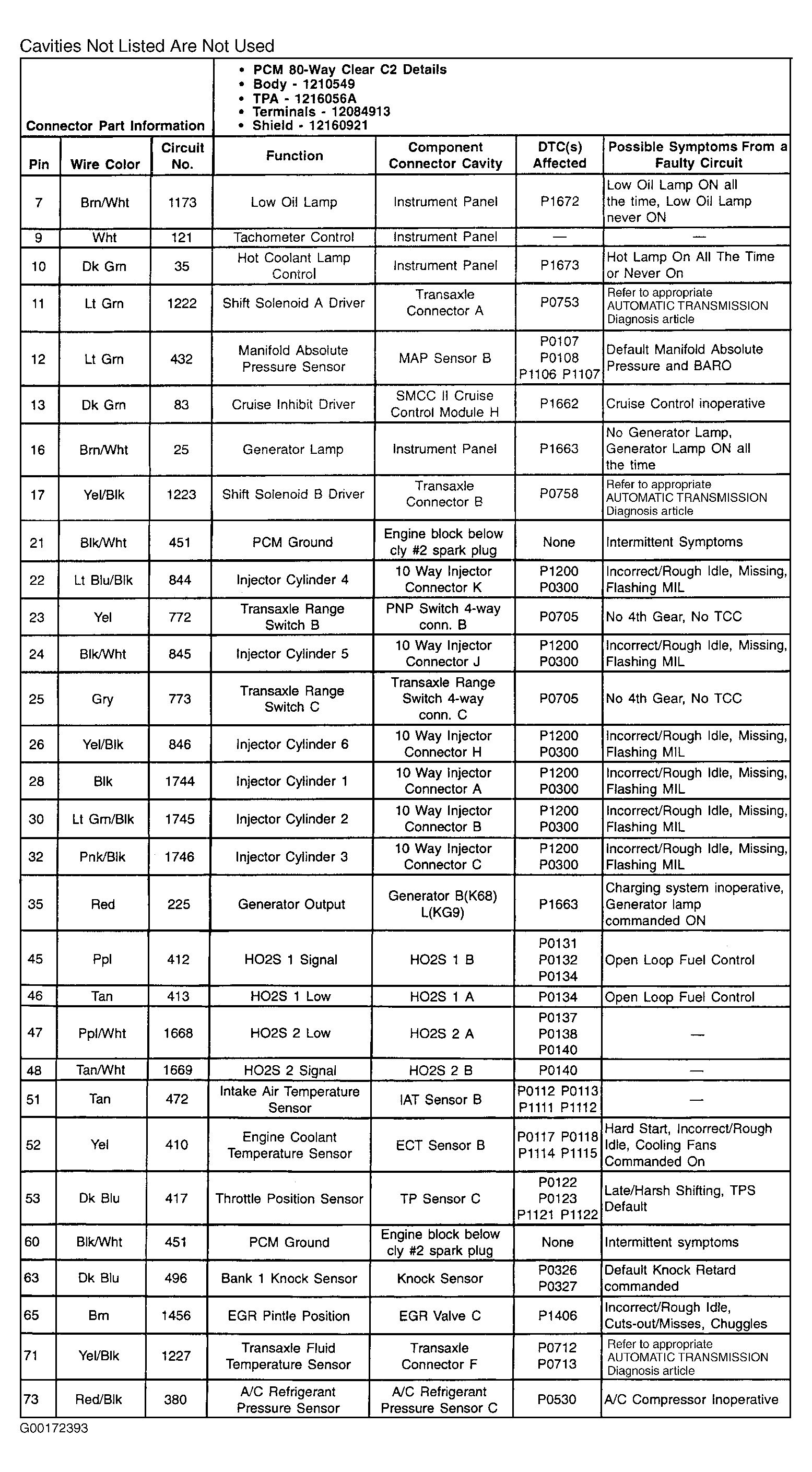

Fig 2: PCM 80-Pin Connector C2 (Clear) - Legend
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
