Component Locations

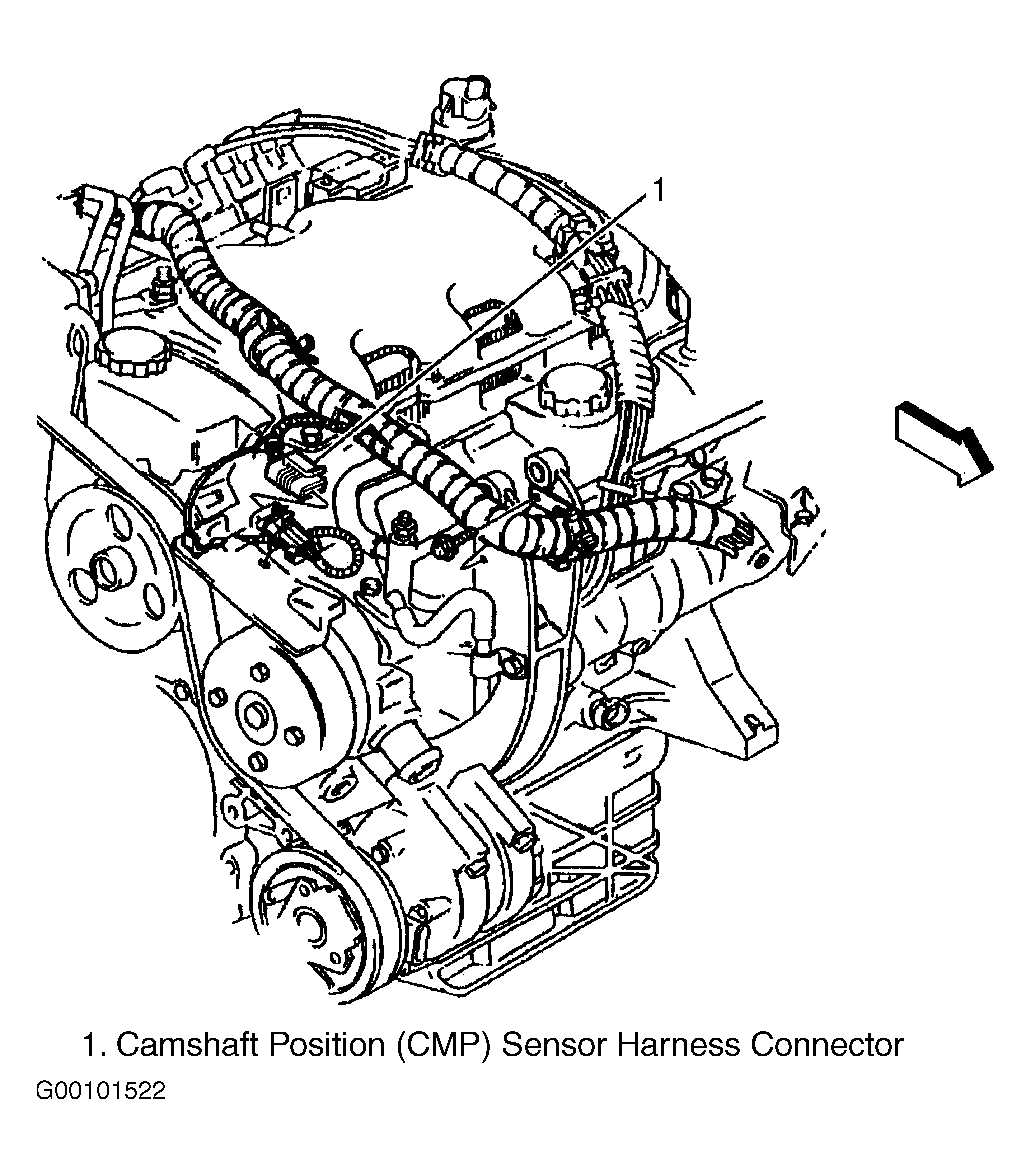

Fig 1: Locating CMP Sensor

Courtesy of GENERAL MOTORS CORP.

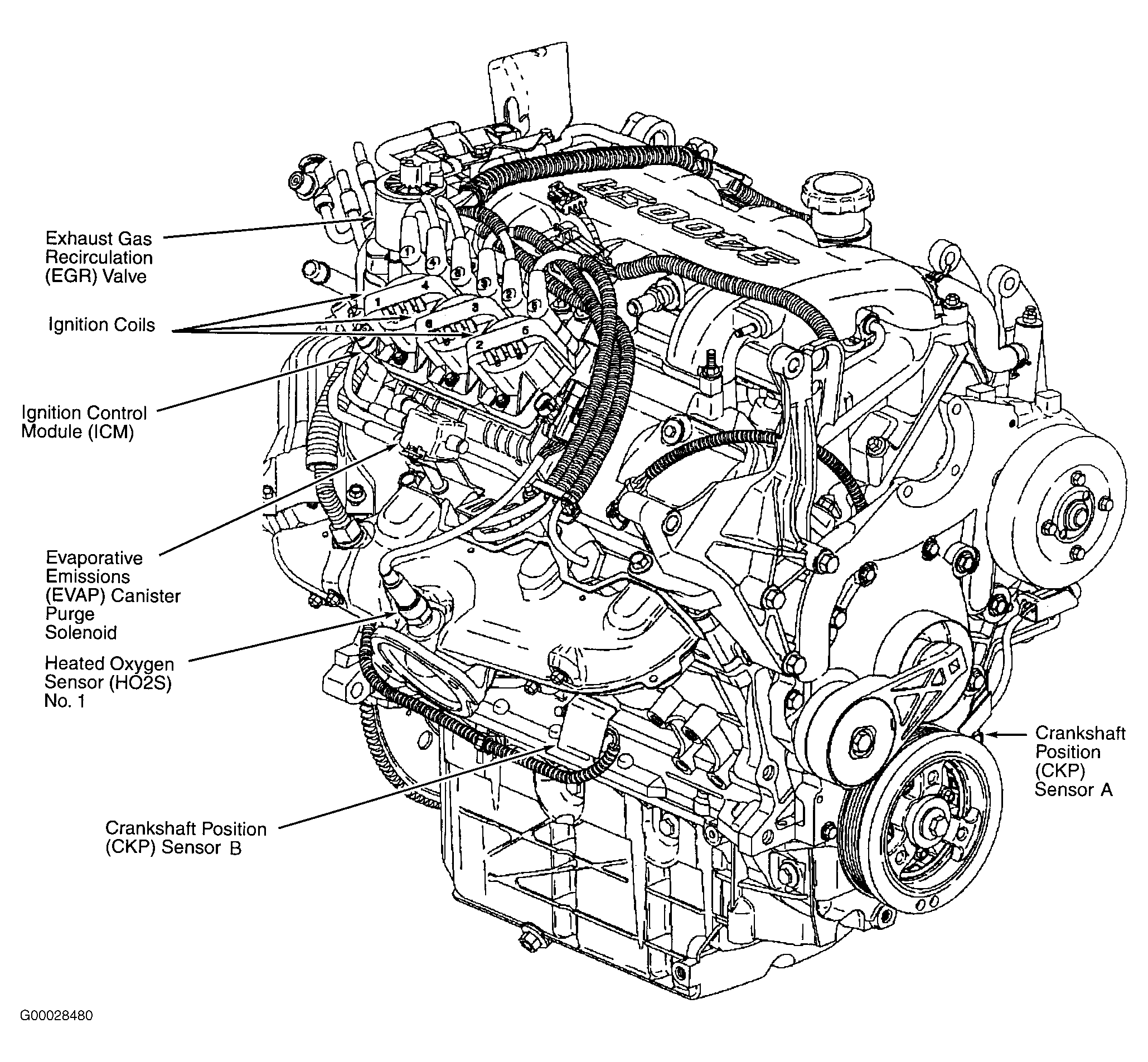

Fig 2: Locating CKP "A" & CKP "B" Sensors, EGR Valve, EVAP Purge Solenoid, HO2S Sensor 1 & Ignition Coils

Courtesy of GENERAL MOTORS CORP.

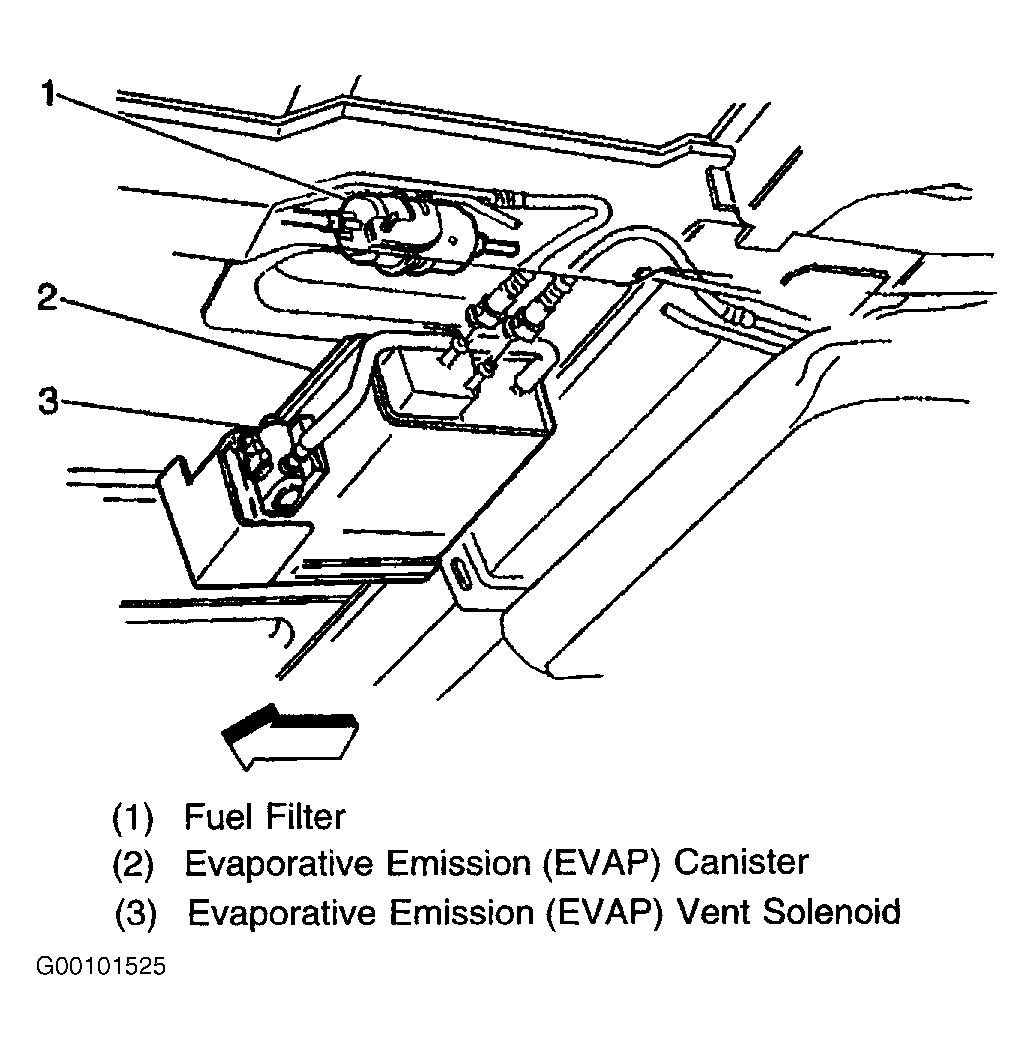

Fig 3: Locating EVAP Canister & EVAP Vent Solenoid

Courtesy of GENERAL MOTORS CORP.

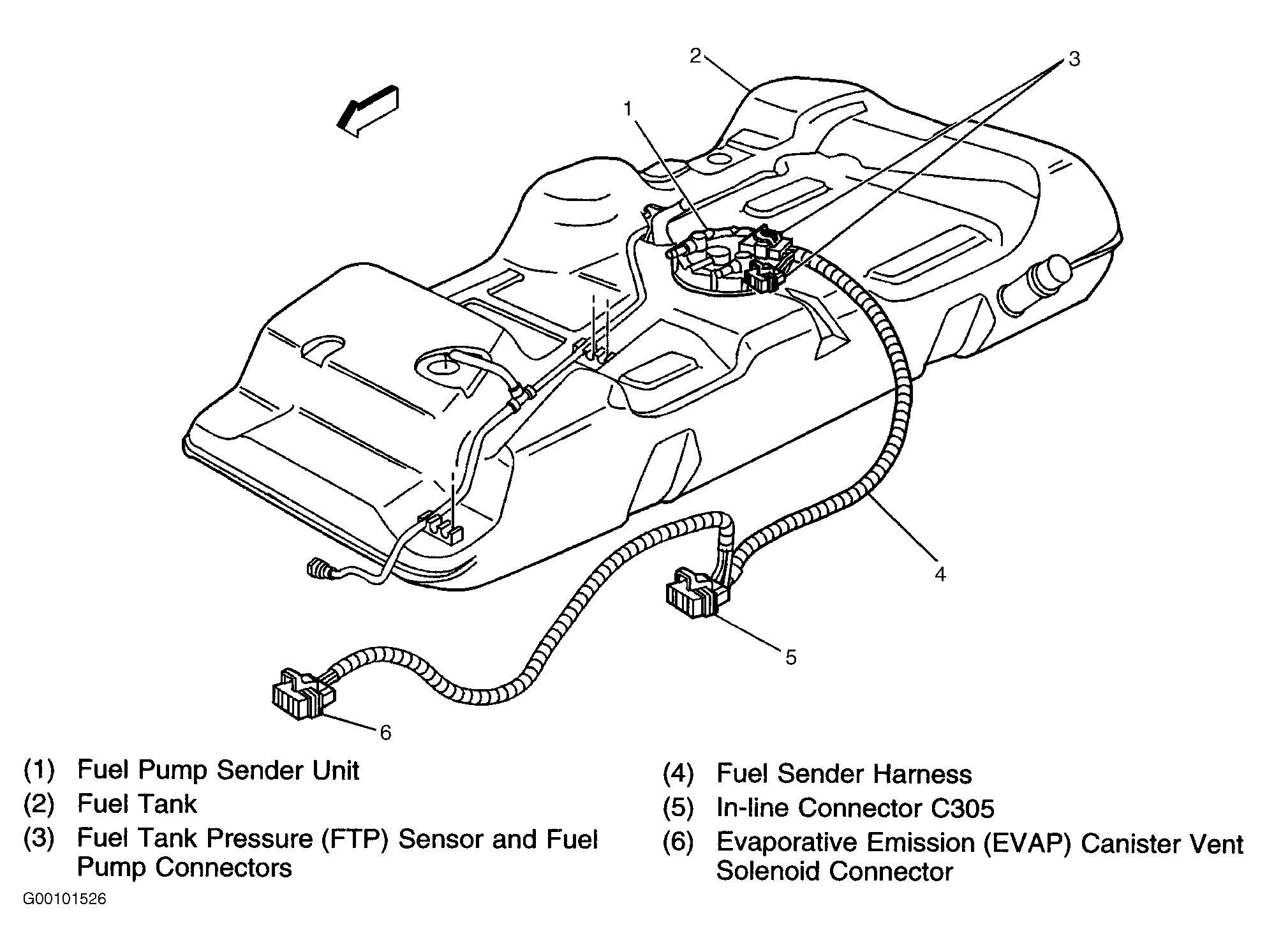

Fig 4: Locating Fuel Sender & FTP Sensor

Courtesy of GENERAL MOTORS CORP.

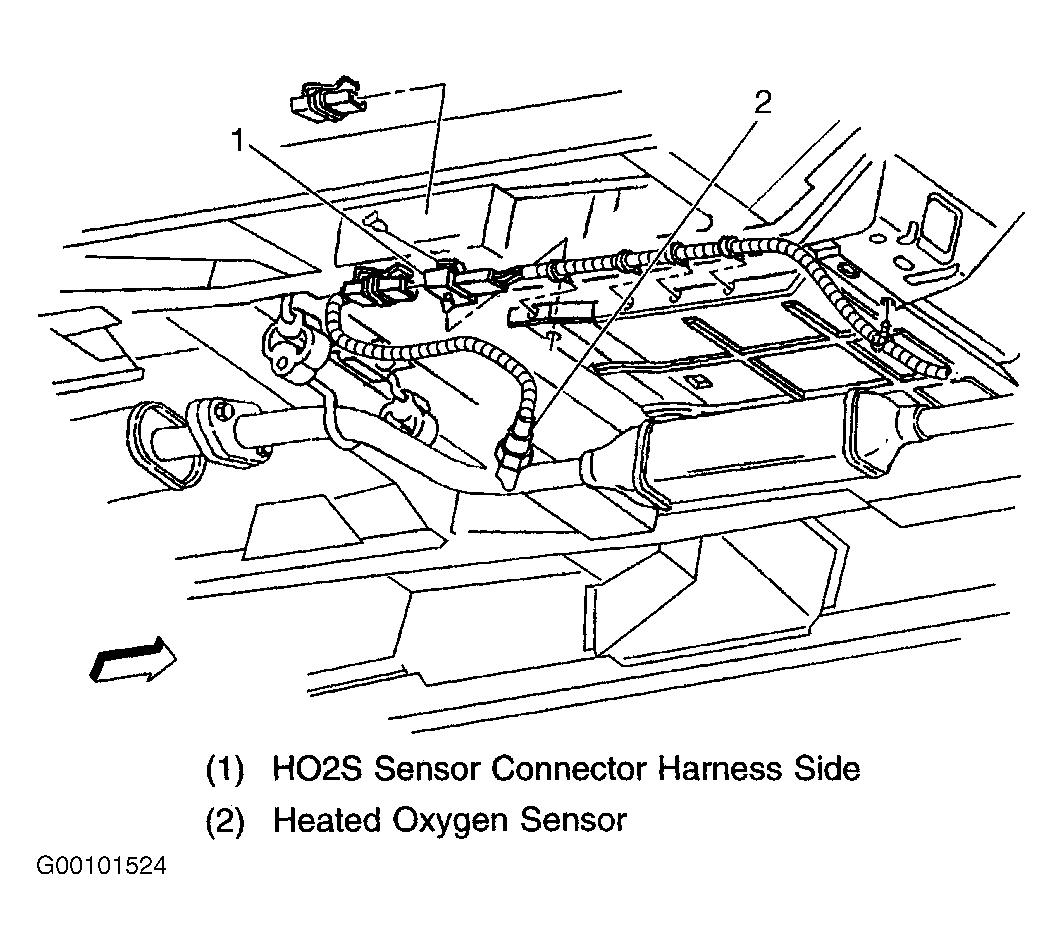

Fig 5: Locating HO2S Sensor 2

Courtesy of GENERAL MOTORS CORP.

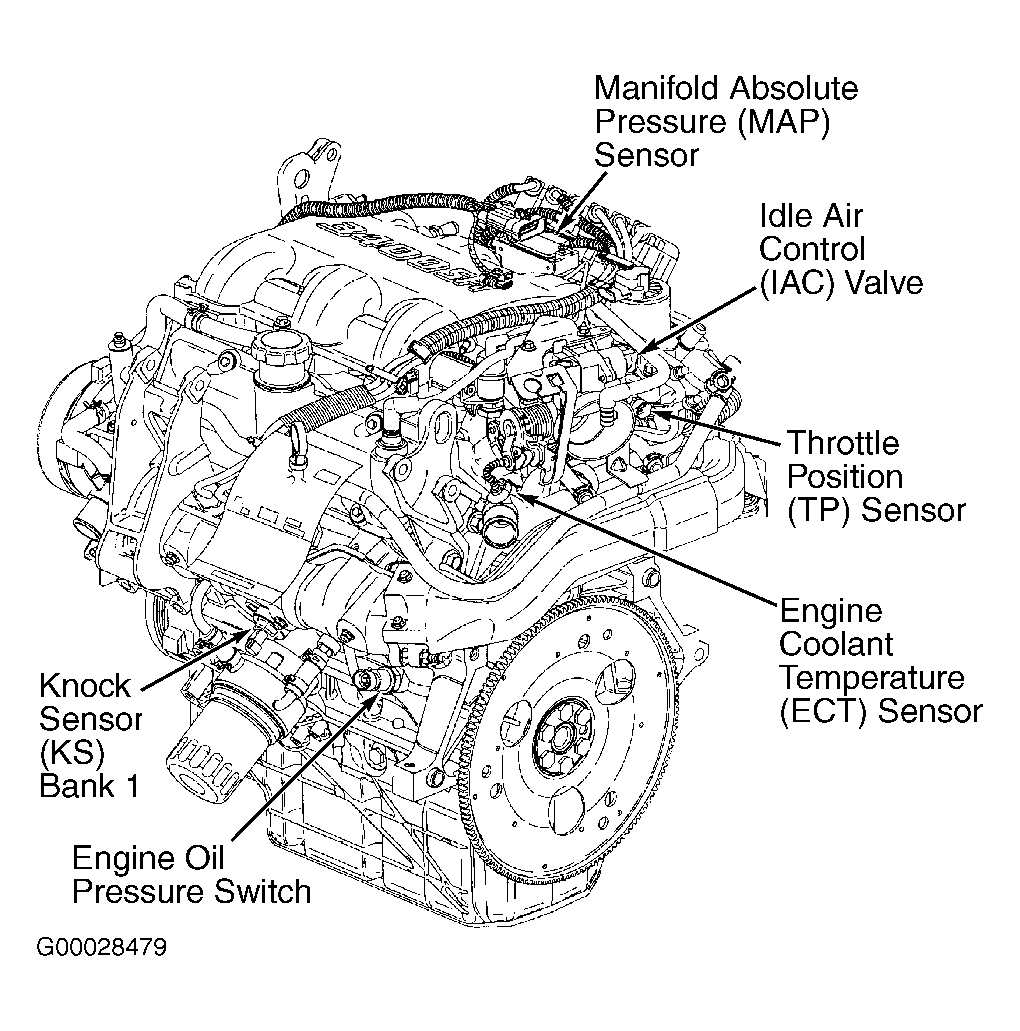

Fig 6: Locating IAC Valve & ECT, KS, MAP & TP Sensors

Courtesy of GENERAL MOTORS CORP.

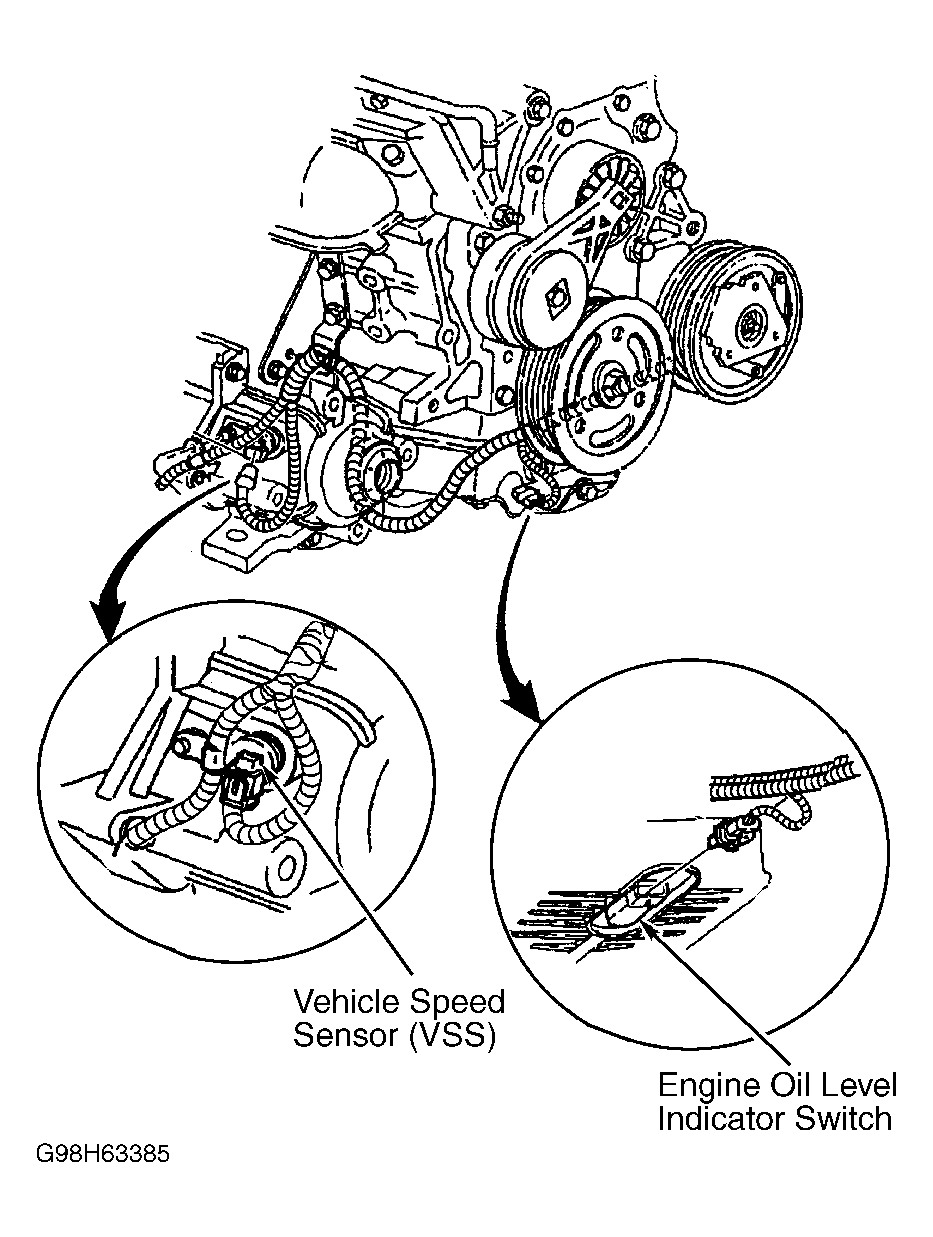

Fig 7: Locating Oil Level Switch & VSS

Courtesy of GENERAL MOTORS CORP.

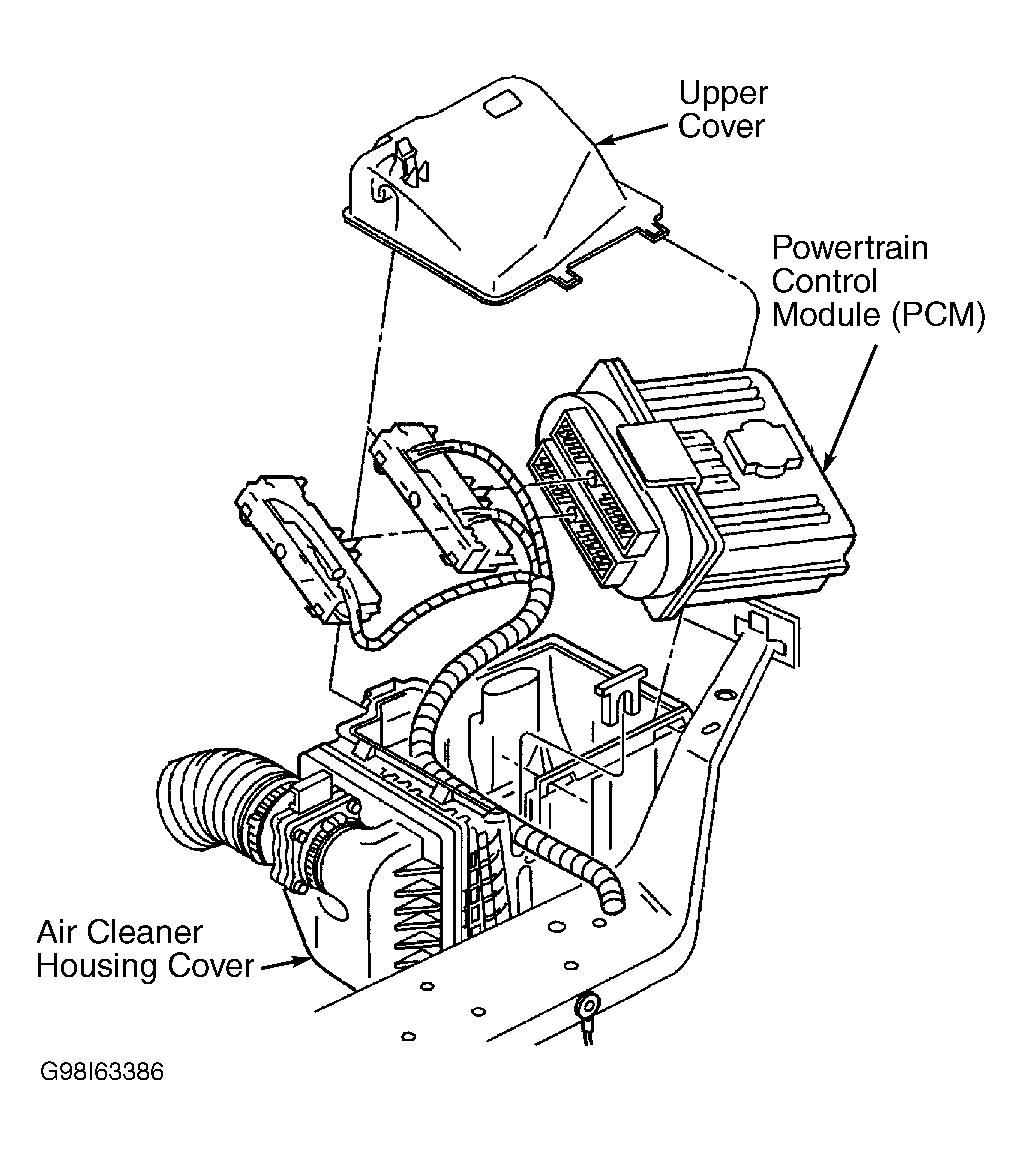

Fig 8: Locating PCM

Courtesy of GENERAL MOTORS CORP.
