Removal Procedure

  1. Remove the coolant recovery reservoir. Refer to Coolant Recovery Reservoir Replacement in Engine Cooling.
  2. Remove the drive belt. Refer to Drive Belt Replacement (L32) or Drive Belt Replacement (L67) in Engine Mechanical 3.8L.
  3. Disconnect the electrical connector (2) from the camshaft position sensor (1).
    4. Fig 1: Disconnecting Electrical Connector From CMP Sensor
    GM389047Courtesy of GENERAL MOTORS CORP.
  4. Remove the camshaft position sensor bolt.
  5. Remove the camshaft position sensor from the engine front cover.

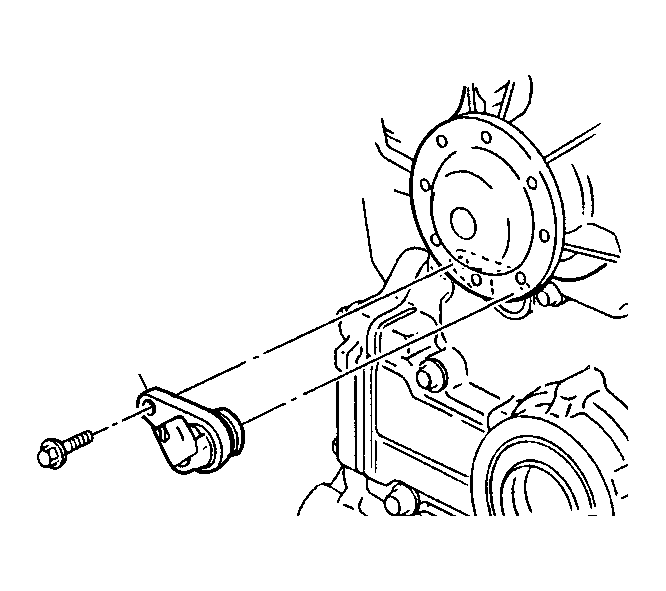

    6. Fig 2: Removing CMP Sensor
    GM12305Courtesy of GENERAL MOTORS CORP.
