Installation Procedure

NOTE: Refer to Fastener Notice in Cautions and Notices.

IMPORTANT: DO NOT apply thread sealant to sensor threads. The sensor is coated at factory and applying additional sealant will affect the sensors ability to detect detonation.

Install the knock sensor (1).
Tighten: Tighten the knock sensor to 19 N.m (14 lb ft).
Connect the knock sensor electrical connector (2).

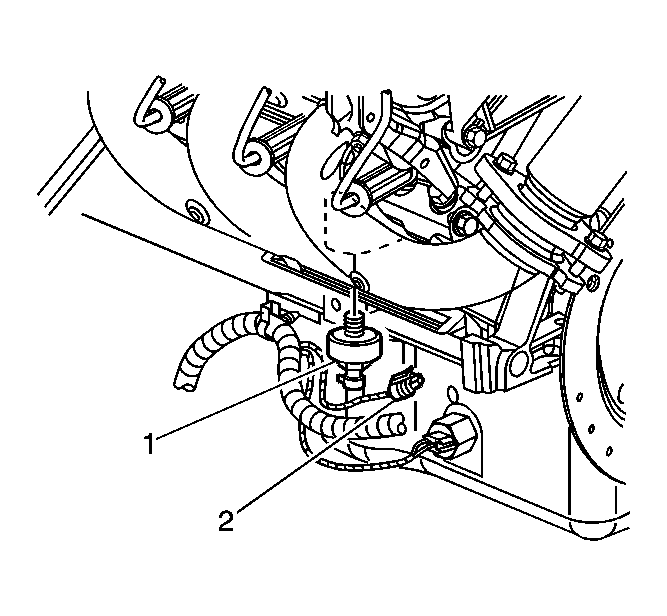

Fig 1: Installing KS Sensor (1)

Courtesy of GENERAL MOTORS CORP.

Lower the vehicle.
Fill the cooling system. Refer toDraining and Filling Cooling System in Engine Cooling.
