Rear Toe Adjustment

Perform a preliminary inspection before any attempt is made to change or correct the wheel alignment factors. Refer to Preliminary Alignment Inspection .

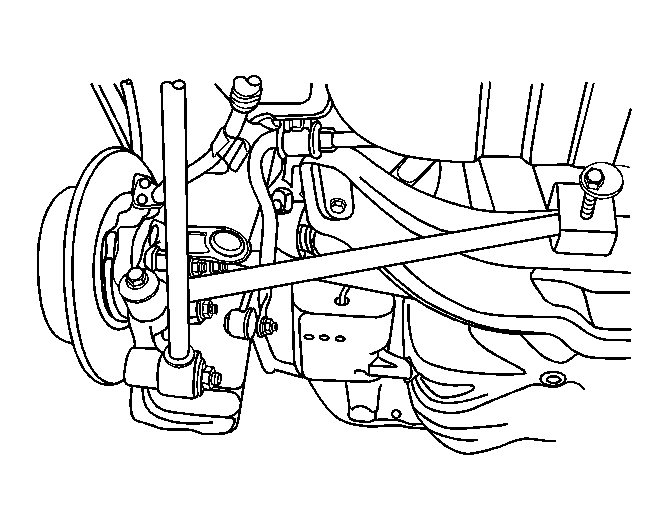

Fig 1: Identifying Parallel Link Cam Bolt And Crossmember

Courtesy of GENERAL MOTORS CORP.

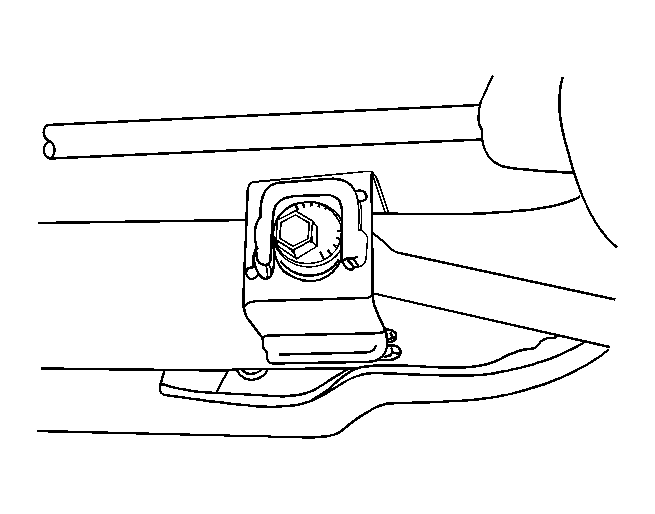

Fig 2: View Of Parallel Link Adjustment Bolt

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Rotate the parallel link adjustment bolts until the preferred rear toe specification is obtained. Refer to Wheel Alignment Specifications .
Tighten: Tighten the bolt to 40 N.m (30 lb ft) .

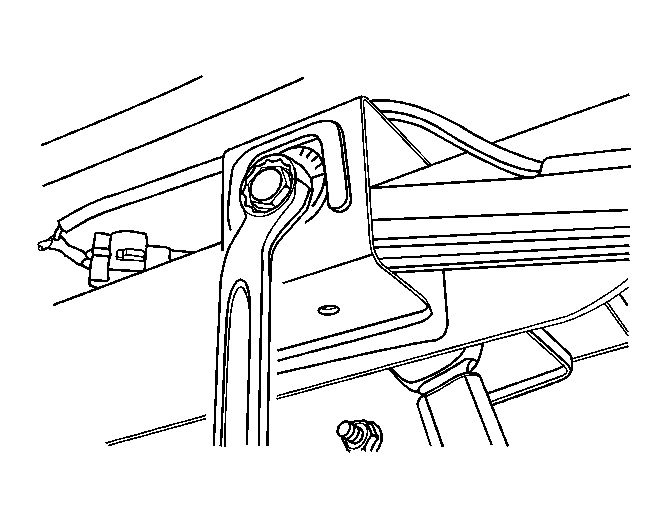

Fig 3: Holding Parallel Link Adjustment Bolt

Courtesy of GENERAL MOTORS CORP.

Hold the parallel link adjustment bolts and tighten the parallel link-to-crossmember nuts.
Tighten: Tighten the parallel link-to-crossmember nuts to 90 N.m (66 lb ft) .
