Shift Lock Control Schematics

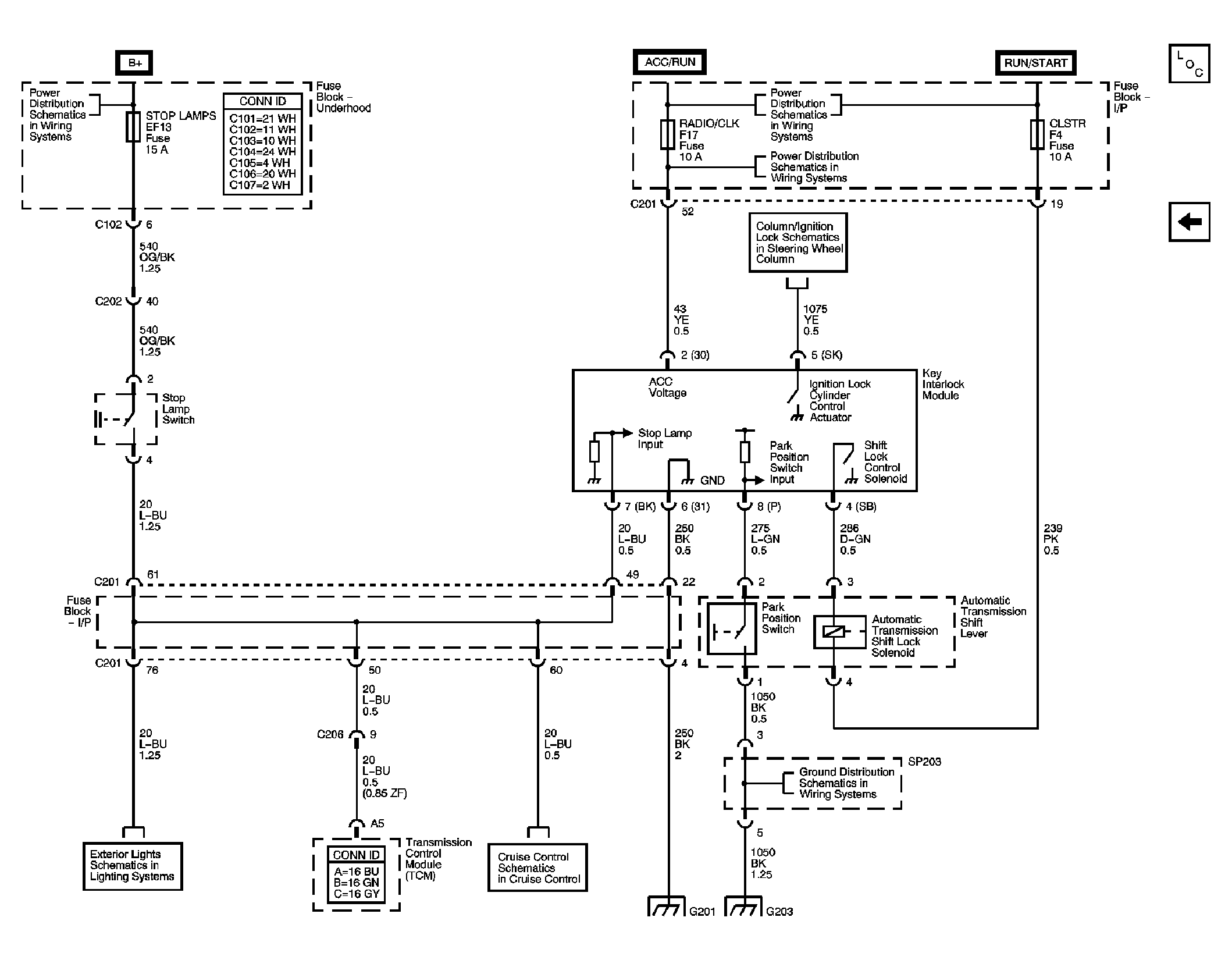

Fig 1: Shift Lock Control Schematic With Ignition Lock Cylinder Control Actuator
GM1376568Courtesy of GENERAL MOTORS CORP.
Fig 2: Shift Lock Control Schematics Without Ignition Lock Cylinder Control Actuator
GM1376560Courtesy of GENERAL MOTORS CORP.
