Installation Procedure

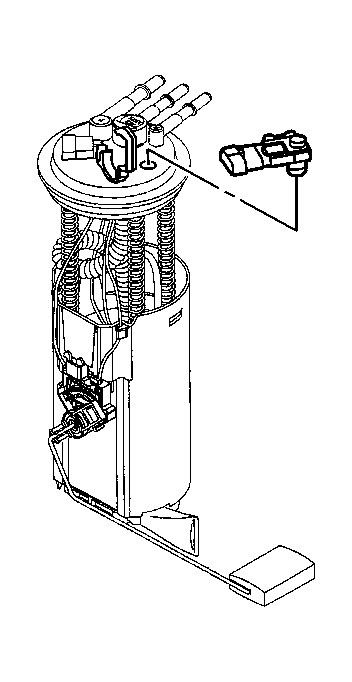

    Fig 1: View Of Fuel Tank Pressure Sensor
    GM61945Courtesy of GENERAL MOTORS CORP.
  1. Install the FTP sensor.
    2. Fig 2: View Of Fuel Tank Pressure (FTP) Sensor Connector
    GM373185Courtesy of GENERAL MOTORS CORP.
  2. Install the FTP sensor electrical connector.
  3. Install the pickup box. Refer to Pickup Box Replacement in Body Rear End.
