Installation Procedure

  1. Install the 1 cylinder spark plug wire (3) to the ignition coil (1) or the 2 cylinder spark plug wire (2) to the ignition coil (1).

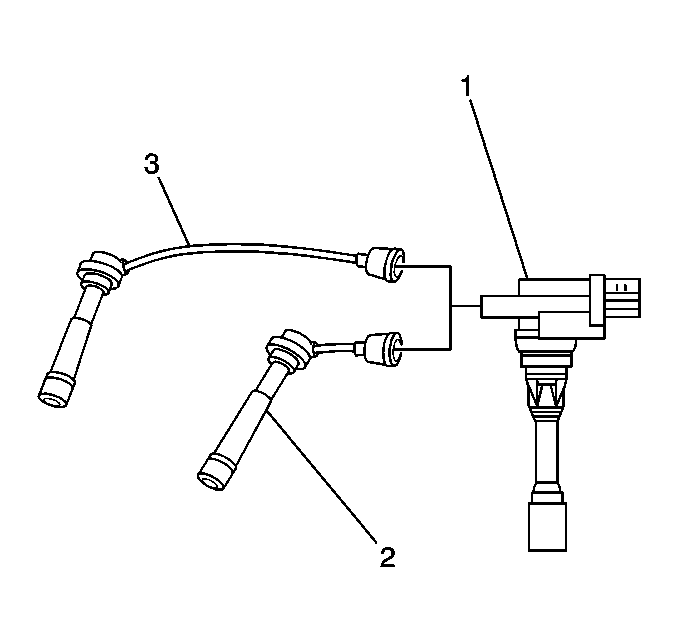

    2. Fig 1: View Of 1 & 2 Cylinder Spark Plug Wires & Ignition Coil
    GM441353Courtesy of GENERAL MOTORS CORP.
  2. Install the ignition coil 1 (2) or the ignition coil 2 (3) to the valve cover.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Secure the ignition coil 1 (2) or the ignition coil 2 (3) to the valve cover with the two bolts (1).

    Tighten:  Tighten the ignition coil attaching bolts (1) to 10 N.m (89 lb in).

  4. Connect the electrical connector to the ignition coil.
  5. Connect the spark plug wire to the spark plug.

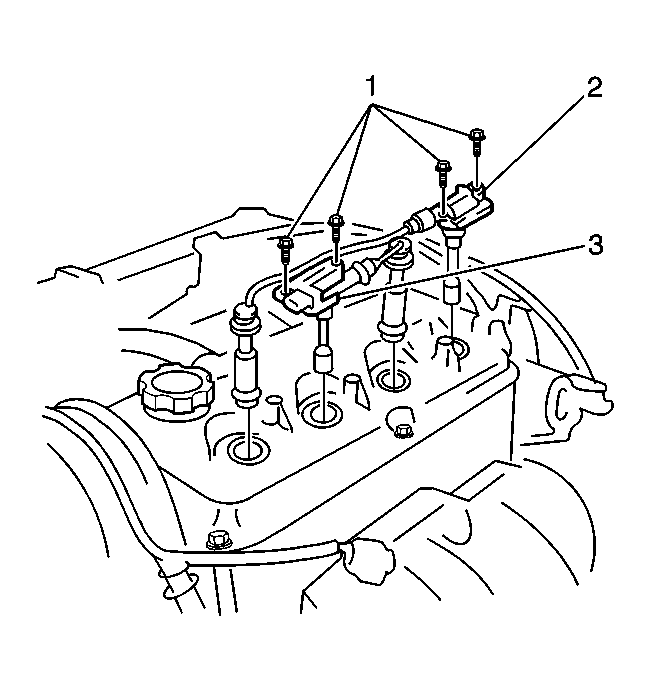

    6. Fig 2: View Of Ignition Coils 1 & 2, & Bolts
    GM482356Courtesy of GENERAL MOTORS CORP.
