Home >> Chevrolet >> 2004 >> Tracker RWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - 2.0L (Introduction) >> Repair Instructions >> Manifold Absolute Pressure (MAP) Sensor Replacement >> Installation Procedure

Installation Procedure

  1. Lubricate the seal on the MAP sensor vacuum port with clean engine oil.
  2. Install the MAP sensor (2) into the intake plenum.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Secure the MAP sensor to the intake plenum with the 2 bolts (1).

    Tighten:  Tighten the bolts to 3.5 N.m (30 lb in).

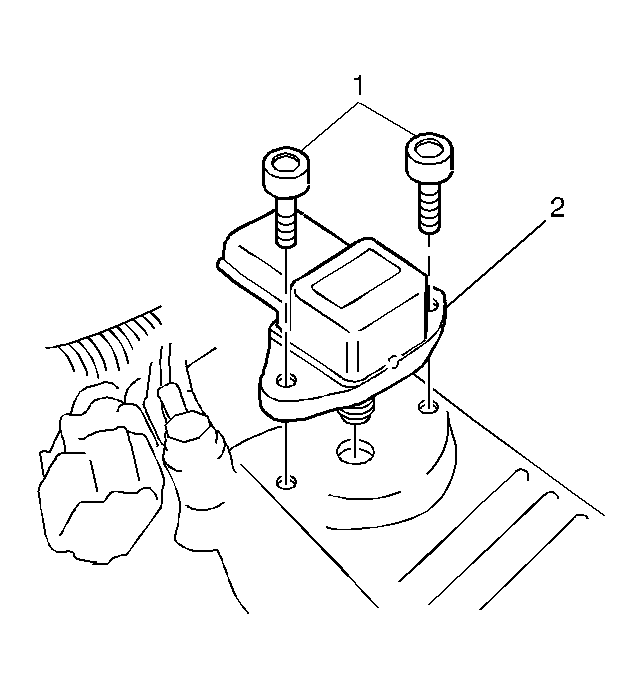

    4. Fig 1: View Of MAP Sensor & Attaching Bolts
    GM470743Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector (4) to the MAP sensor (1).

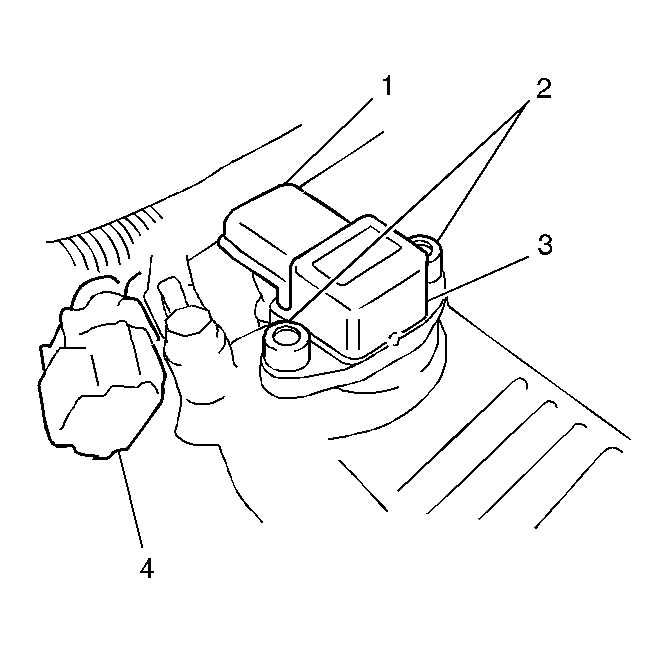

    5. Fig 2: View Of MAP Sensor & Electrical Connector
    GM455400Courtesy of GENERAL MOTORS CORP.
