Automatic Transmission Shift Lock Control Schematics

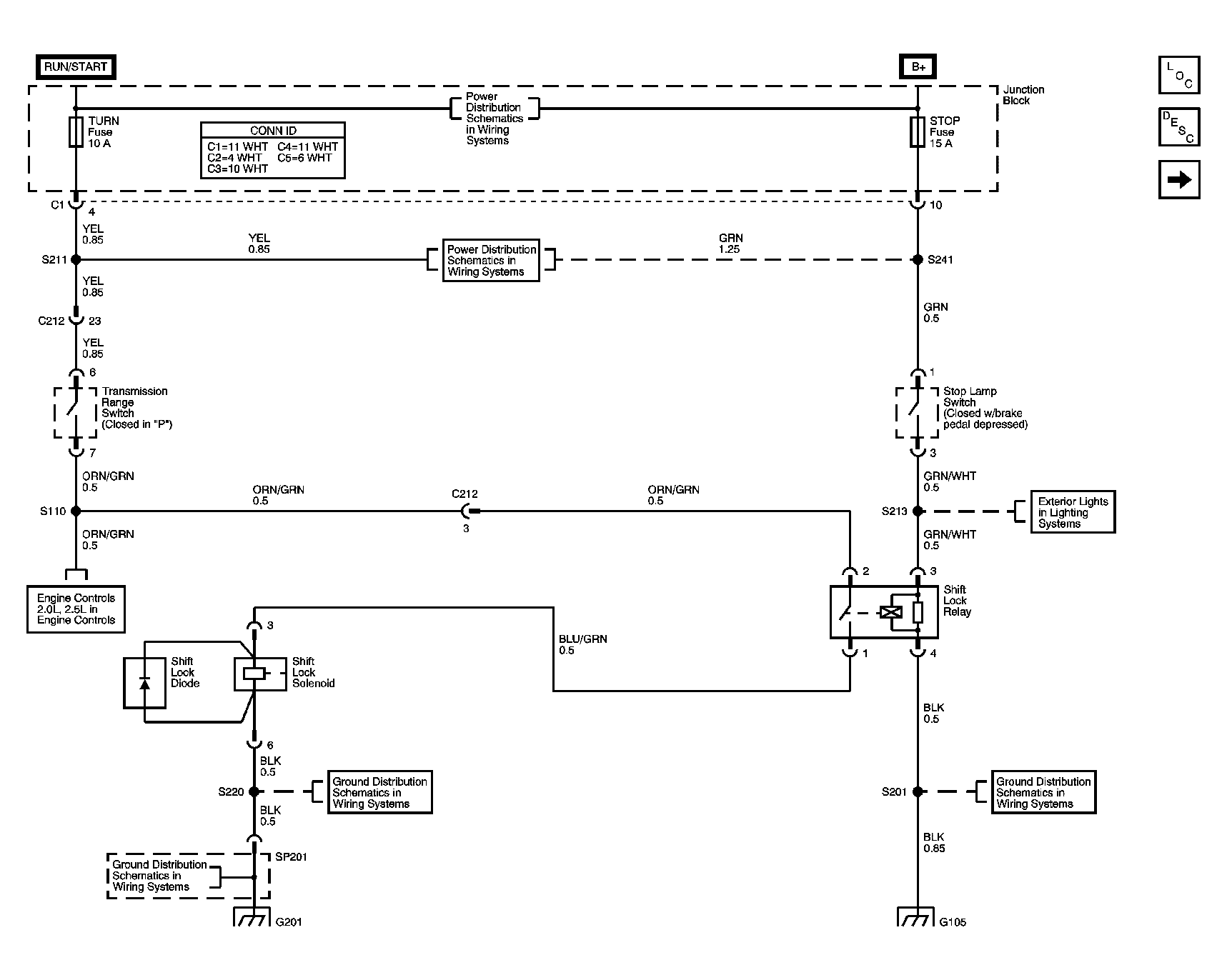

Fig 1: Shiftlock Control with Cruise Control Schematic

Courtesy of GENERAL MOTORS CORP.

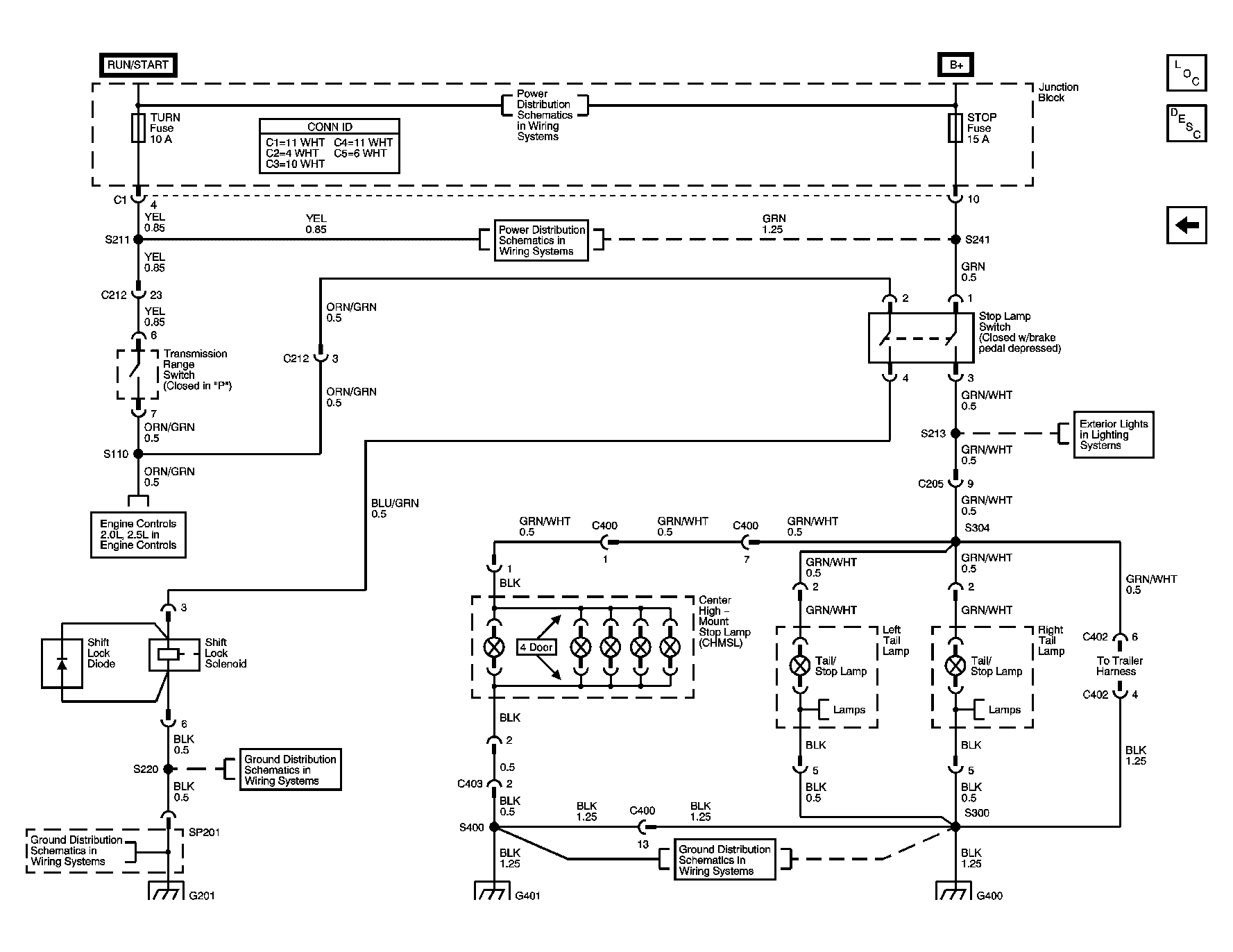

Fig 2: Shiftlock Control without Cruise Control Schematic

Courtesy of GENERAL MOTORS CORP.
