Automatic Transmission Shift Lock Control Schematics

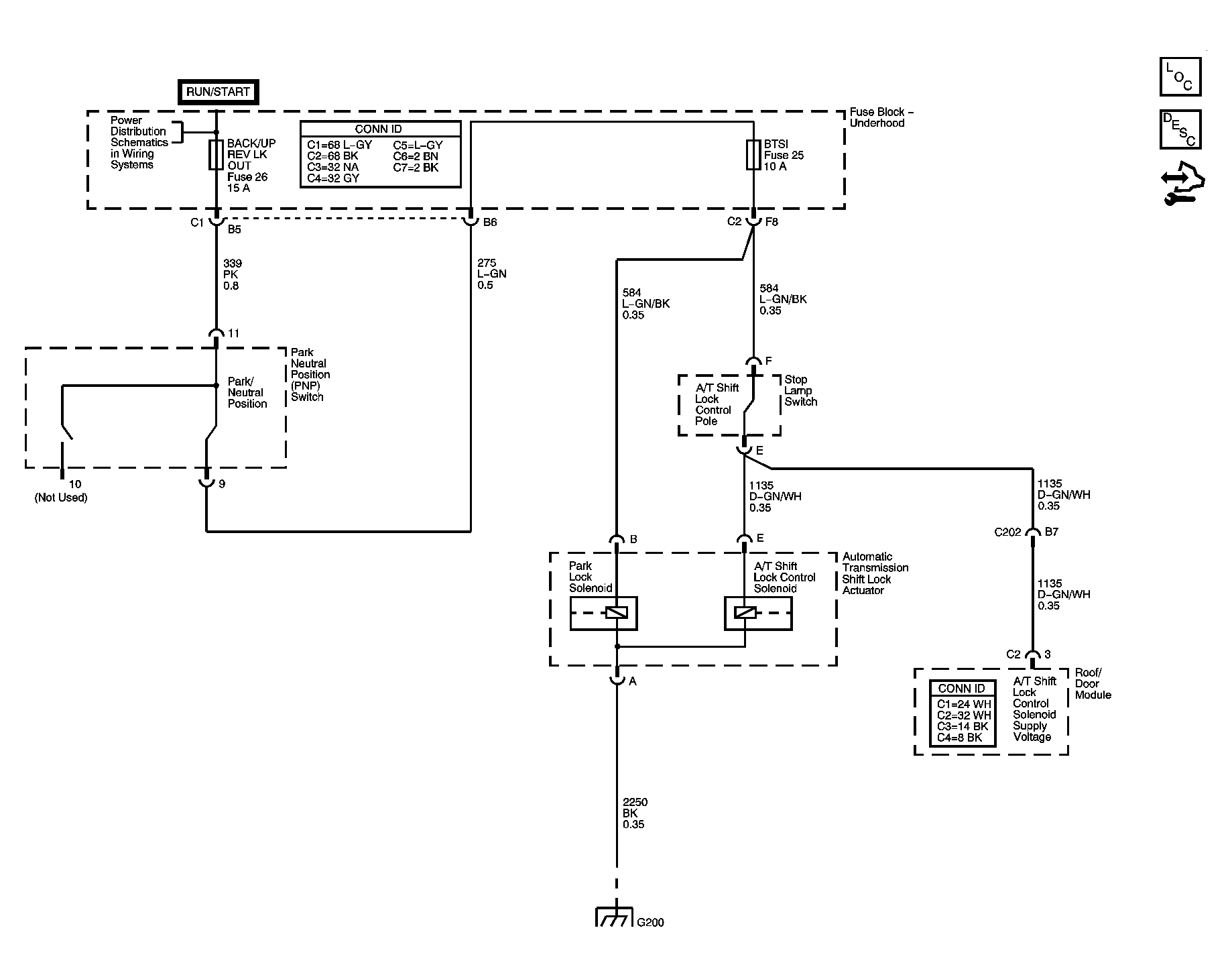

Fig 1: A/T Shift Lock Control Schematic
GM1458596Courtesy of GENERAL MOTORS CORP.
