Shift Lock Control Component Views

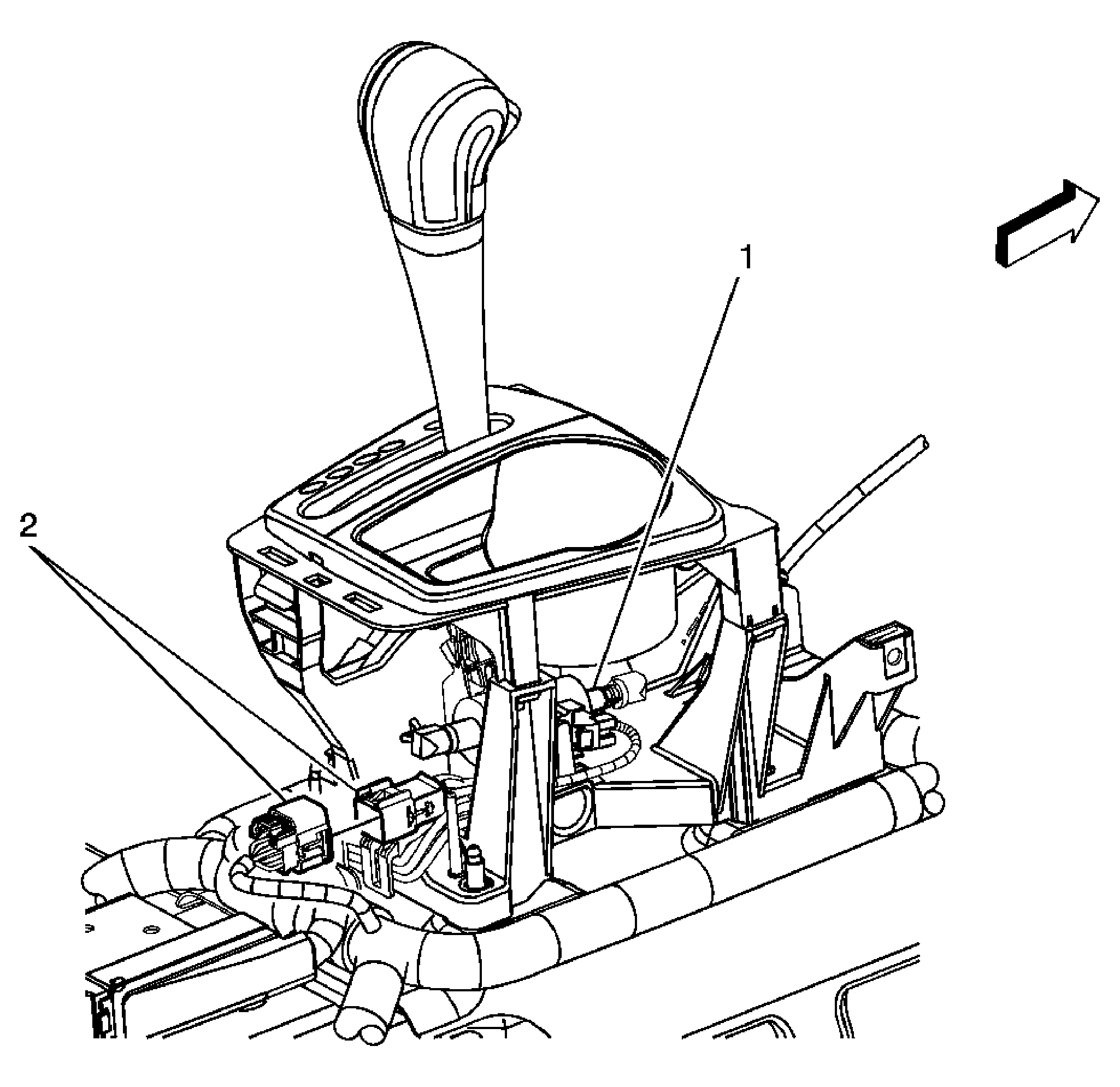

Fig 1: Identifying Automatic Transmission Shift Lock Control Components
GM1265746Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 A/T Shift Lock Control Solenoid
2 A/T Shift Lock Control Assembly, Connector
