Shift Lock Control Schematics

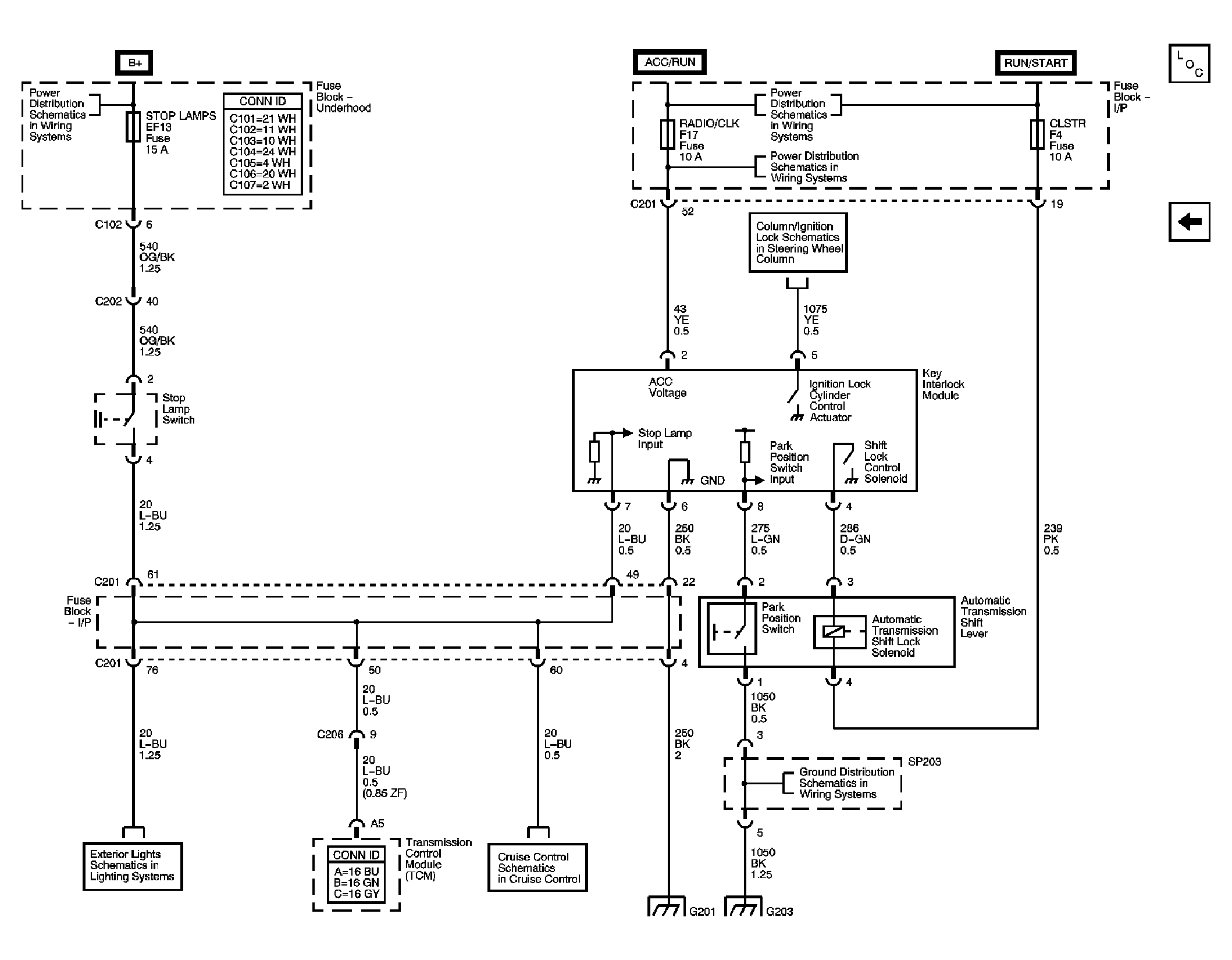

Fig 1: Automatic Transmission Shift Lock Control Schematic - With Ignition Lock Cylinder Control Actuator
GM1650856Courtesy of GENERAL MOTORS CORP.

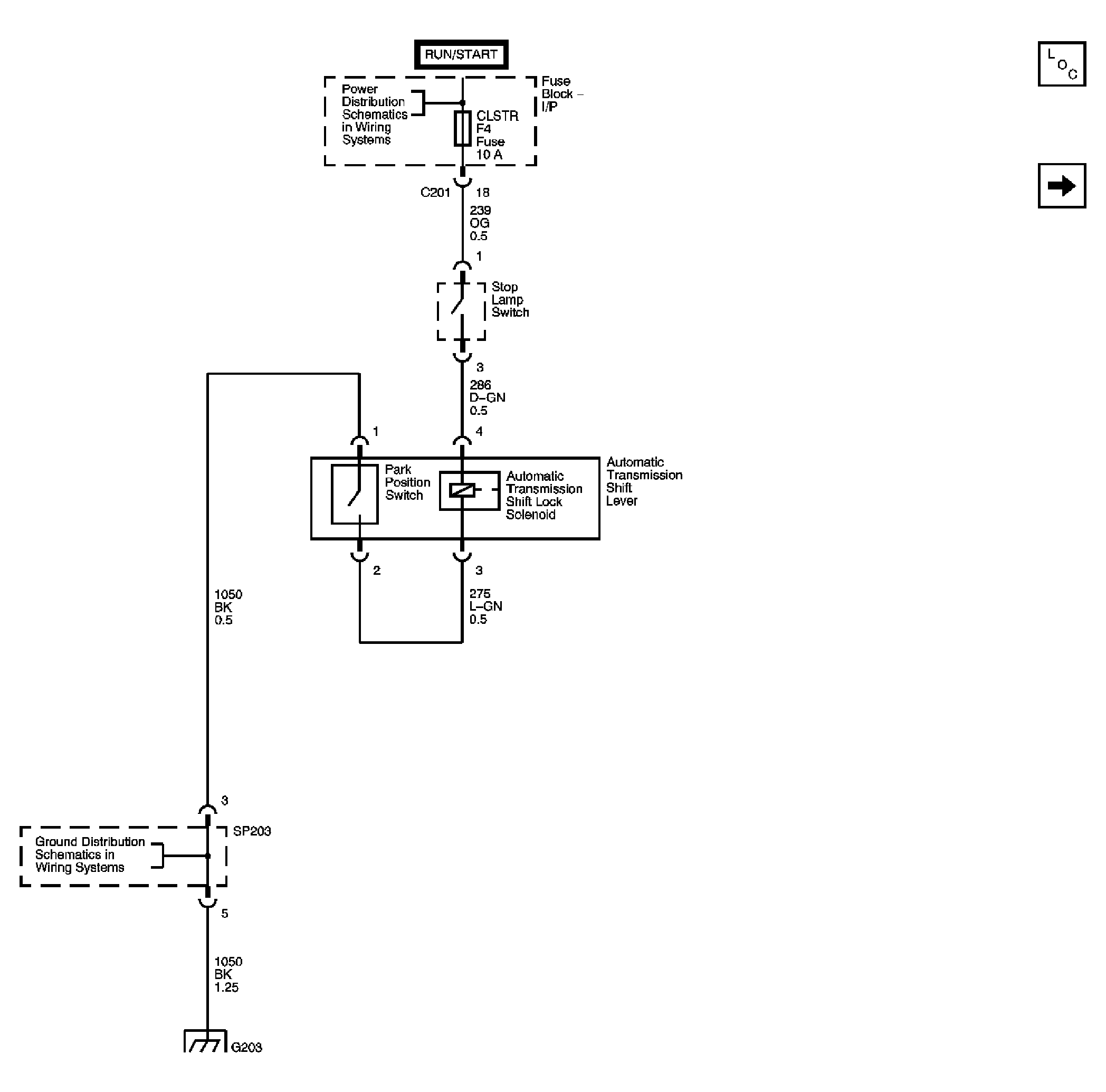

Fig 2: Automatic Transmission Shift Lock Control Schematic w/o Ignition Lock Cylinder Control Actuator
GM1376560Courtesy of GENERAL MOTORS CORP.
