Shift Lock Control Schematics

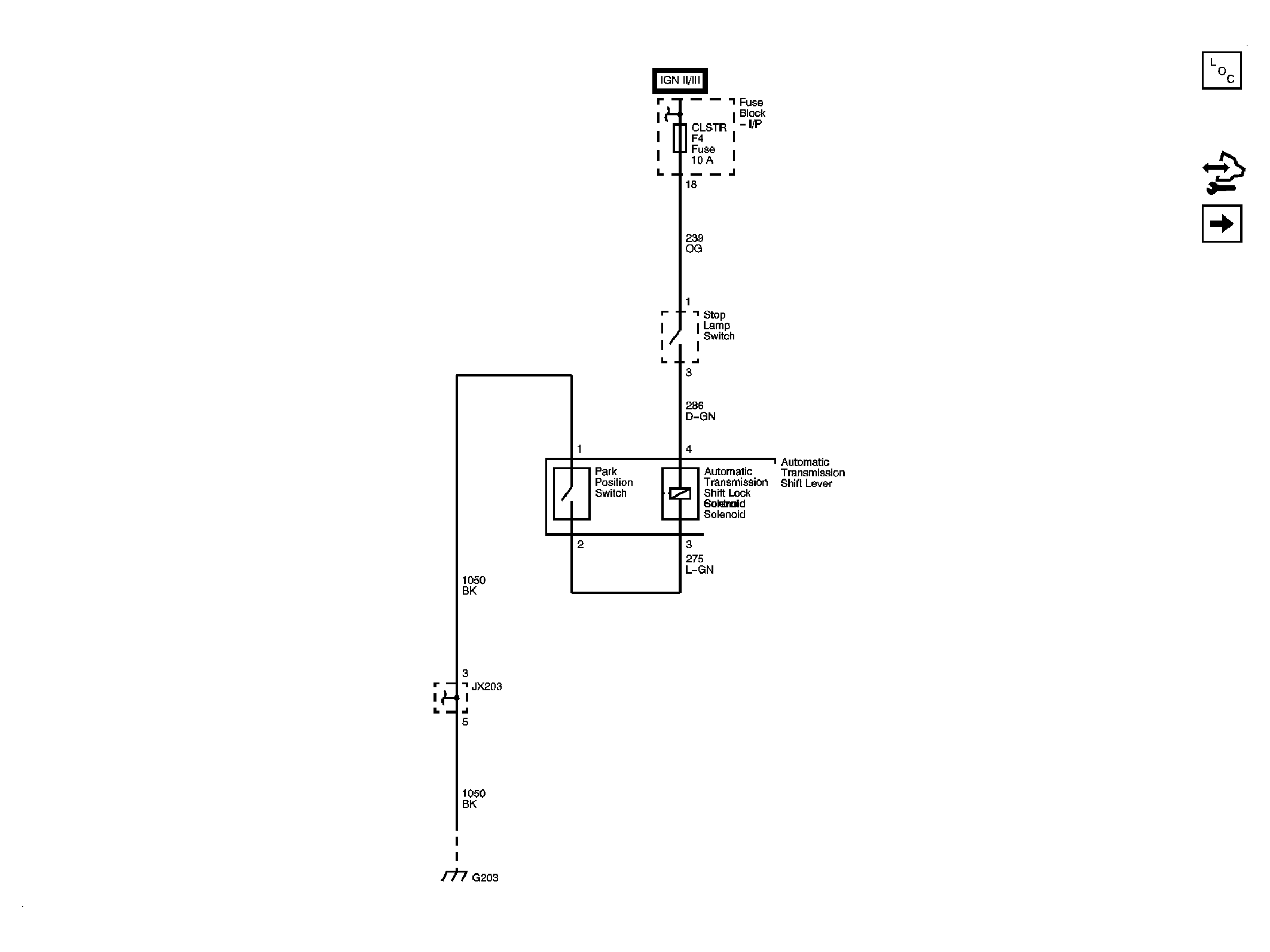

Fig 1: Automatic Transmission Shift Lock Control w/o Ignition Lock Cylinder Control Actuator Schematic
GM1962834Courtesy of GENERAL MOTORS CORP.

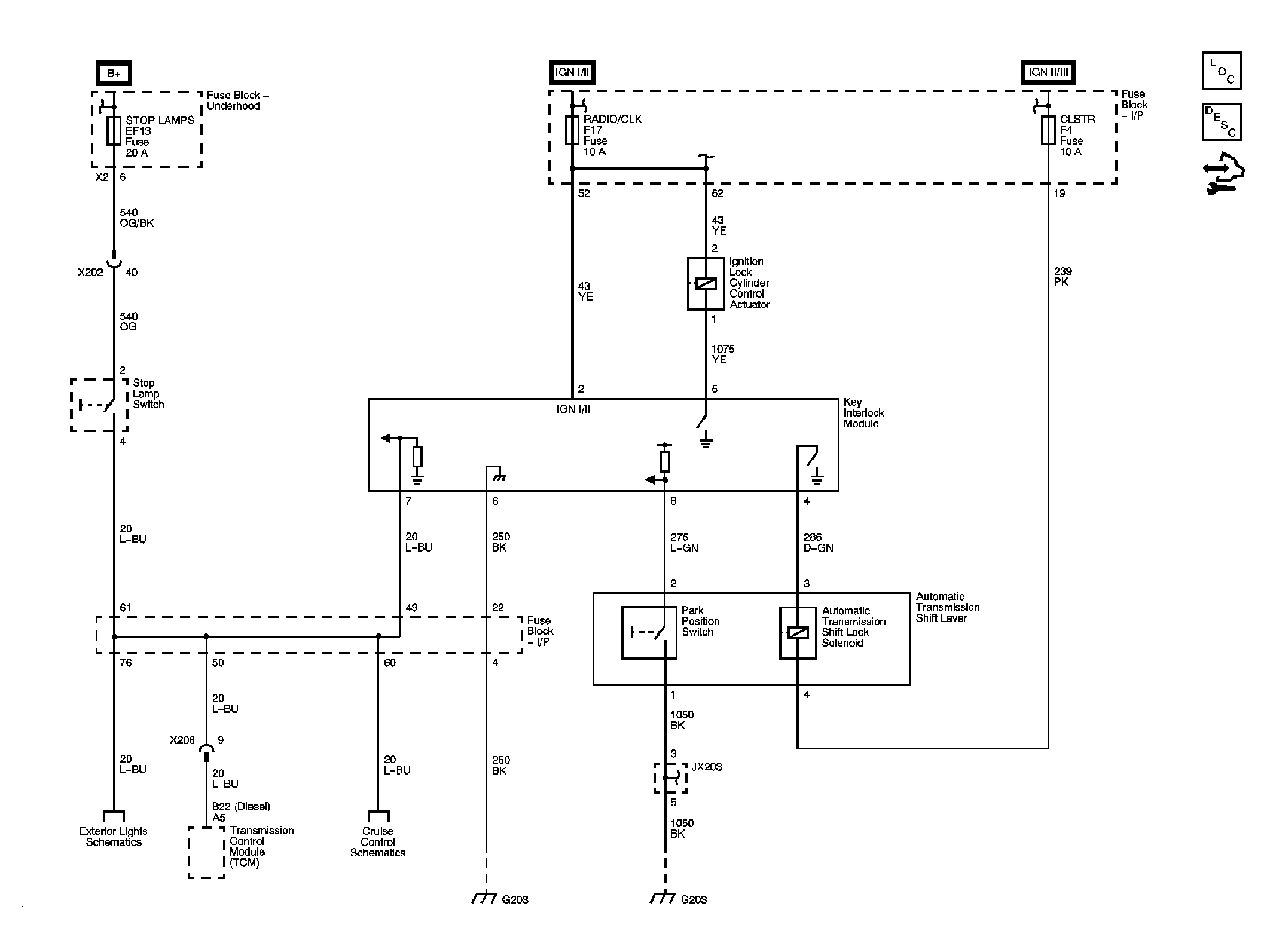

Fig 2: Automatic Transmission Shift Lock Control with Ignition Lock Cylinder Control Actuator Schematic
GM1962833Courtesy of GENERAL MOTORS CORP.
