Data Communication Schematics

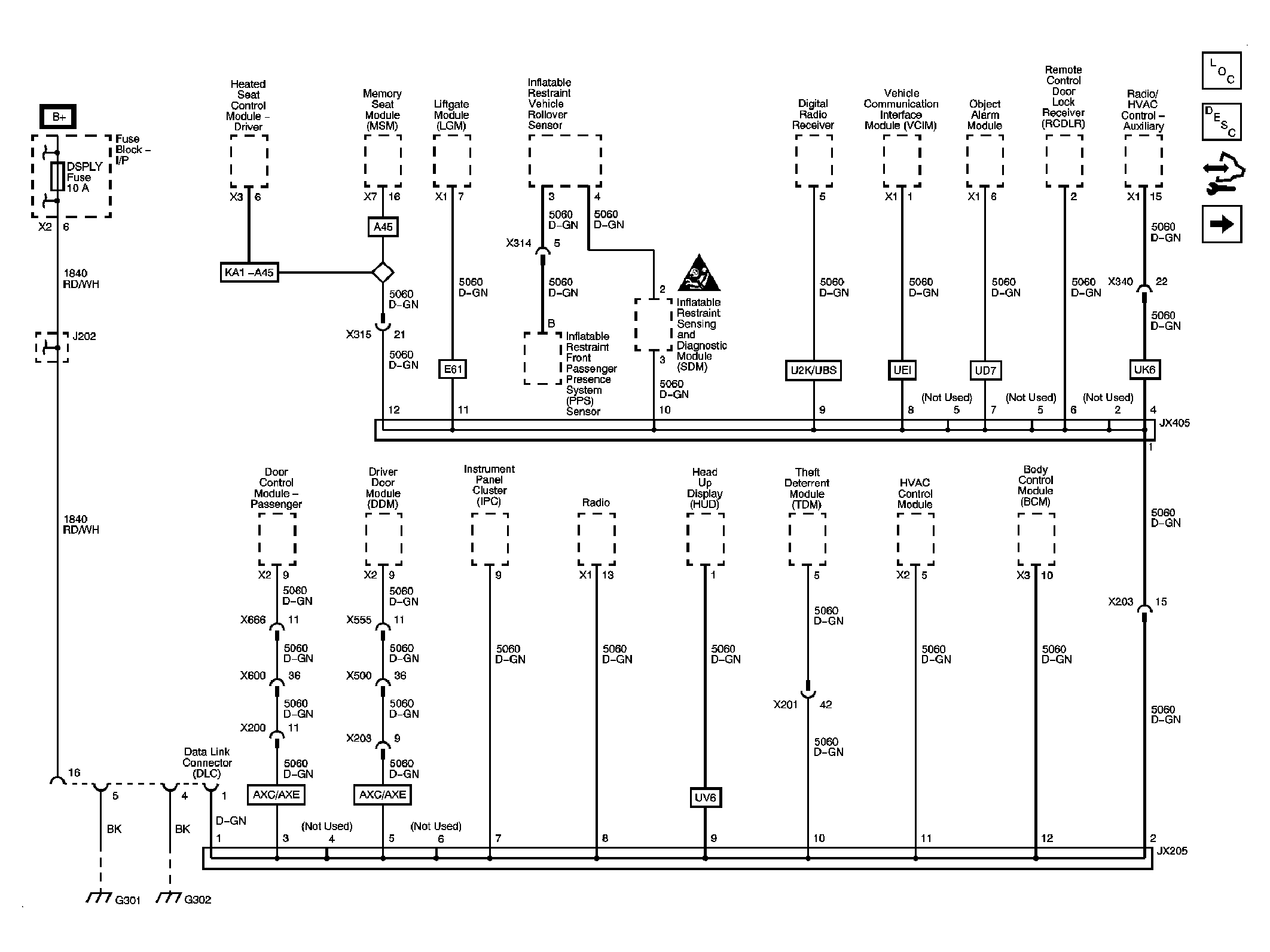

Fig 1: Low Speed GMLAN Circuit Schematic
GM2077827Courtesy of GENERAL MOTORS CORP.

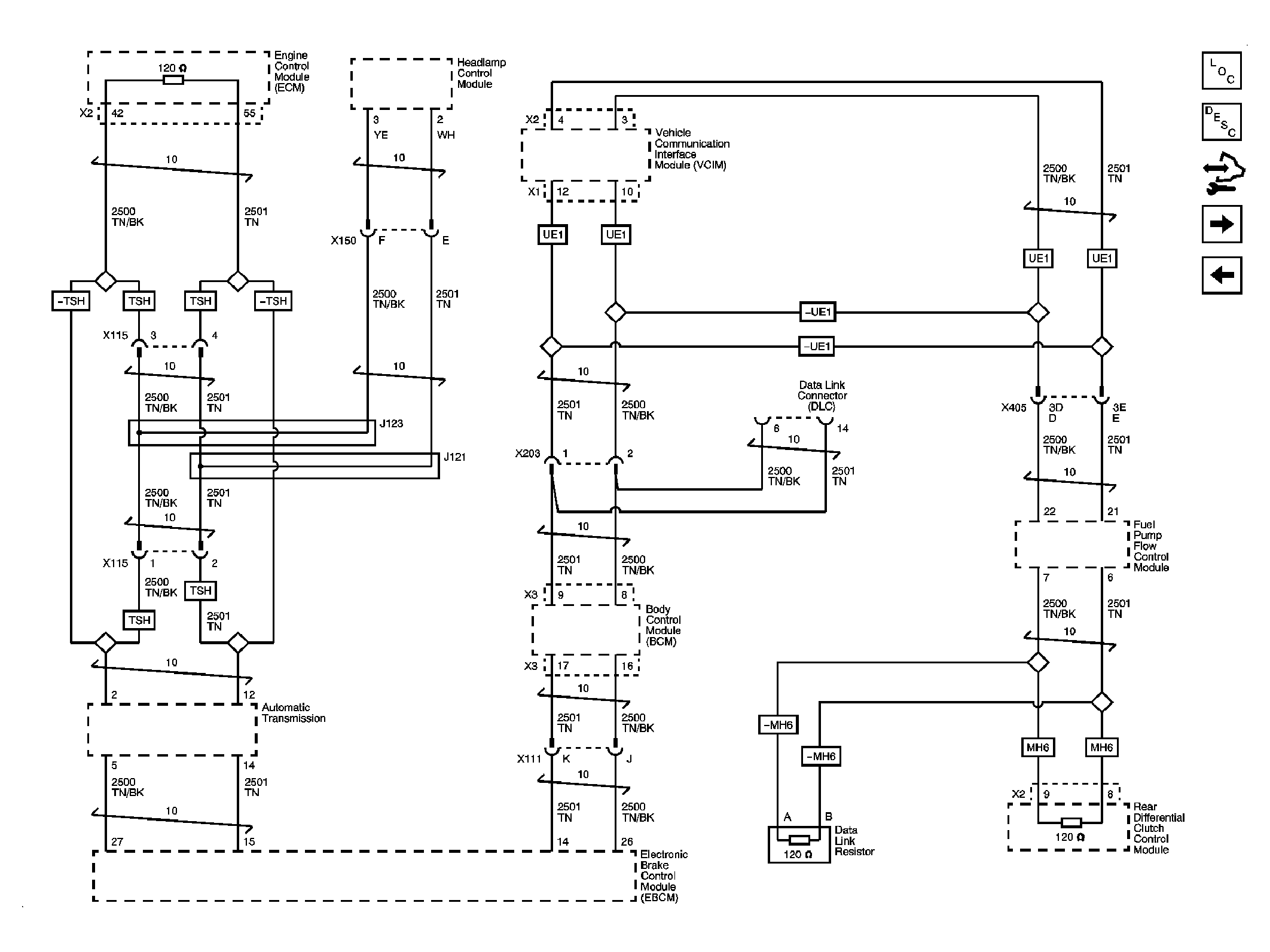

Fig 2: High Speed GMLAN Circuit Schematic
GM2077830Courtesy of GENERAL MOTORS CORP.

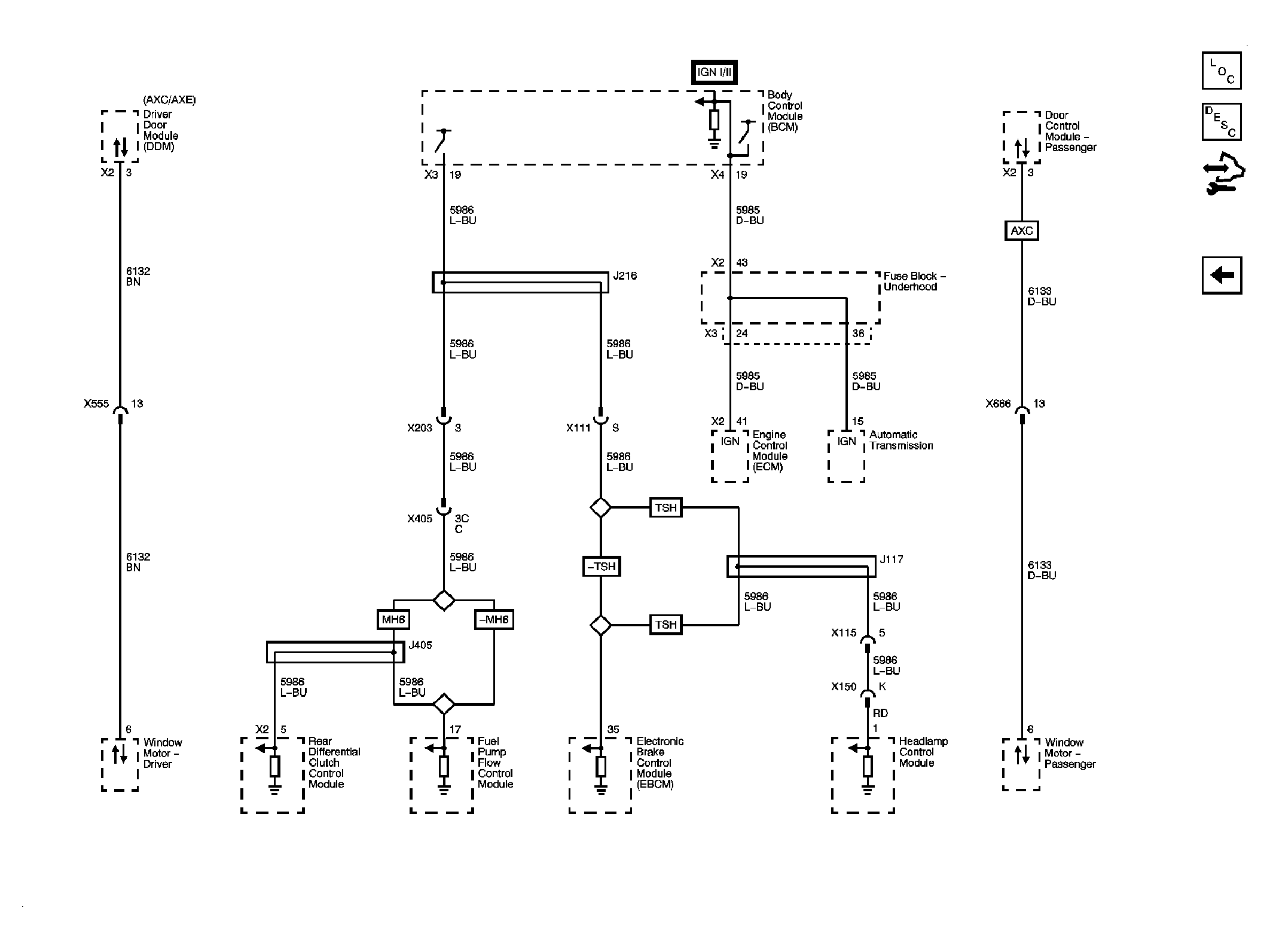

Fig 3: Communication Enable and Local Interconnect Network Circuit Schematic (LIN)
GM2077832Courtesy of GENERAL MOTORS CORP.
